Special Design Widely Used Hydraulic Cylinder Parts Straight Reducer-GR Hydraulic Fitting For Sale

Product Description

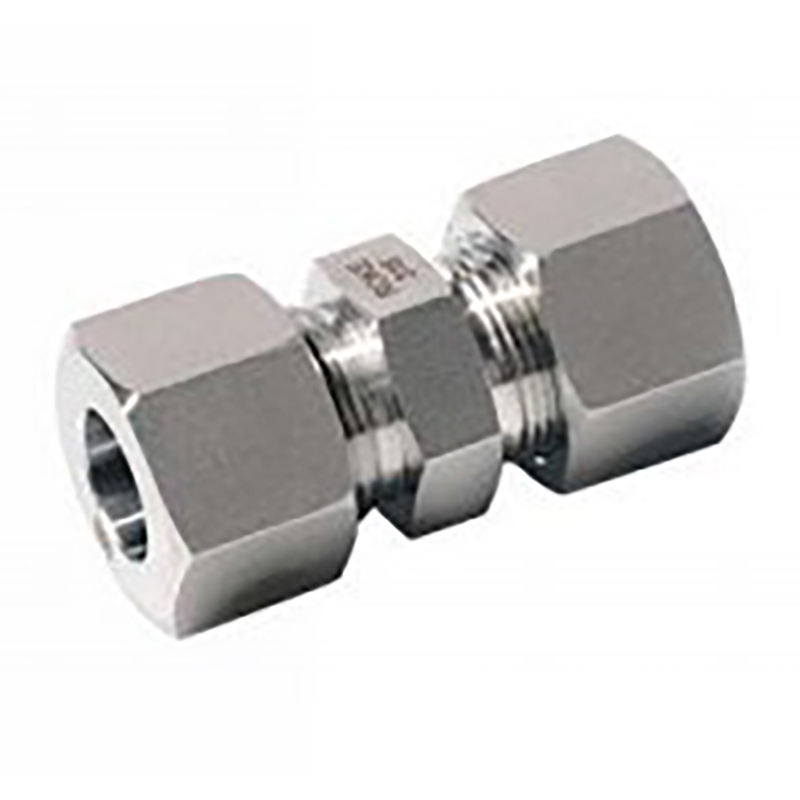

A straight reducer in the context of hydraulic fittings refers to a type of fitting that allows for the connection of hydraulic
components with different sizes or diameters. Specifically, a straight reducer hydraulic fitting is designed to join two hydraulic lines or components of different diameters in a straight alignment, reducing the size or diameter of the connection.

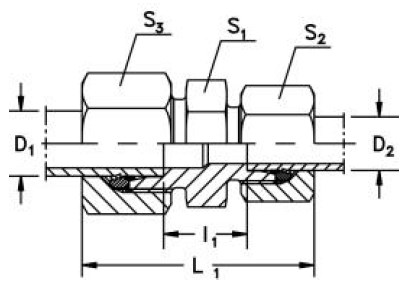

GR Part NO.	Series Working Pressure (bar/psi)	D1 Tube O.d	D2 Tube O.d	l1	L1	S1	S2	S3
-GR06/04LL	LL very light 100 bar 1450 psi	6	4	10.5	32	11	10	12
-GR08/04LL			8	4	12.5	34	12	10	14
-GR08/06LL			8	6	11	34	12	12	14
-GR08/06L	L light 315 bar 4560 psi	8	6	11	40	14	14	17
-GR10/06L			10	6	12	41	17	14	19
-GR10/08L			10	8	12	41	17	17	19
-GR12/06L			12	6	13	42	19	14	22
-GR12/08L			12	8	13	42	19	17	22
-GR12/10L			12	10	14	43	19	19	22
-GR15/10L			15	10	15	45	24	19	27
-GR15/12L			15	12	15	45	24	22	27
-GR18/10L			18	10	15.5	46	27	19	32
-GR18/12L			18	12	15.5	46	27	22	32
-GR18/15L			18	15	16.5	48	27	27	32
-GR22/12L	160 bar 2320 psi	22	12	17.5	48	32	22	36
-GR22/15L			22	15	18.5	50	32	27	36
-GR22/18L			22	18	18	50	32	32	36
-GR28/18L			28	18	19	52	41	32	41
-GR28/22L			28	22	21	54	41	36	41
-GR35/22L			35	22	21	59	46	36	50
-GR35/28L			35	28	21	59	46	41	50
-GR08/06S	S heavy 630 bar 9130 psi	8	6	18	47	17	17	19
-GR10/06S			10	6	17.5	48	19	17	22
-GR10/08S			10	8	17.5	48	19	19	22
-GR12/06S			12	6	19.5	50	22	17	24
-GR12/08S			12	8	19.5	50	22	19	24
-GR12/10S			12	10	19	51	22	22	24
-GR14/10S			14	10	20.5	54	24	22	27
-GR14/12S			14	12	20.5	54	24	24	27
-GR16/12S	400 bar 5800 psi	16	12	20	54	27	24	30
-GR16/14S			16	14	21.5	57	27	27	30
-GR20/10S			20	10	22	60	32	22	36
-GR20/12S			20	12	22	60	32	24	36
-GR20/16S			20	16	23	63	32	30	36
-GR25/16S			25	16	25.5	68	41	30	46
-GR25/20S			25	20	25.5	71	41	36	46
-GR30/20S			30	20	26	74	46	36	50
-GR30/25S			30	25	26.5	77	46	46	50
-GR38/30S	315 bar 4560 psi	38	30	29.5	87	55	50	60

Advantages of Straight Reducer - GR hydraulic fittings 1.Size Compatibility: Straight reducer fittings allow for the connection of hydraulic components or lines with different diameters. This flexibility enables you to connect hydraulic elements that have varying size requirements, facilitating compatibility between different parts of the hydraulic system. 2.Space Efficiency: Straight reducer fittings provide a compact and streamlined connection between hydraulic components. By reducing the size or diameter of the connection, they help optimize space utilization in tight or limited areas, allowing for efficient installation and routing of hydraulic lines. 3.Versatility: Straight reducer fittings can be used in a wide range of hydraulic applications, including industrial machinery, automotive systems, construction equipment, and more. Their ability to connect different-sized components makes them versatile and adaptable to various hydraulic system configurations. 4.Easy Installation: Straight reducer fittings are relatively simple to install. They typically feature threaded connections or other secure attachment mechanisms that allow for straightforward and reliable connections between hydraulic components. 5.Improved Flow Control: In some cases, using a straight reducer fitting can help regulate or control the flow of hydraulic fluid. By reducing the size of the connection, the flow rate can be adjusted or restricted as needed, depending on the specific requirements of the hydraulic system. It's important to note that the advantages of straight reducer fittings may vary depending on the specific application and system requirements. When selecting hydraulic fittings, it's crucial to consider factors such as pressure ratings, material compatibility, thread type, and adherence to industry standards to ensure proper functionality and safety within your hydraulic system.

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube： 1/2˚ angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45˚ is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.
