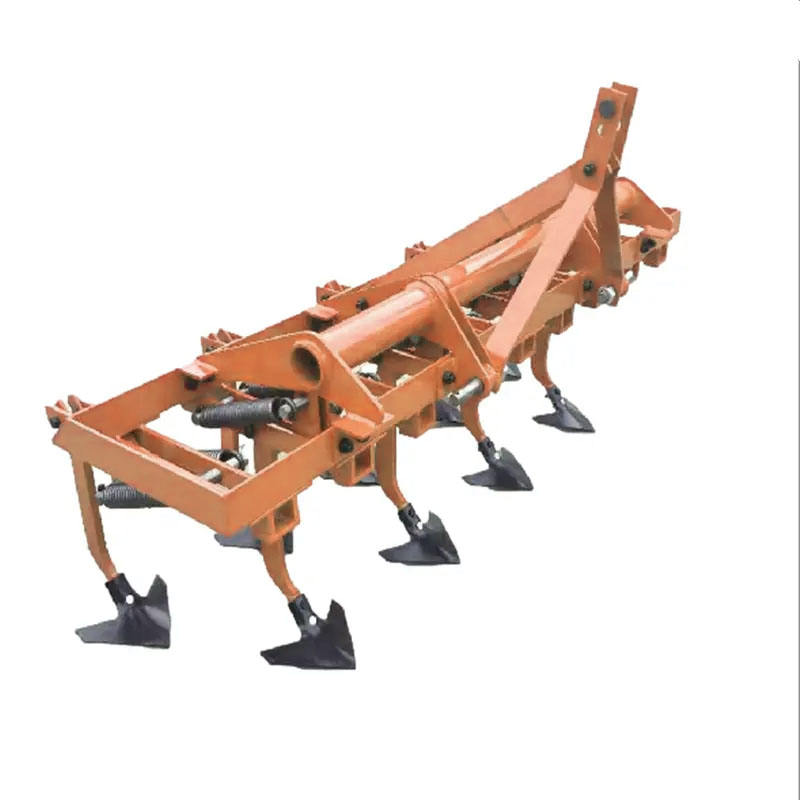

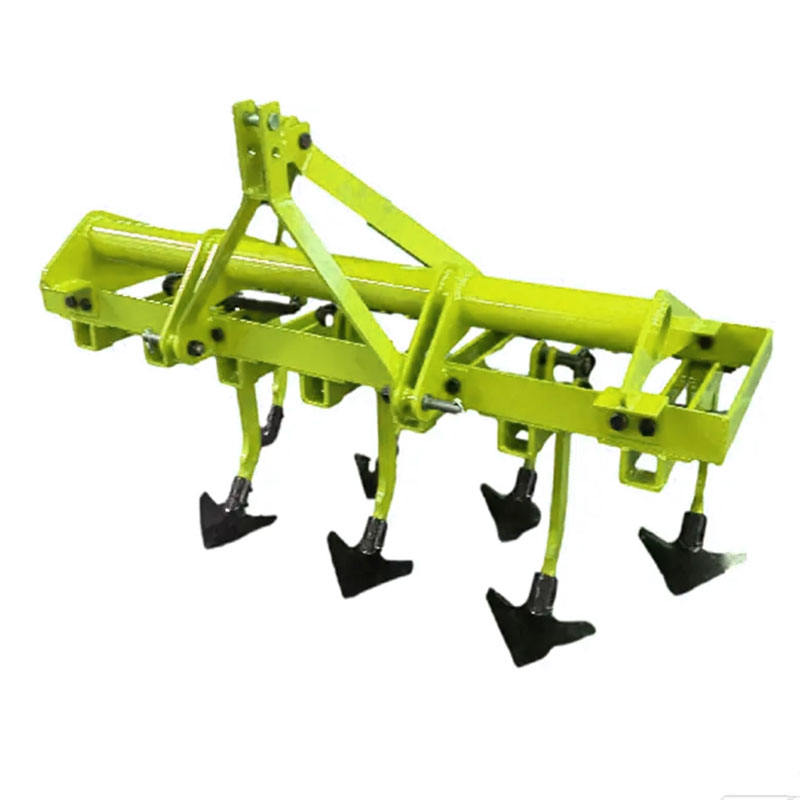

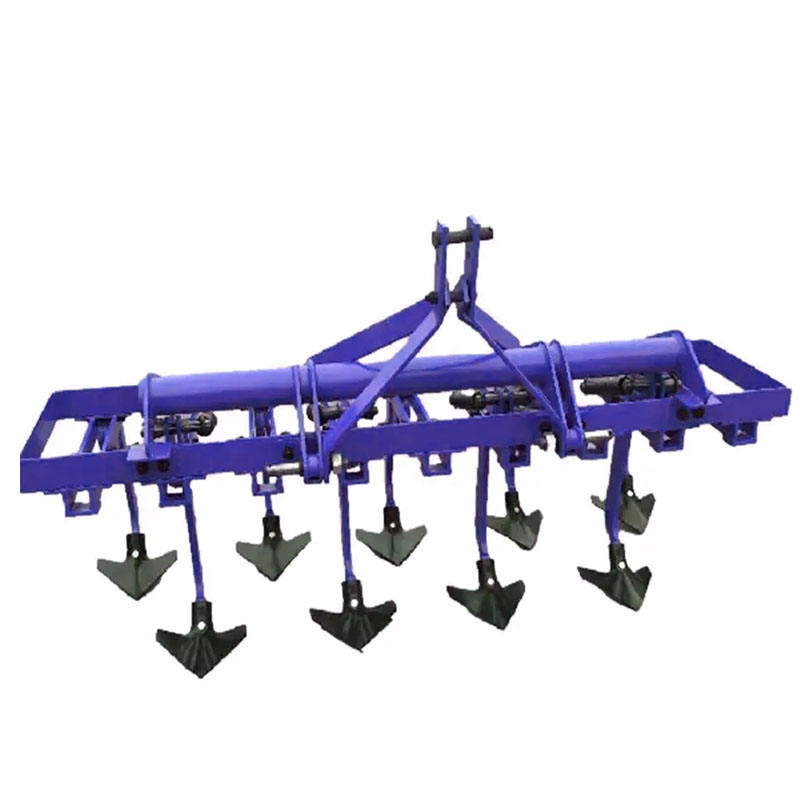

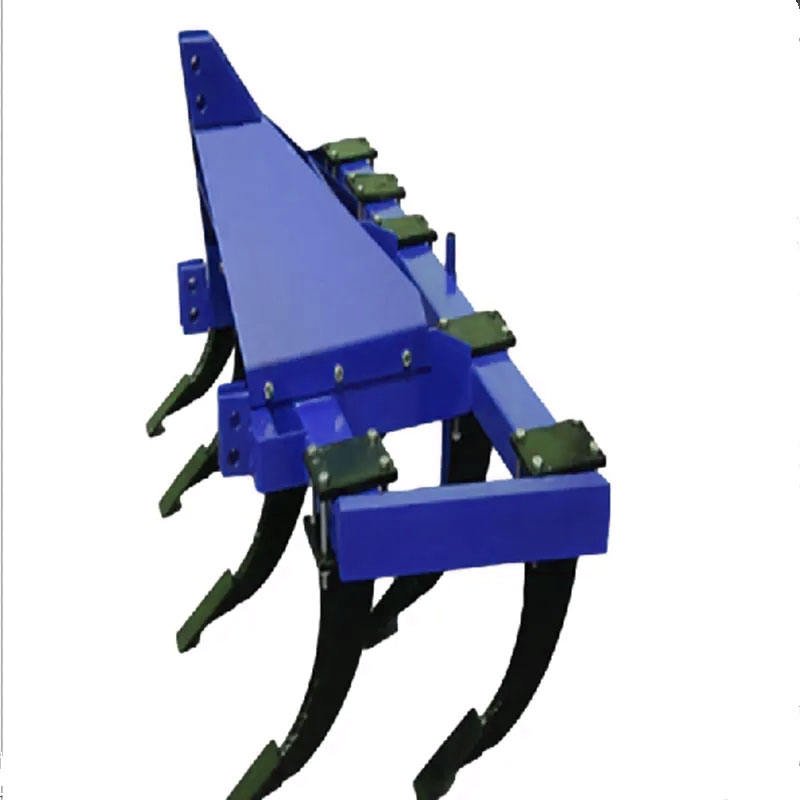

Spring Tine Cultivator
<Spring Tine Cultivator> Product description :
As a novel farm 9 tines spring tines spring cultivator developed by our company according to the demand of the international market, 3ZT dual-farm 9 tines spring tines spring cultivator adopts a dual-spring straining device.
During the working process of the farm 9 tines spring tines spring cultivator, the gunnel can automatically kick up when coming across an obstructer and can restore to the original working status after getting over the obstructer. In this way, the gunnel is under protection.
The machine has the advantages of convenient row pitch adjustment and easy depth adjustment.
The machine is suitable for intertillage ripping operation in corn, cotton, beans and peas fields.
<Spring Tine Cultivator> Product specification :
Model | Unit | 3ZT-1.0 | 3ZT-1.4 | 3ZT-1.8 | 3ZT-2.2 |
Working width | M | 1.0 | 1.4 | 1.8 | 2.2 |
No. of tines |
| 5 | 7 | 9 | 11 |
Working depth | Mm | 100~200 | |||
Total weight | Kg | 260 | 300 | 350 | 420 |
Matched power | Hp | 25 | 30~40 | 40~50 | 50~70 |

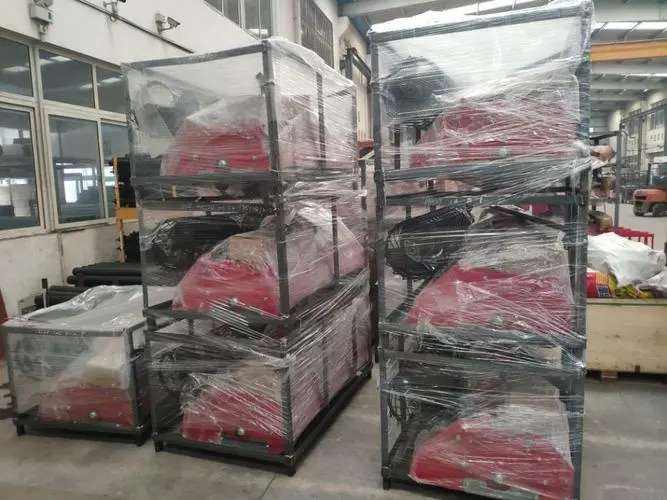

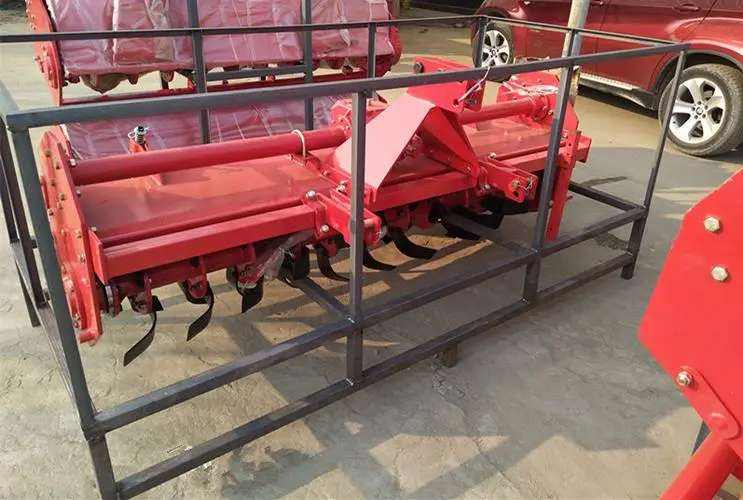

\<Spring Tine Cultivator> Product package :
1. Frame will be packed in pallet
2. Cultivator all parts expect frame can put into iron case .
