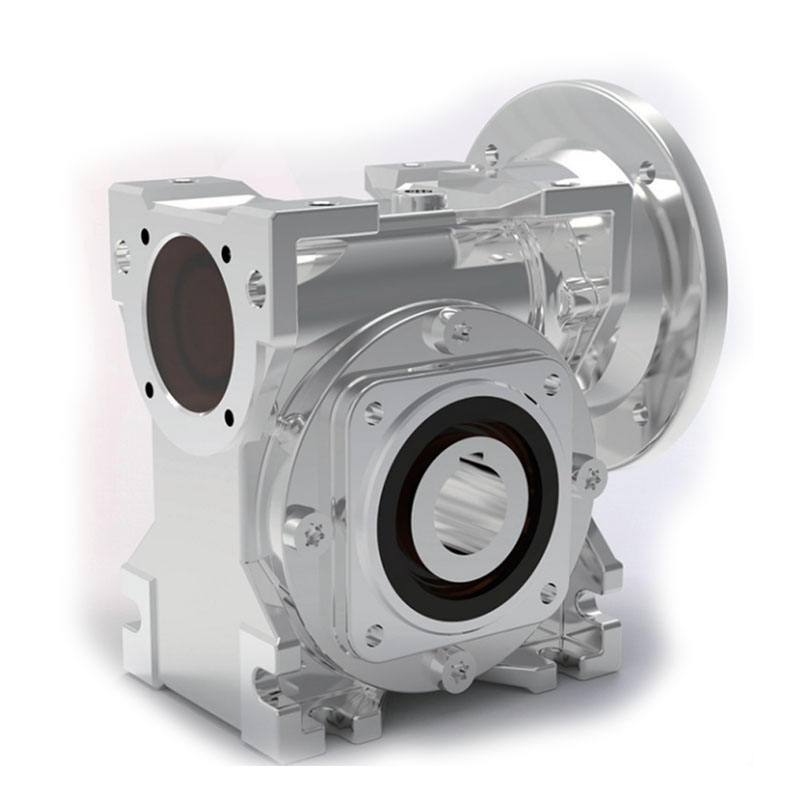

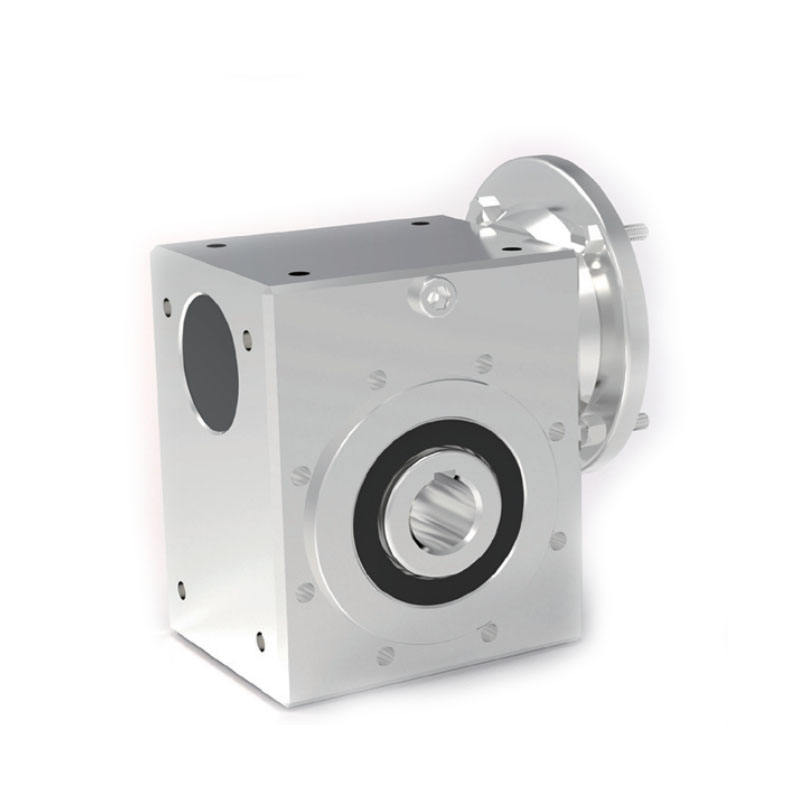

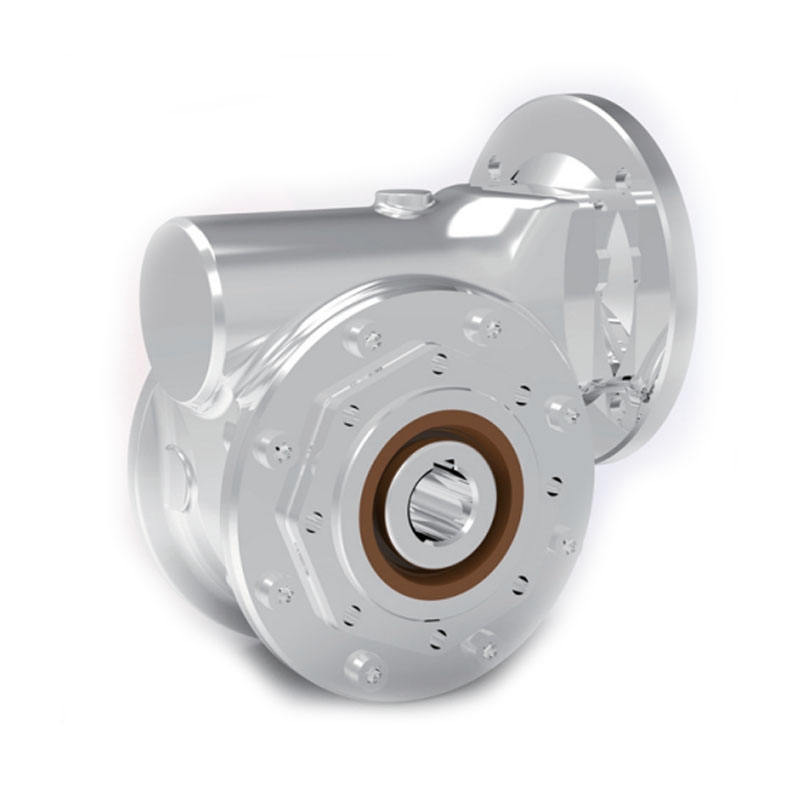

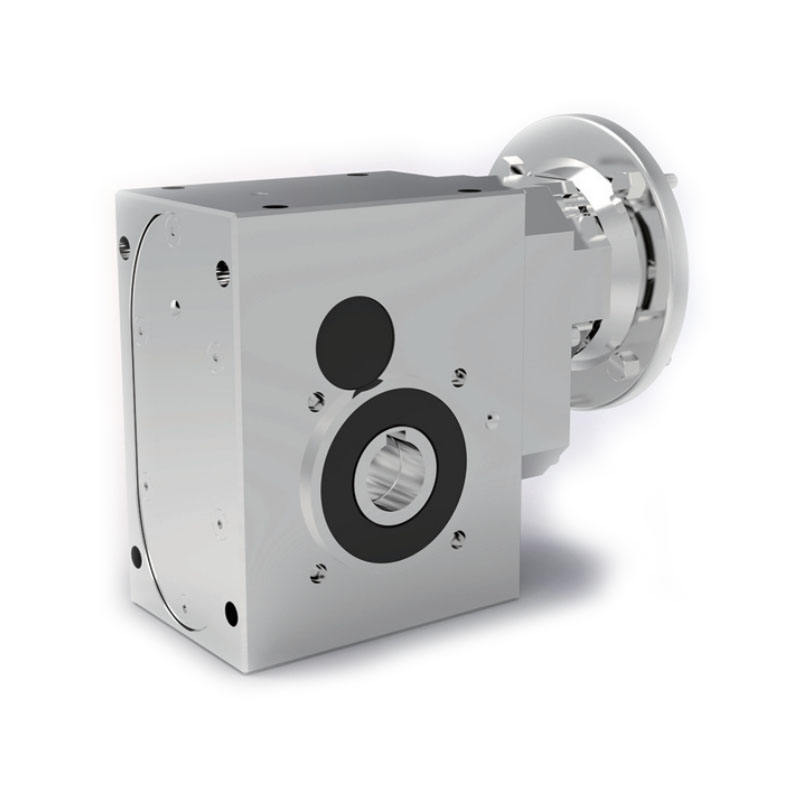

SSVF63 Stainless Steel 304 Speed Gear Reducer Worm Gearbox

Raydafon Group's SSVF63 Stainless Steel 304 Speed Gear Reducer Worm Gearbox is a durable, corrosion-resistant solution for industrial automation, offering smooth power transmission and high efficiency. Ideal for engineers and manufacturers, it enhances productivity and reliability in harsh environments, setting itself apart with premium 304 stainless steel construction for long-lasting performance.
Send Inquiry
Product Description

SSVF63 Stainless Steel 304 Speed Gear Reducer Worm Gearbox

Product Description
SSVF63 Stainless Steel 304 Speed Gear Reducer Worm Gearbox
SSVF series stainless steel reduction
The box body is designed according to the VF worm gear reducer.304 precisely produced.compact structure, wheel core made of 304 material, worm gear 12-2 tin bronze, Fullysynthetic worm gear oil, the surface of the reducer is electrolytically polished, Theadvantages are corrosion-resistant, easy to clean, and has various speed ratios. Thereare currently three models:40,50, and 63.

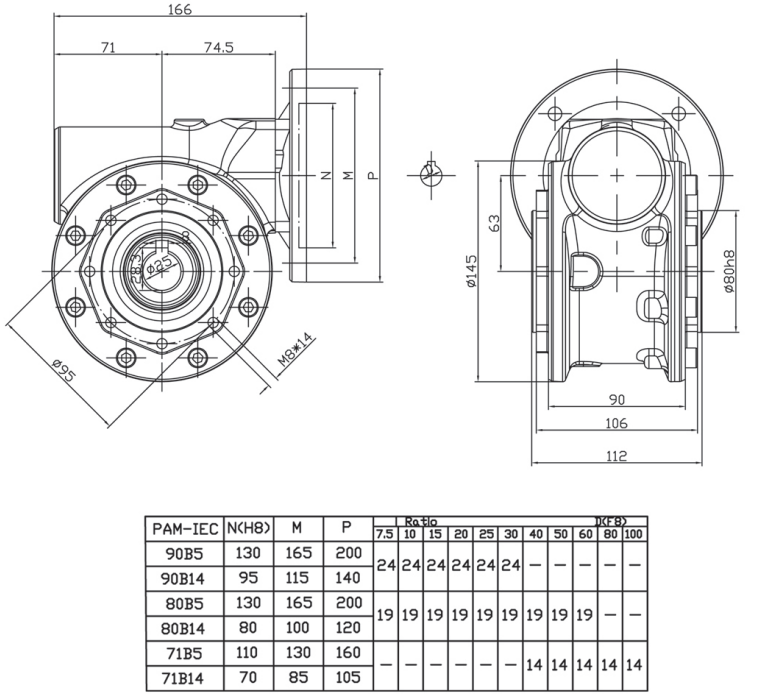

Installation Dimensions
Click here to contact us for more discounts！
SSVF63 Stainless Steel 304 Speed Gear Reducer Worm Gearbox

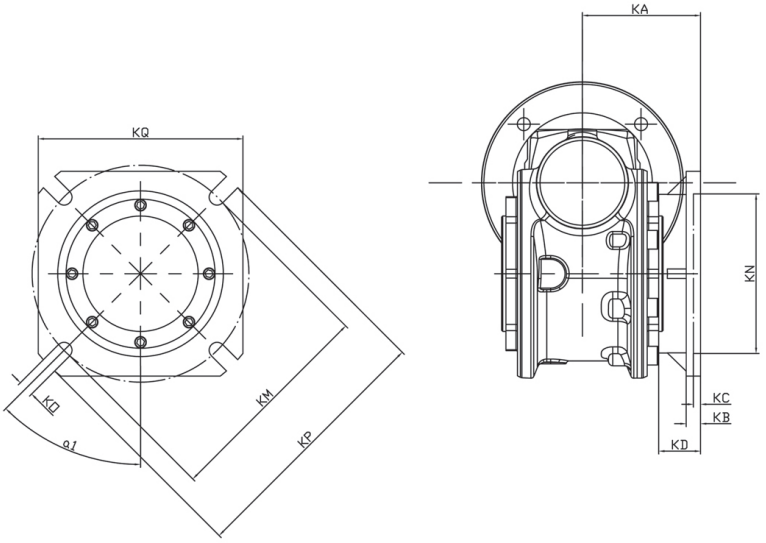

Ouput Flange Dimensions
SSVF63 Stainless Steel 304 Speed Gear Reducer Worm Gearbox

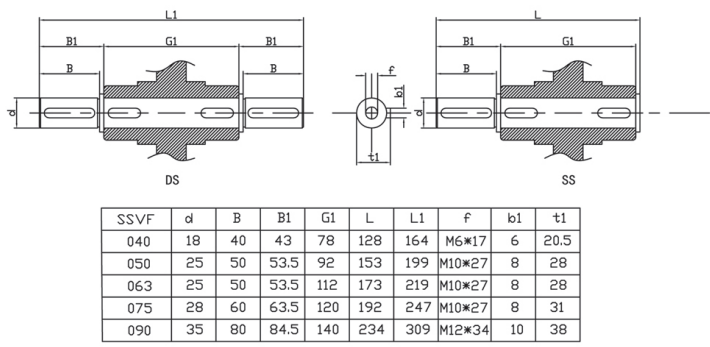

0utput Shafts
SSVF63 Stainless Steel 304 Speed Gear Reducer Worm Gearbox

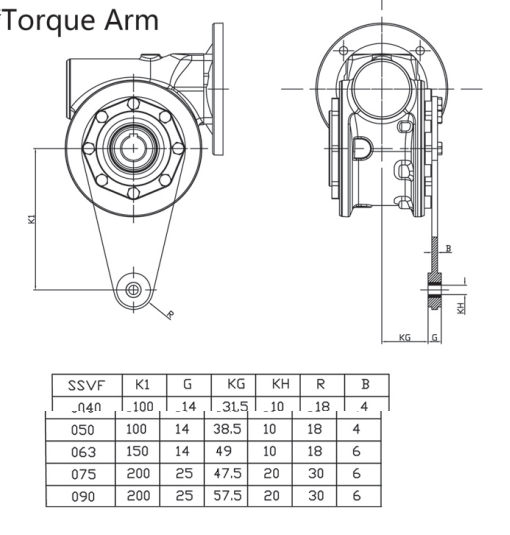

Torque Arm
SSVF63 Stainless Steel 304 Speed Gear Reducer Worm Gearbox
Click here for more model types！
SSVF63 Stainless Steel 304 Speed Gear Reducer Worm Gearbox
Hot Tags: SSVF63, Stainless Steel 304 Speed Gear Reducer, Worm Gearbox, Raydafon, Raydafon Power, China Supplier, Manufacturer, Factory
