Product Description

rv Series Worm Gear & Worm Wheel And Worm Gearbox And Motor Reducer Replace Of Nmrv

Video Description

00:00/00:00
Product Description

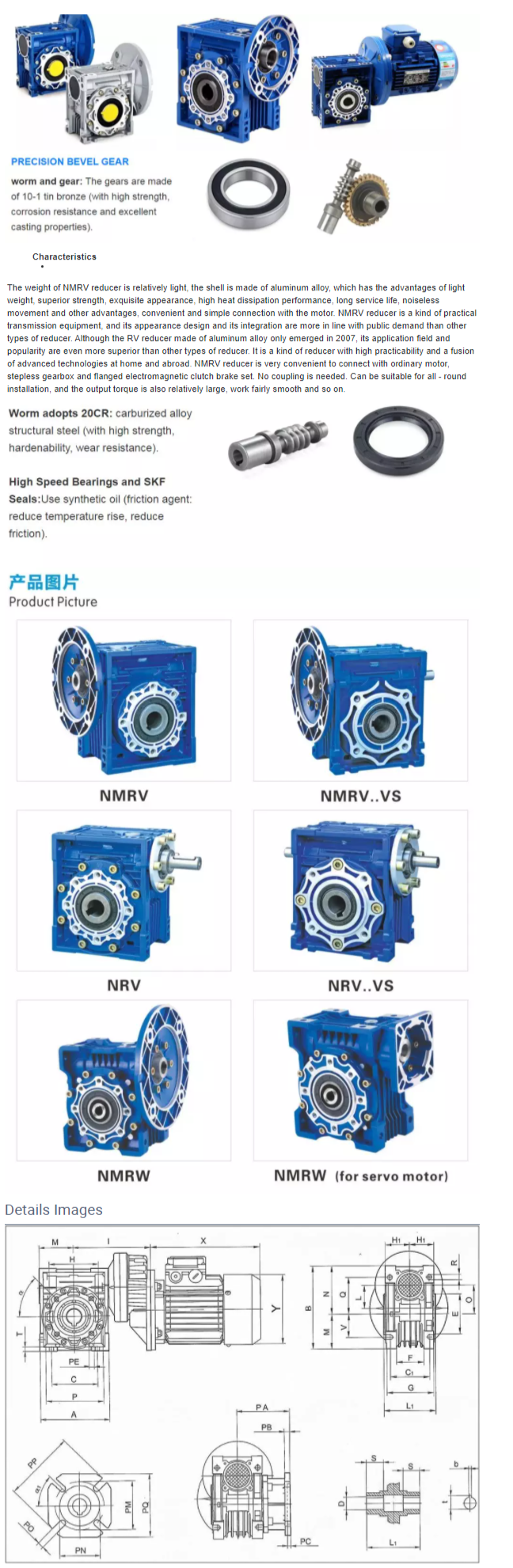

NMRV gearbox
NMRV reducer is a new type of reducer, also known as RV reducer. "NMRV" is a general term, it refers to the aluminum reducer, the
world has been used to aluminum reducer called "NMRV reducer". The main components are oil seal, oil plug, worm gear box, ball
bearing, output shaft, worm wheel, worm, output shaft, motor disk (flange), output shaft cover, hexagon socket head screw, double
round key, gasket, etc. BHADE reducer, one of NMRV series, has single flange input, flange output or double shaft output.

Benefits of Worm Gearbox / Reducer
1.Unique housing design will distinguish you from other competitors.
2.Multiple choice for oil seal.
3.The dimensions can be customized according to customer's requirements.
Type
Worm Gear Speed Reducer / Gearbox / Reductor
Model

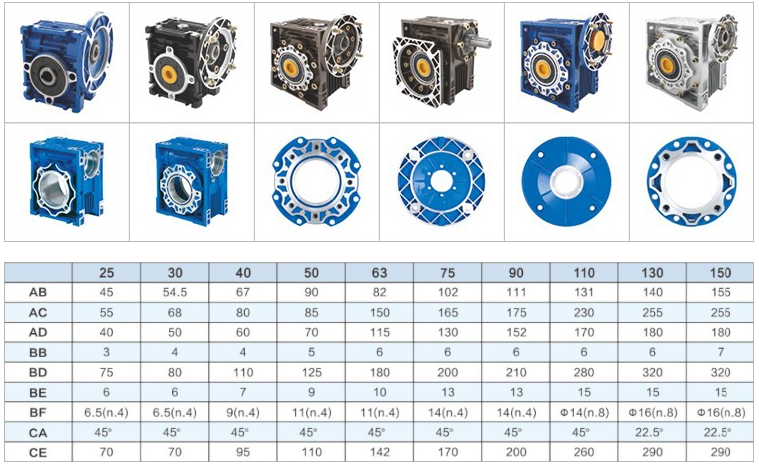

WMRV 25/30/40/50/63/75/90/110/130/150/185
Color
Customized Color
Packing
Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
Usage
Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.
Flange
IEC standard flange or customized dimensions
Housing Material
Aluminum&Cast iron
Size
11 sizes(WMRV25~WMRV185)
Power
0.06~22 KW
Nominal torque
≤2548 N.m
Ratio
5~100
rv Series Worm Gear & Worm Wheel And Worm Gearbox And Motor Reducer Replace Of Nmrv
rv Series Worm Gear & Worm Wheel And Worm Gearbox And Motor Reducer Replace Of Nmrv
