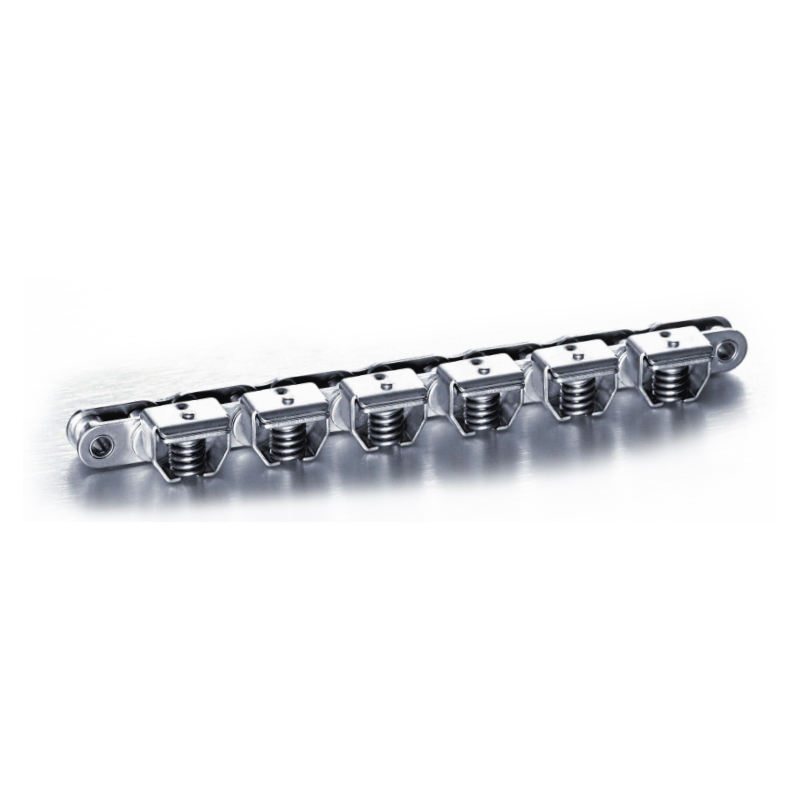

Standard Frame Clamp Type 10B1GC-B Stainless Steel Gripper Roller Chains for Form Fill and Vacuum Seal Wrapping Applications

Raydafon Guoup's Standard Frame Clamp Type 10B1GC-B Stainless Steel Gripper Roller Chains deliver reliable performance for form fill and vacuum seal wrapping applications. Crafted from durable stainless steel, these chains ensure smooth operation, enhanced grip, and longevity, ideal for industries like food packaging. Experience reduced downtime and improved efficiency, backed by superior design that outshines competitors. Trust in quality and innovation for your sealing needs.
Send Inquiry
Product Description

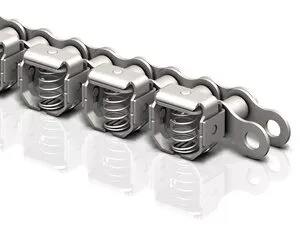

Standard Frame Clamp Type 10B1GC-B Stainless Steel Gripper Roller Chains for Form Fill and Vacuum Seal Wrapping Applications

Product Description
Standard Frame Clamp Type 10B1GC-B Stainless Steel Gripper Roller Chains for Form Fill and Vacuum Seal Wrapping Applications
08B
1
GC
A
SS
Chain Size
Strand
Gripper Chain
Type
Base Chain Material

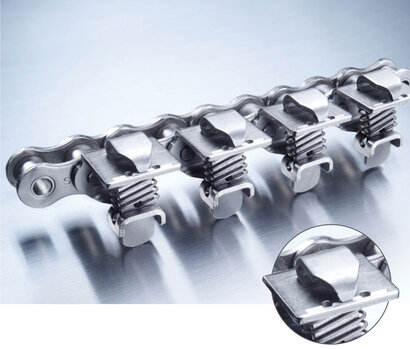

The Standard Frame Clamp (Type B)
allows for a combination of vertical movement and horizontal rotation to ensure easy film engagement and scrap release.
Standard Frame Clamp Type 10B1GC-B Stainless Steel Gripper Roller Chains for Form Fill and Vacuum Seal Wrapping Applications
Code
DIN / ISO
Material
Pitch
Inside Width
Roller Dia.
Clamp Force
Tensile Strength
Base Chain
Clamp
Spring
P mm
b1 Max
mm
d1 Max
mm
Q-C
N
Q Min
kN
10B1GC-B
10B-1
SS
SS
SS
15.875
9.65
10.16
70
18.5
10B-1
NP
SS
SS
15.875
9.65
10.16
70
22.4
With more than 20 years experience of stainless steel chains production, we are becoming one of the leading
manufacturers in China. After continuous study and investment, we now have almost all popular Gripper Chain
models. Those high-performanced chains are widely welcomed by both OEM and after-market, domestic and
overseas customers.
Standard Frame Clamp Type 10B1GC-B Stainless Steel Gripper Roller Chains for Form Fill and Vacuum Seal Wrapping Applications

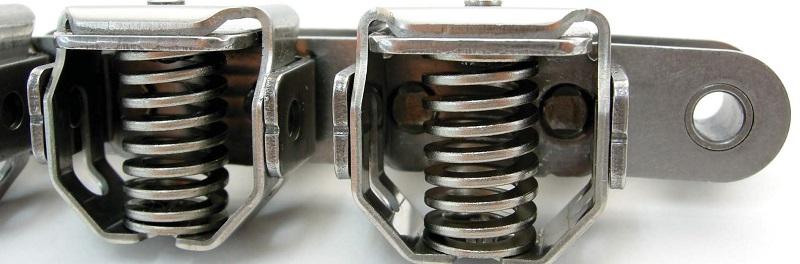

Gripper Chain Features

1.Gripper Chains with Base Chains available both in Nickel Plated and Stainless Steel, for excellent corrosion
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.
Applications
Standard Frame Clamp Type 10B1GC-B Stainless Steel Gripper Roller Chains for Form Fill and Vacuum Seal Wrapping Applications
Standard Frame Clamp Type 10B1GC-B Stainless Steel Gripper Roller Chains for Form Fill and Vacuum Seal Wrapping Applications

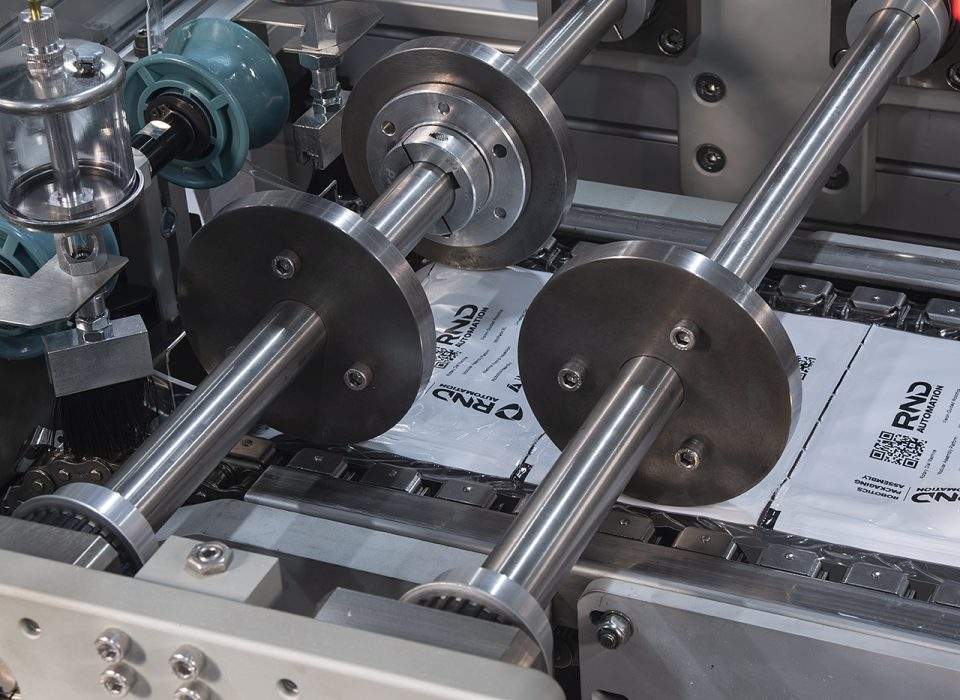

Gripper chains are widely used in various industries for Form, Fill and Vacuum Seal wrapping applications

--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.
For more types，Please click here！
We provide chain matching sprockets with various specifications, which can be customized according to your drawings
Standard Frame Clamp Type 10B1GC-B Stainless Steel Gripper Roller Chains for Form Fill and Vacuum Seal Wrapping Applications
