Product Description

Strong Rigidity CNC Lathe VMC1160B Machine Tool Metal Cutting Vertical Machining Center with 3 Axis

Products Description

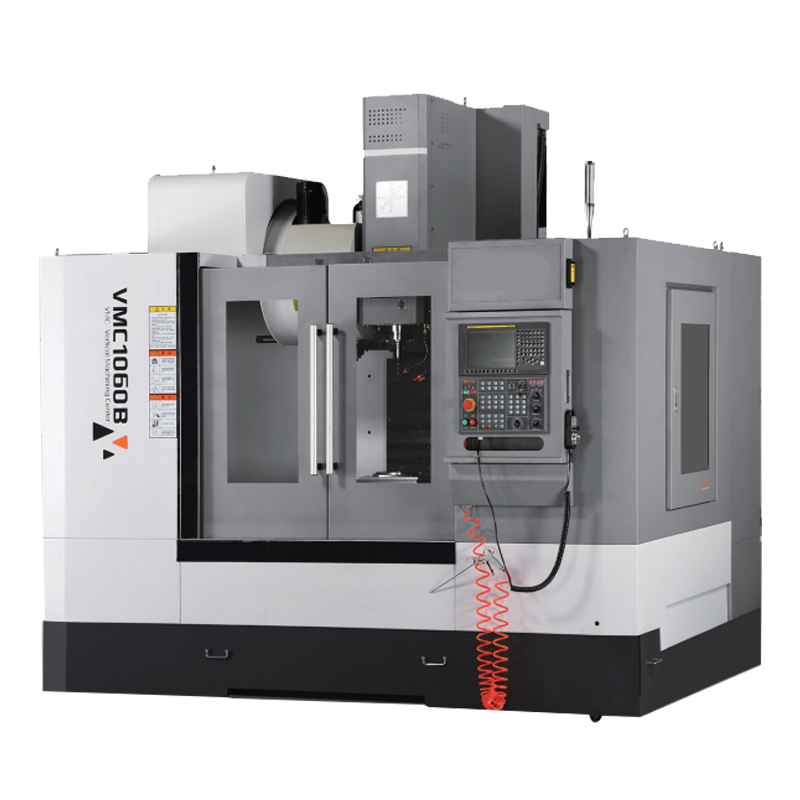

VMC1160B Strong Rigidity and High productivity Vertical Machining Center

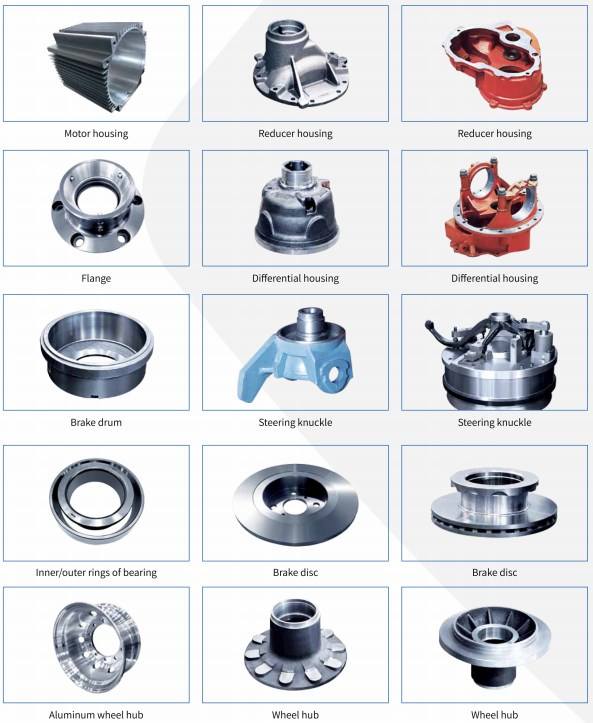

VMC1160B vertical machining center can achieve milling, drilling, expanding, boring, reaming, tapping and other processes. It is mainly used in mechanical processing industries such as , mining, automotive, molds, instruments and meters, and can be used to process various high-precision, multi process, and complex shaped parts. Suitable for small and medium-sized batch, multi variety production, and can also enter automatic assembly line production. The three-axis adopts a rolling line rail and large span design, ensuring long-lasting accuracy. The X, Y, and Z axis servo motors are directly connected to high-precision ball screws through gapless elastic couplings, reducing intermediate links and achieving gapless transmission. Each axis is paired with imported precision angular contact screw special bearings, and the ball screws are precisely pre stretched, with flexible feeding, accurate positioning, and high transmission accuracy.

Item	Unit	VMC850P	VMC1000P	VMC1060B	VMC1160B
Worktable
Worktable size	mm	500x1000	520x1200	610×1200	610×1300
T-slot （N×W×D）	mm	5x18x100	5x18x100	5x18x100	5x18x100
Travel
Axis travel （X/Y/Z)	mm	850/500/550	1000/520/535	1000/620/630	1100/610/630
Machining range
Distance from spindle center to column front	mm	582	582	667	667
Distance from spindle end to work table	mm	100~650	80~615	110~740	110~740
Machine dimension
L×W×H	mm	2460x2355x2860	2600x2355x2860	2850x2500x2820	3000x2500x2750
Machine weight
Max. load bearing of worktable	kg	500	500	800	1000
Machine weight	kg	5500	5800	6800	7000
Spindle
Spindle hole taper		BT40	BT40	BT40	BT40
Spindle power	Kw	11/15	11/15	11/15	11/15
Max. spindle speed	rpm	8000/10000	8000/10000	8000	8000
Feed
Max. feed speed	mm/min	10000	10000	10000	10000
Rapid feed speed (X/Y/Z)	m/min	48/48/32	48/48/32	36/36/30	36/36/30
Tool Magazine
Tool magazine capacity	T	24	24	24	24
Maximum allowable length of cutter	mm	300	300	300	300
Tool change time（T-T）	s	2.5	2.5	2.5	2.5
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	mm	0.008	0.008	0.010	0.010
Re-positioning accuracy(X/Y/Z)	mm	0.005	0.005	0.005	0.005

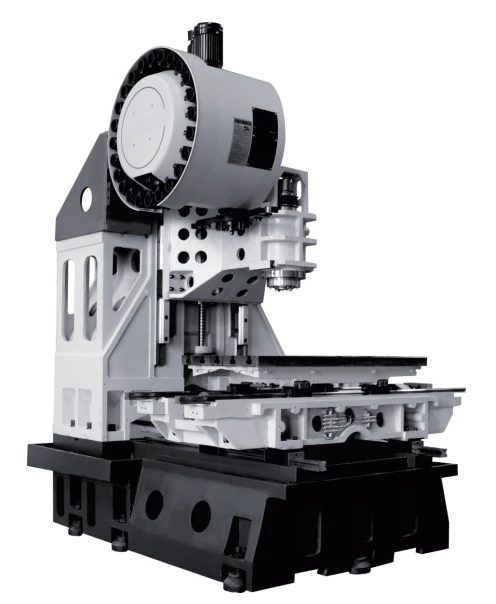

Machine structure :

---The contact ratio between spindle case and column increased to ensure spindle rigidity.
---1100mm wide machine body span and optimum supporting design can meet with fast feed of X and Y axis.
---Big size of “pyramid” column and with closed inner cavity to ensure low center but high rigidity support of Z axis.

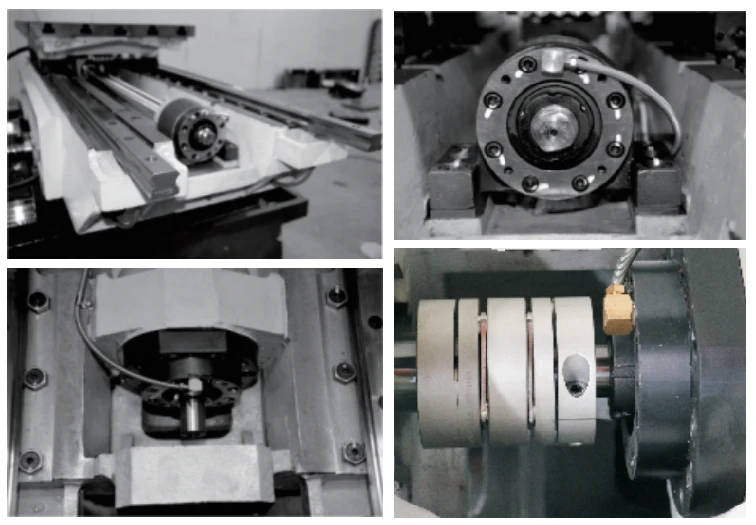

Preloaded and double anchored ball screw :

---Servo motor directly coupled ball screw.
---All the ball screws, linear guideway, bearings are well lubricated in time and ration.
---Y/Z axis adopt 45mm linear guideway while X axis adopts 35mm which make the rapid feed speed reach 48/48/32m/min.
---In order to eliminate thermal growth and increase accuracy, all axes are driven by high precision double anchored ballscrews. Also 5 rank high precision angular contacted bearing installed aside the ball screw and make pre-tension.

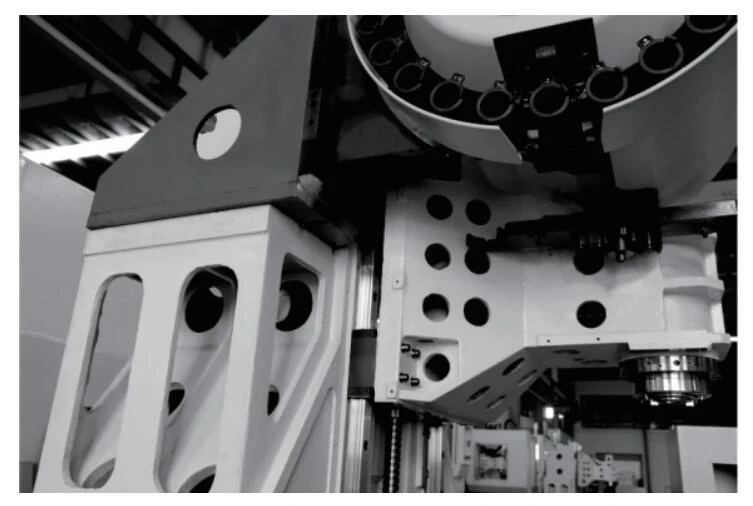

Shoulder carrying tool magazine :

Shoulder carrying tool magazine can ensure Z axis geometric accuracy and perfect stability, rigidity and the minimum deformation when column loaded with tool magazine weight.

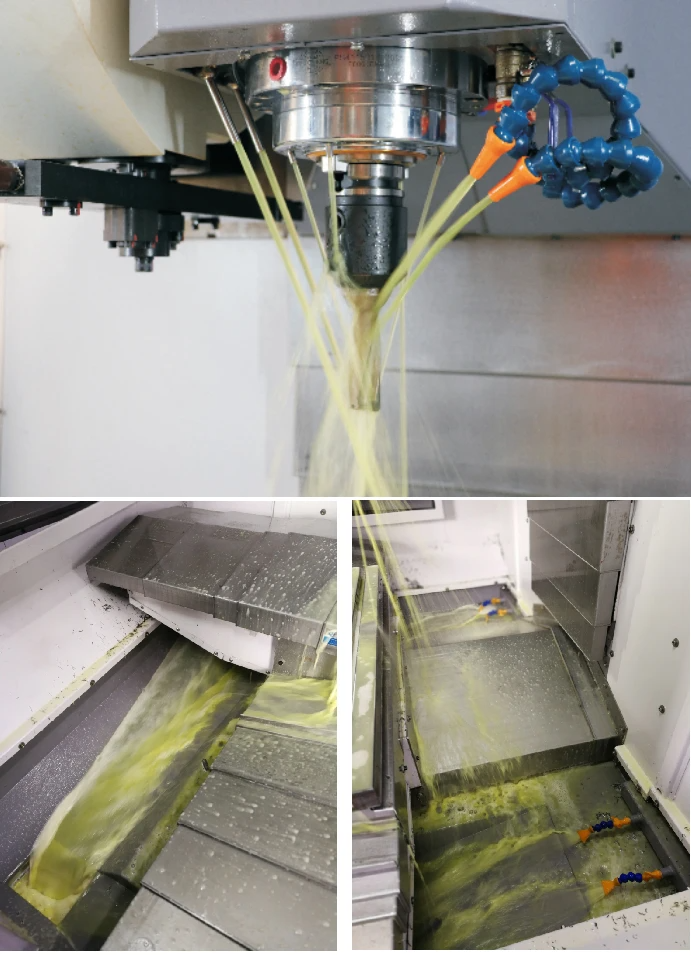

Large flow coolant fluid :

---Labyrinth style cover design to protect machine from scraps and cutting fluid.
----Standard equipped with inner side flushing system to remove scraps efficiently.

Application

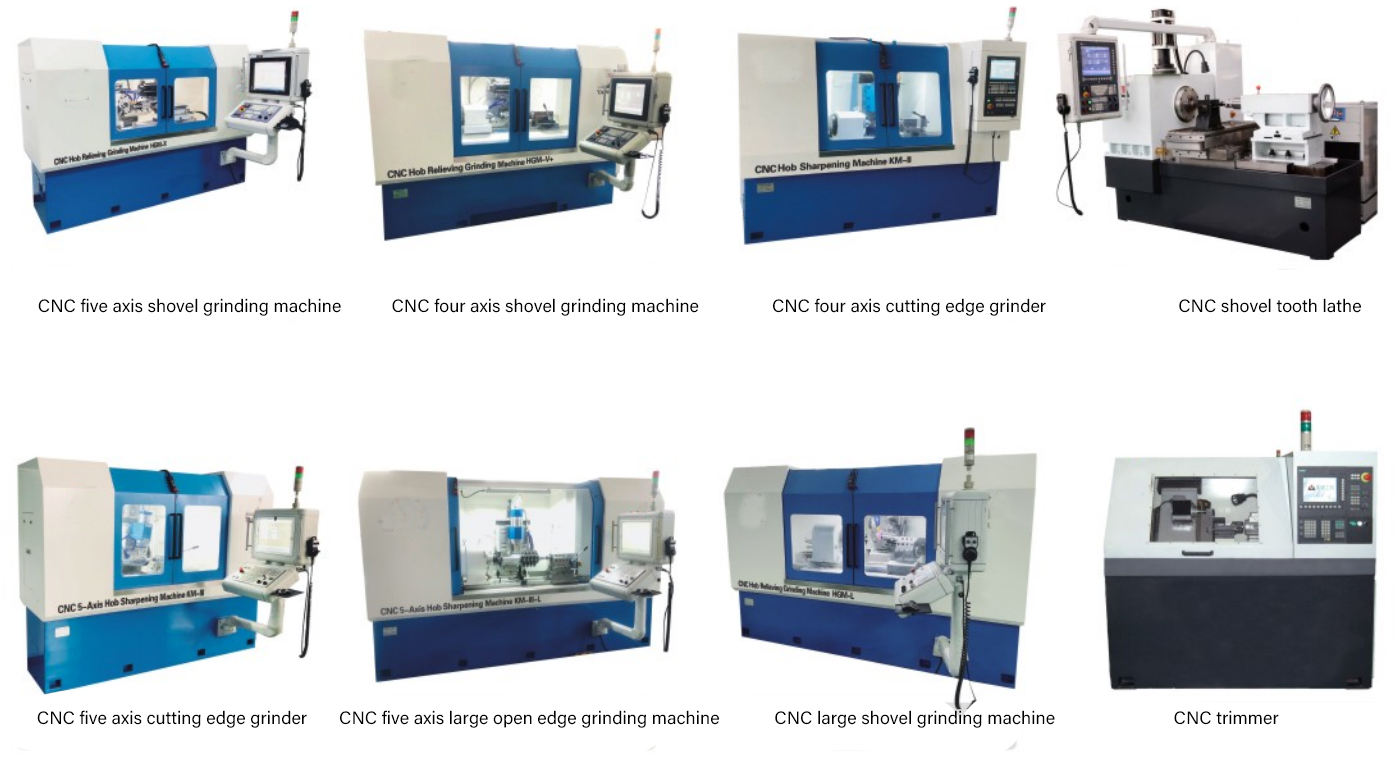

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
