Product Description

SWF Axial Flow Mixed Flow Fan for Ventilation Pressurized Air Supply in Hotels Restaurants Malls

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

Product Description

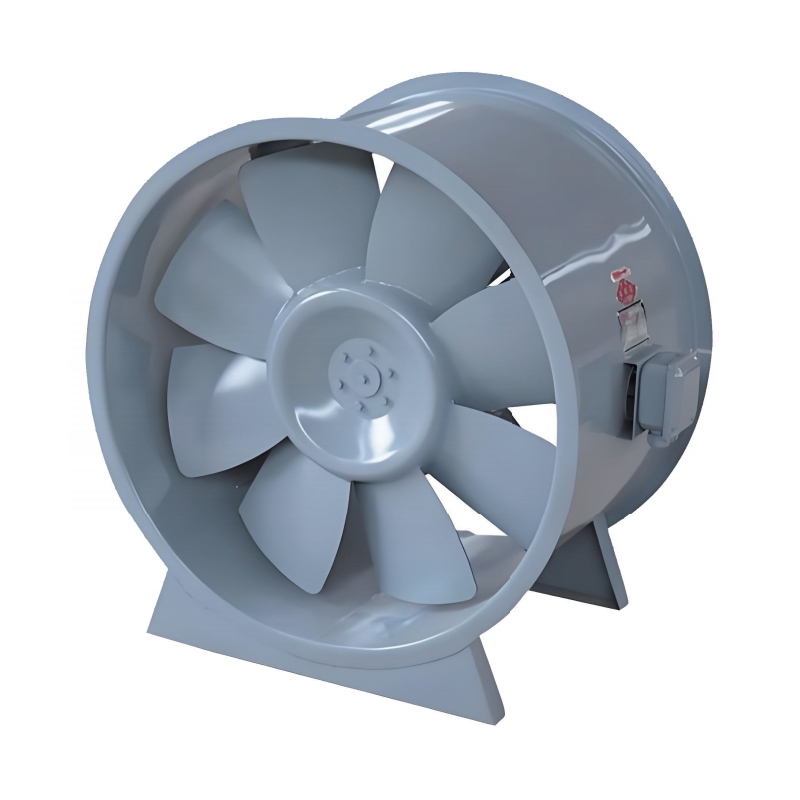

SWF Axial Flow Mixed Flow Fan

The SWF series mixed flow fan is equipped with a linear outer cylinder, conical hub, and twisted airfoil blade. It features a high efficiency, low noise, small size, compact structure and convenient installation (horizontal or vertical installation). It can be widely used for ventilation and pressurized air supply in hotels, restaurants, malls, office buildings, stadiums and other crowded locations. The two speed motor provides different airflows and pressure levels to meet different application needs.

Operating Conditions
* Temperature: -20℃~+40℃
* Humidity: ＜90%
* Medium: Air（Dust concentration does not exceed 100mg/m³）
* Power Supply: three-phase, 380V/50Hz

Model	Speed(rpm)	Extract Capacity (m3/h)	Pressure(pa)	Single Speed Power(kw)	Double Speed Power (kw)	Noise dB(A)	Weight(kg)
Model	Speed(rpm)	Extract Capacity (m3/h)	Pressure(pa)	Single Speed Power(kw)	Double Speed Power (kw)	Noise dB(A)	Weight(kg)
3.5	2900	6305	803	2.2	25/0.65 2/4	75	65
								5707	905
								4746	1065
								4186	1083
								3752	1108
		1450	3153	201		0.55		66	52
				2853			226
				2374			266
				2093			270
				1876			277
4	2900	9412	1049	5.5	5.9/1.4 2/4	79	111
								8518	1182
								7085	1390
								6250	1415
								5600	1447
		1450	4706	262		0.75		67	68
				4260			296
				3542			348
				3125			354
				2800			362
4.5	2900	13401	1327	7.5	8/2 2/4	80	139
								12129	1495
								10087	1760
								8898	1790
								7972	1832
		1450	6700	332		1.1		68	90
				6064			374
				5044			440
				4449			448
				3986			458
5	2900	18382	1638	1.5	16/3.8 2/4	85	219
								16637	1846
								13836	2173
								12206	2210
								10936	2261
		1450	9273	410		2.2		69	124
				8217			461
				6919			543
				6104			553
				5468			565
5.5	1450	12233	496	3	3.2/1.1 4/6	70	144
								11072	559
								9392	657
								8123	668
								7279	683
		960	8100	217		1.1		65	135
				7331			245
				6097			288
				5378			293
				4818			300

C-type belt drive

D-type direct drive

A-type direct drive

Model No	4-79 3A~20E
Use	General factories and large buildings
Voltage	380V/400V/415V/440V/450V/660V/1140V
Application Industries	Steel Mill/Textile, Chemical, Smelting, Petroleum, Kiln, Buildings, and Many Factories
Specification	Can provide according to customer's requirements sizes
Power	1.5~132KW
Rotating Speed	2900~260rpm
Total Pressure	1196~284Pa
Airflow	1970~123400M3/h
Package	Wooden Box/Steel frame
Temperature Resistance	-40~350 Degrees
Material	SS304,SS316 and Q235
Frequency	50Hz/60Hz
Impeller Type	Backward/Forward/Radial Blade
