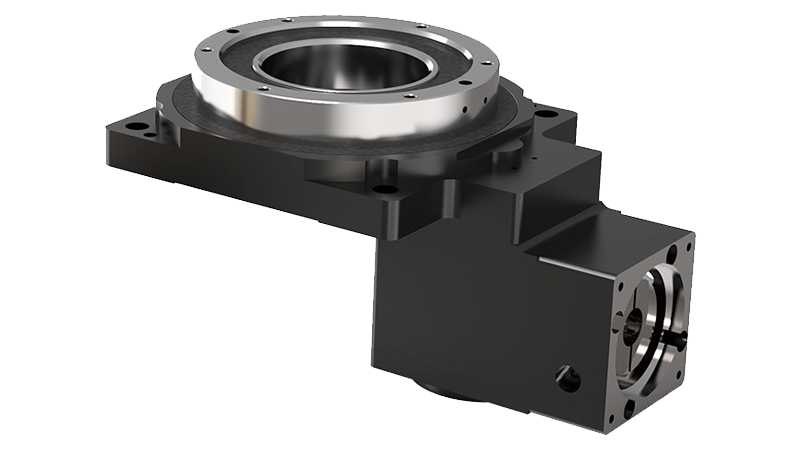

THR085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

THR085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary GearboxProducts DescriptionTHR085 Hollow Rotary Actuator A Hollow Rotary Actuator represents a class of actuators engineered with a hollow shaft structure, which not only permits passageof cables or pneumatic/hydrauli......

THR085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

Products Description
THR085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox
THR085 Hollow Rotary Actuator
A Hollow Rotary Actuator represents a class of actuators engineered with a hollow shaft structure, which not only permits passage
of cables or pneumatic/hydraulic lines but also exhibits notable characteristics such as high torque-to-size ratio, low backlash,
and adaptability to diverse motion control systems.
Specifications
THR085
Reduction ratio
10/20/30/50
Rated torque
28Nm
Adapted motor
200/400W AC Servo motor
Emergency stop torque
2.5x rated torque
Rated input speed
1500rpm
Maximum input speed
2500rpm
Return gap
≤1arcmin
Torsional rigidity
Permissible radial force
500N
Permissible axial force
200N
Service life
20000hr (Continuous operation reduces service life by 50%)
Transmission efficiency
95%
Working temperature
-10-+90℃
Protection level
IP65
Lubrication
synthetic lubricating oil and grease
Noise
≤65dB(A)
Moment of inertia
0.065kg.cm²
Weight
2.6kg
THR085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox
THR085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

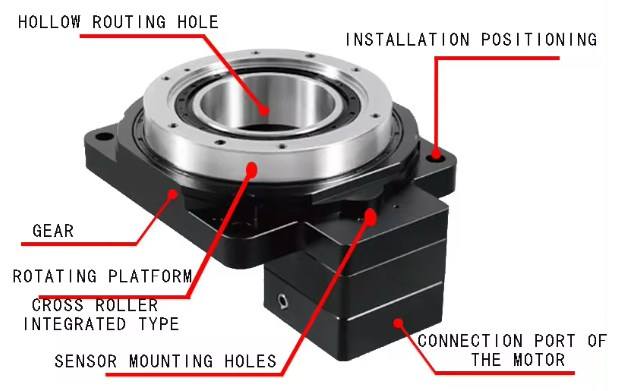

Basic Structure of the Hollow Rotary Actuator
1.Cross roller bearings: provide high stiffness and precise rotational support.
2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.
3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.
4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.
5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.
Applications
THR085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox
THR085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox
