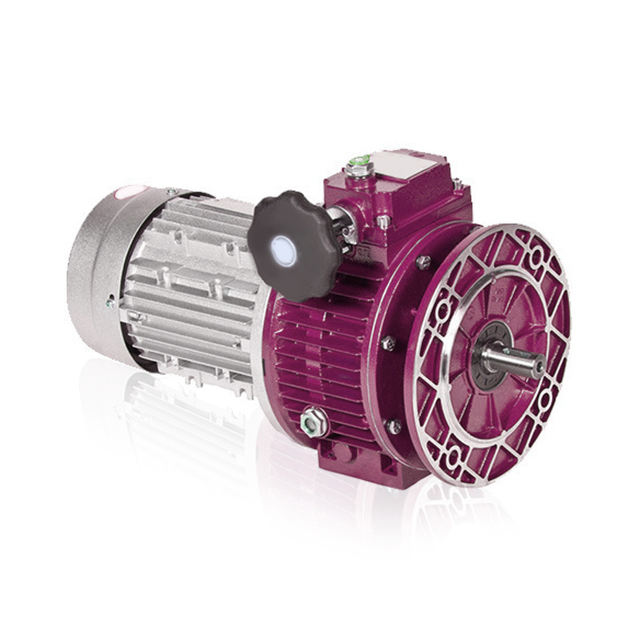

Udl Motor Speed Variator Gearbox Variator 220v Gear Motor 300rpm Speed Variator Gearbox For rv worm Gearbox

Raydafon Group presents the UDL Motor Speed Variator Gearbox, a 220V gear motor offering precise 300RPM control. Ideal for RV worm gearbox applications, it ensures smooth, reliable performance with durable construction and user-friendly operation, enhancing efficiency and reducing maintenance. Upgrade your setup with confidence.
Send Inquiry
Product Description

Udl Motor Speed Variator Gearbox Variator 220v Gear Motor 300rpm Speed Variator Gearbox For rv worm Gearbox

Product Description
Udl Motor Speed Variator Gearbox Variator 220v Gear Motor 300rpm Speed Variator Gearbox For rv worm Gearbox
UDL series stepless speed variators are widely used for foodstuffs, ceramics, packing, chemicals, pharmacy, lastics, paper-making, machine-tools, and all kinds of automatic lines, pipelines and assembly lines which need speed regulation.
1. High speed-regulating ,with precision: up to 0.5-1 rotation.
2. Large speed –changing range: The speed ratio ranges from 1:1.4 to 1:7 freely.
3. High in strength and long service life.
4. Convenient to regulate the speed.
5. Continuous in running, front-to-back in running direction, smooth in driving, stable transmission with lower noise.
6. Fully sealed and suitable for different working temperature
7. Compact structure and small volume.
8. Aluminium alloy and cast iron housing
9. Wide range of adaptation. UDL series stepless speed variators can be combined with all kinds of speed reducers,so as to achieve low stepless speed changing.
Click here for the latest quotation！
Udl Motor Speed Variator Gearbox Variator 220v Gear Motor 300rpm Speed Variator Gearbox For rv worm Gearbox
Udl Motor Speed Variator Gearbox Variator 220v Gear Motor 300rpm Speed Variator Gearbox For rv worm Gearbox
UD Model & Mark:
UDL
UD
0.75
2
C
5
B5
UDL 0.75 -2 -C -5 –B5
 Planetary mechanical speed variator,aluminium casing
 Planetary mechanical speed variator, cast iron casing
Motor power
 Two-staged gear matched; no mark stands for one-stage gear matched
Code of one-staged or two-staged gear
Reduction ratio for the matched gear

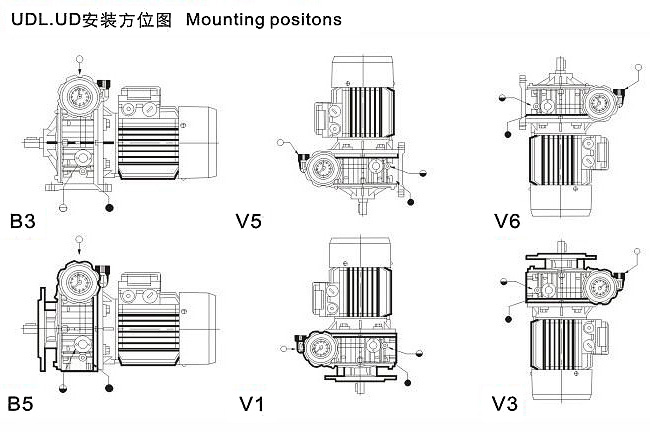

Mounting position
Click Here for more types！
Click the picture below to view more raleted products！
Udl Motor Speed Variator Gearbox Variator 220v Gear Motor 300rpm Speed Variator Gearbox For rv worm Gearbox
Udl Motor Speed Variator Gearbox Variator 220v Gear Motor 300rpm Speed Variator Gearbox For rv worm Gearbox
Hot Tags: UDL Motor Speed Variator, 220V Gear Motor, 300rpm Speed Variator, RV Worm Gearbox, Supplier, Manufacturer, Factory, China
