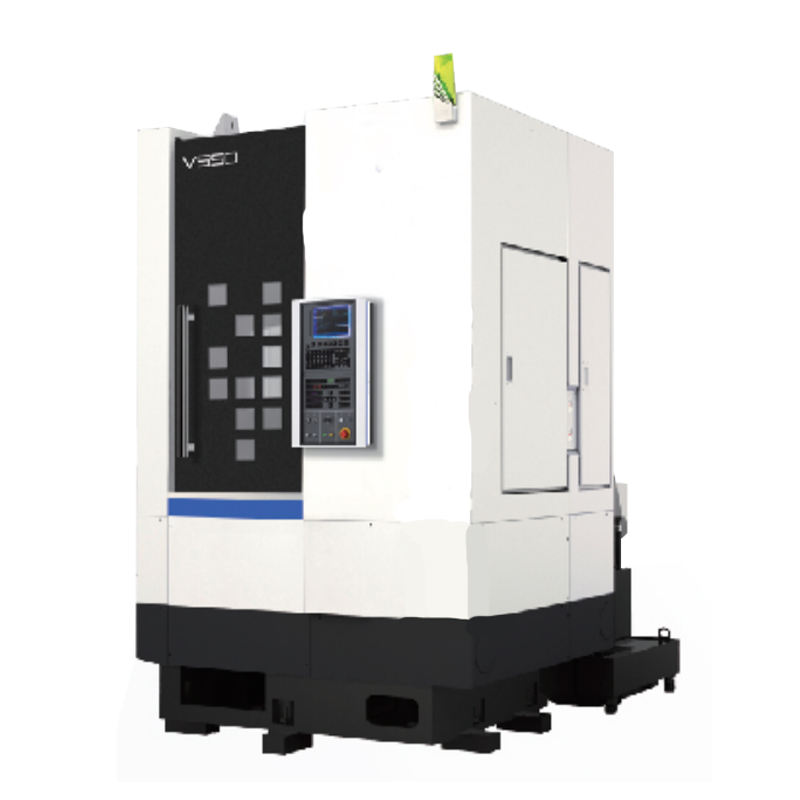

V series Vertical CNC Lathe Machine

The perfect combination of high processing performance and low footprint is mainly used for processing various short shaft and disc parts with large batch size, high precision, and high dimensional consistency requirements. It is applied in the automotive, and other mechanical industries.

Modular design: configurable C-axis, power tool holder, etc Maximum torque can reach: 1414Nm High rigidity design: meeting heavy cutting requirements

		V300M	V400	V500	V600	V800	V1000
Maximum cutting diameter	mm	300	500	500	600	800	1000
Maximum cutting length	mm	420	500	500	650	800	1000
Stroke X-axis	mm	+340/-85	+340/-85	300	300	440	800
Stroke Z-axis	mm	450	515	520	690	840	1060
Spindle end type	-	A2-8	A2-8	A2-8	A2-11	A2-11	A2-15
Spindle speed	r/min	2000	50-2500	50-1950	50-1950	50-1500	50-800
Main motor power	kw	15/18.5	15/18.5	18.5/22	22/30	22/30	37/55
Spindle torque	N.m	305/377	424.504	548/652	652/888	1245	2000
Fast movement speed XZ	m/min	20/20	20/20	18/18	18/18	16/16	10/12
Host size	mm	156021603010	156021302800	226017802880	226017803060	340022003300	394027953671

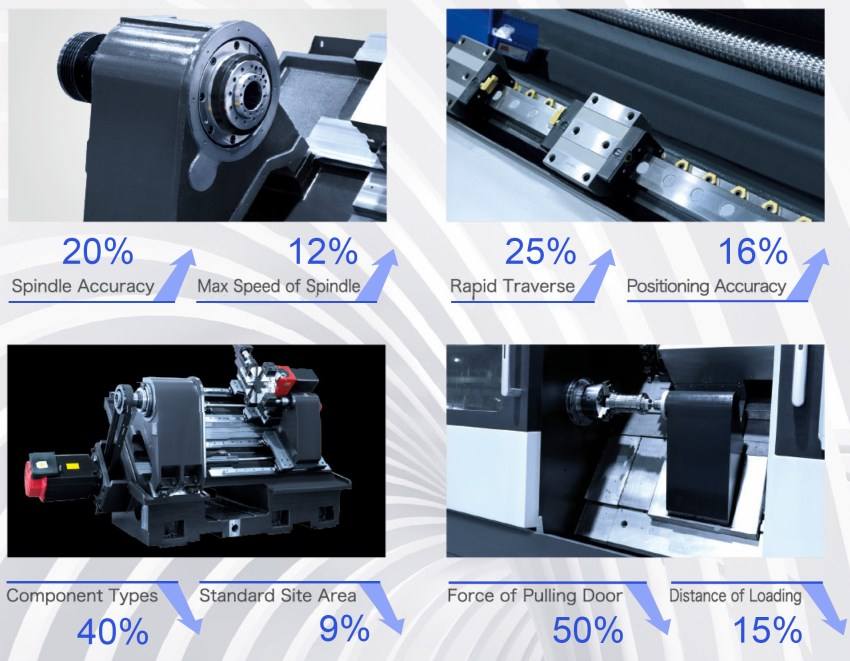

The product features compact feedingmechanism, adopts linear guiderail,and features high moving speed, goodmachining accuracy and high usereliability.

The product is configured with lateraelectric cabinet and " l-shapedwater tank so that the overall layoutis more reasonable and floor area issmaller

The product adopts servo main motorand is able to provide better powerperformance .

CRT cabinet is changed as extemal wiring ,the waterproof performance is betterand tool cabinet is added at operationposition , so that the product is morepractical and suitable for usage

The bed features higher rigidity ; andthe enlarged chip discharge angle ishelpful for discharge of chip

Application

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
