Various Good Quality 55 Series Weasler Replacement PTO Shaft

Product Description

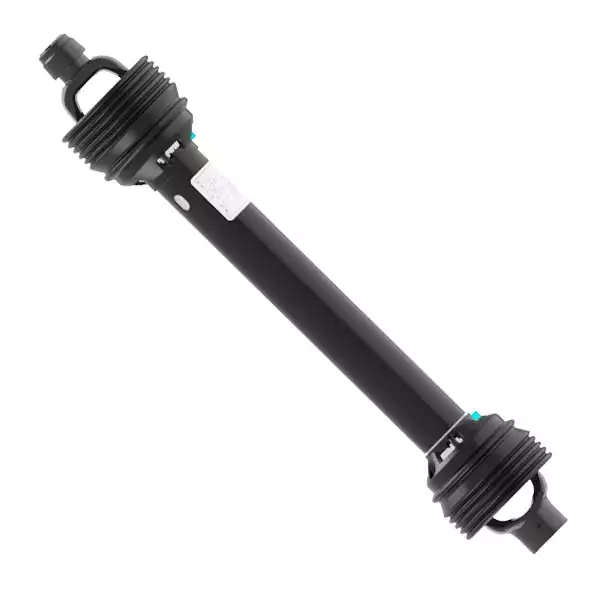

Weasler 55 Series PTO Shaft Replacement 1-3/8 ″ - 6 spline sliding lock tractor yoke A cross kit is required. An implement yoke is required. 106 hp @ 540 rpm 48 ″ compression length (dimension A)

Weasler replacement PTO shaft The power to move the tractor implements comes from the power take-off. There are numerous ratings, styles and sizes to choose from, so it is best to consult the OEM for advice. Most importantly, you need to ensure that the correct PTO shaft is selected for your application. A bad one will damage your power transmission system and its auxiliary equipment, and will also endanger your safety. When determining the best shaft for your application, you need to consider many factors, from the size of the equipment to the horsepower it will produce. For example, if the shaft is too small, it will cause problems to the equipment and cause unnecessary wear to the yoke or spider and bearing kit, while if the shaft is too large, it can not bear the weight of the connected tools. Weasler has a large number of high-performance PTO drive shafts to meet your needs. These telescopic or high-speed designs have tight fittings and complex manufacturing processes to minimize vibration and prolong life. Because of our online catalog, it is easier than you think to determine the right PTO for your needs. Just enter your brand and model, select the rated value of the machine, and then browse our inventory to find the matching PTO shaft. When you are ready to shop, the arrogant salesperson of Paul B Wholesale will help you provide the perfect PTO substitute for rotary mowers, lawn mowers, steering rods or other implements. As the distributor of Weasler in Northeast China, we can't wait to help you restore the working state of your equipment!

Spec.	Imperial	Metric
Bore 1	Minus End Yoke
Bore 2	Minus End Yoke
Compressed (Closed) Length	37.38 inches	949 mm
Compressed Overall Length	48.00 inches	1219 mm
Connection 1	YOKE ARMS
Connection 2	YOKE ARMS
Extended Length	61.13 inches	1553 mm
Extended Overall Length	72.00 inches	1829 mm
HP@1000RPM	164 HP	122 kilowatts
HP@540RPM	106 HP	79 kilowatts
Length	48.00 inches	1219 mm
Outside Diameter	7.28 inches	185 mm
Shipping Dimensions	37.38" L × 7.28" H × 7.28" W	95cm L × 18cm H × 18cm W
Shipping Volume	1981.08 in3	32464 cm3
Shipping Weight	41.90 pounds	19 kilograms
Weight	41.90 pounds	19 kilograms

Replacement of 55 Series Weasler PTO Shaft Parts:

What is the PTO shaft? The PTO shaft plays a vital role in transferring power from the tractor to the connected implements. The components of the PTO shaft include the internal and external PTO yoke, universal joint, safety chain and safety guard. There are several different types of PTO shafts to choose from, so you must choose the right shaft for your equipment and application. RAYDAFON offers three different types of PTO shafts: North America, Germany and Italy. Each type includes several series options, including various bearing diameters, total cover to cover length, and snap rings. The most accurate way to determine the correct series is to measure the outer diameter of the bearing cap and universal joint from one end of the bearing cap to the other. The position of the snap ring is another determining factor.

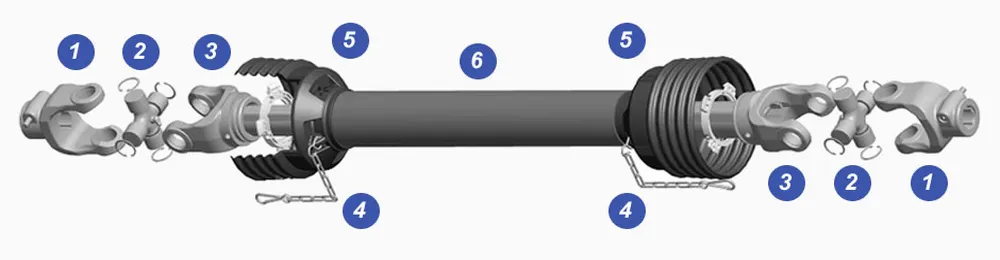

PTO Shaft Components:

1. PTO Shaft Outer Yoke	3. PTO Shaft Inner Yoke	5. Plastic PTO Shaft Guard
2. PTO Shaft Universal Joints	4. PTO Shaft Guard Chains	6. PTO Shaft Tube

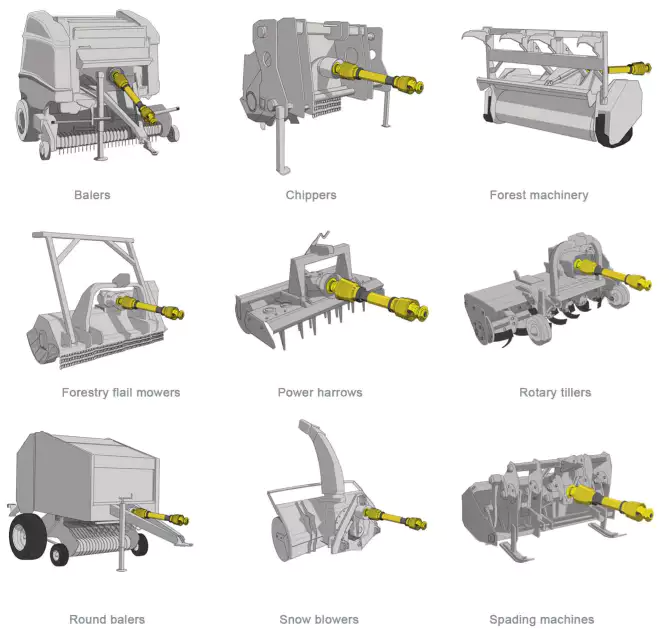

What is the use of the PTO shaft? When the equipment does not have its own engine, you will see that the PTO shaft is used. For example, you often see power take-off devices used in commercial vehicles and agricultural equipment. In fact, the innovation of PTO comes largely from the ingenuity of farmers. The tractor engine is used as a PTO to operate a manual auger or other equipment. Some other applications of PTO shaft include wood chipper, hay baler, harvester, mechanical arm, water pump, etc. Our PTO shaft is durable, and we provide reliable service through durable structure. Our high-performance PTO drive shaft is the most important drive shaft solution for agriculture, lawn and lawn industries.

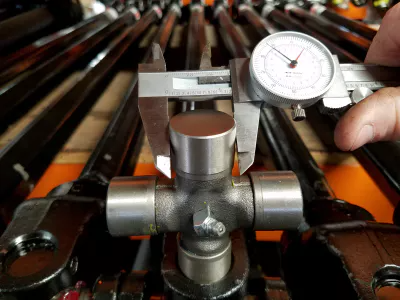

How do I measure PTO shaft parts? Correct measurement of shaft parts is essential for selecting the correct PTO series size. Each piece needs to be measured in a specific way to meet the standard size. Follow the steps below to ensure that the correct measurements are obtained and to order parts for the tractor. 1. Measuring shaft To measure the shaft, first make sure that the shaft is in the closed position at the earliest time. Use a tape measure to record the length of the outside of each yoke. The measurement is the closing length. Use this measurement to find the correct series size of tractor horsepower. Make sure you also know if there are safety pins, clutches, or splined implement ends. 2. Measure the universal joint PTO shaft replacement for Weasler 55 series When measuring the universal joint, measure the length from one end to the other. It is also necessary to record the width of one end of the universal joint. Use these numbers to find the proper joint size. 3. Put them together You will need the two measurements listed above to find the PTO shaft components for the tractor. You can use the PTO yoke size table to obtain the correct size, or use our convenient PTO series discovery tool.

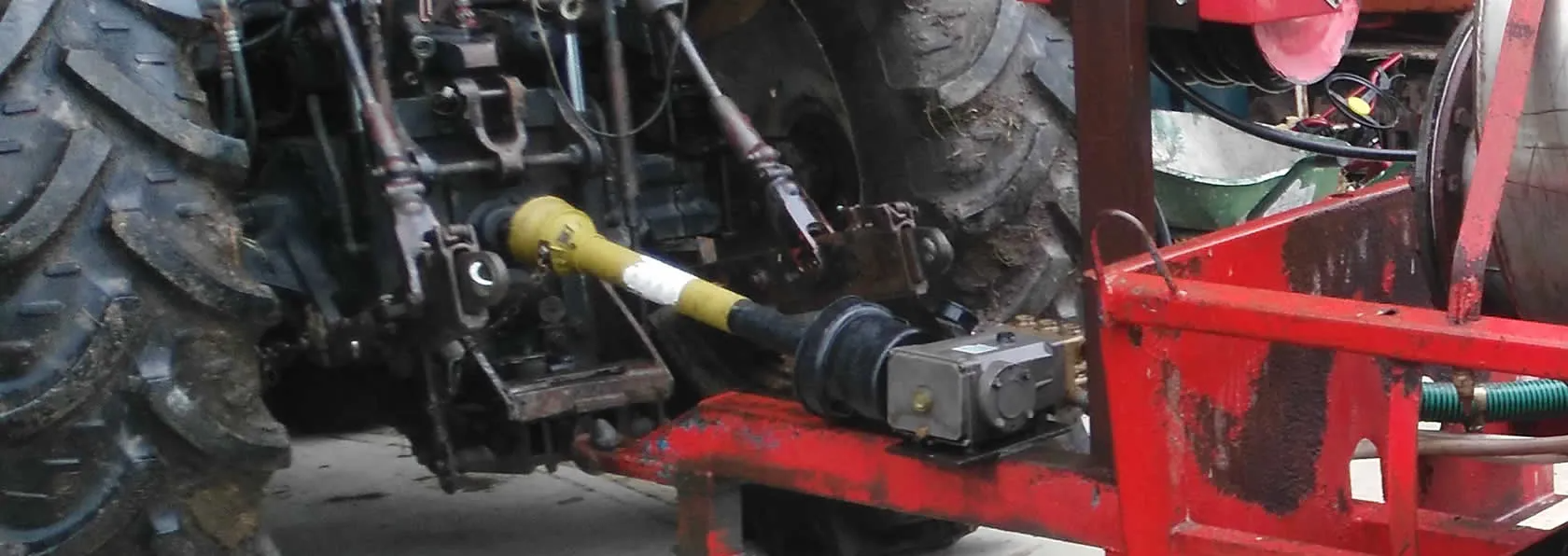

Safety precautions for PTO shaft accidents: PTO shaft accident is one of the most common and serious causes of tractor related injuries. Before using the tractor and implementing PTO shaft components, read and follow all safety instructions and best practices in the tractor and implement operator's manual. Ensure that all shields and other tractor and implement PTO shaft components are in good working condition. Do not operate the tractor and implement PTO shaft components when the tractor engine is running or any part of the PTO shaft drive implement is still moving. The PTO shaft shield should always be installed in place and properly maintained. If the shield or any other parts on the PTO shaft are damaged or worn, the PTO shaft should be replaced immediately – we provide various PTO shaft sizes and types here. Disengage the PTO shaft, turn off the tractor and make sure it is stationary before cleaning, repairing, maintaining or adjusting the machine. Do not cross the rotating shaft. Always use the transmission system recommended by the machine. Do not switch between machines. Make sure that the PTO shaft driveline is securely locked on the tractor PTO stub shaft. Correctly position the tractor drawbar for each machine, so as to reduce the stress on the transmission system on uneven ground or at turns to prevent separation. Avoid too tight rotation squeezing the rotating shaft between the tractor and accessories. Gradually energize the PTO shaft. There should be at least 40% overlap between the two ends of the PTO shaft. Avoid overtightening the slip clutch on PTO drive machines. When working around the PTO shaft, wear close-fitting clothes and comb your hair back.

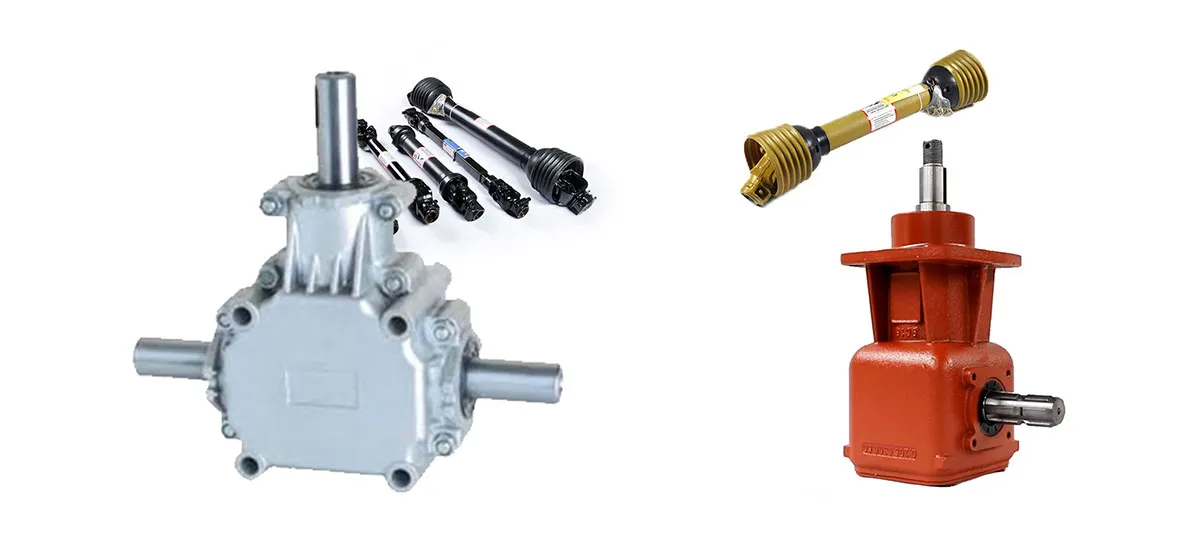

PTO shaft of agricultural gearbox Agricultural equipment includes various PTO shafts. Each is connected by a yoke at both ends and rotates between 540 and 1000 rpm. Safety guards are usually installed at both ends of the PTO shaft to protect the operator. These protective covers also exist in tractors and agricultural implements to ensure maximum efficiency. The use of the internal yoke also provides additional safety. The agricultural gearbox is designed to change the output speed of the PTO shaft. It can be used as a reduction or speed-ratio gearbox. By reducing the transmission ratio of the gearbox, it reduces the speed of the PTO shaft from 1000 rpm to 540 rpm, allowing you to use the equipment specially designed for 540 rpm. On the other hand, the gearbox with increased transmission ratio increases the speed of the PTO shaft from 540 rpm to 1000 rpm. If you also need agricultural gearbox and PTO shaft, please contact us!
