Wallet Napkins Packaging Machine

Wallet Napkins Packaging MachineProducts DescriptionWallet Napkins Packaging MachineCharacteristic1. The machine adopts one axis all-digital and the same server to control the sheet arrangement, sealing and cutting, and coating respectively.2. The mechanical structure is simplified, the positioning ......

Send Inquiry

Product Description

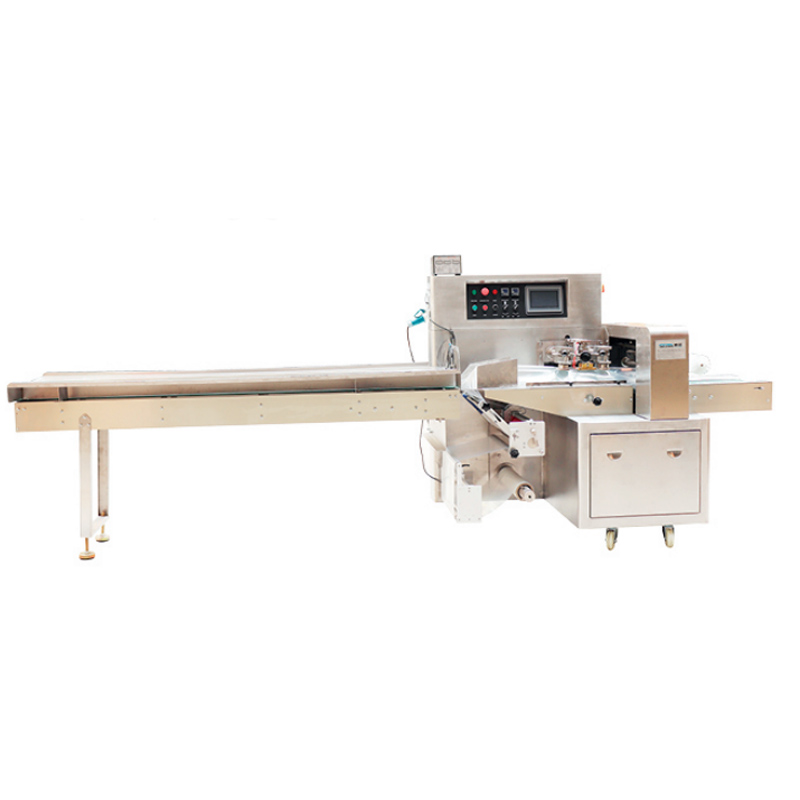

Wallet Napkins Packaging Machine

Products Description

Wallet Napkins Packaging Machine

Characteristic 1. The machine adopts one axis all-digital and the same server to control the sheet arrangement, sealing and cutting, and coating respectively.

2. The mechanical structure is simplified, the positioning accuracy is ensured, and the speed and yield are improved.

3. Low maintenance cost, high reliability, using this machine can save labor (10-15 people),

4. Reduce material cost (bag making and gluing cost), improve production eficiency, reduce cost by 5 cents per bag.

5. The cost of purchasing equipment can be recovered in the month of normal production, and the problem oflabor dificulties can be solved

6. The machine adopts three servo cNc linkage, which is easy to adjust. The packaging size can be realized by directly modifying the parametersof the touch screen, and the adjustment range; 7. The main engine of the purse paper packaging machine is the turret that pushes the paper embryos from the fader through the conveyor belinto the machine,. and then goes through the procedures of compression, packaging, folding, heat sealing, et.. until the purse paper is finishedIntegrated packaging equipment.

Basic Parameters

Model	SN-350XW
Film width	350MM
Product's height	Max.65mm
Packing speed	30-100bags/min
Bag length	65~190mm or 100~400
Bag width	50~150mm
Power	220V 50/60HZ 2.8KW
Machine dimension	4020x720x1320mm
Machine weight	550kg
