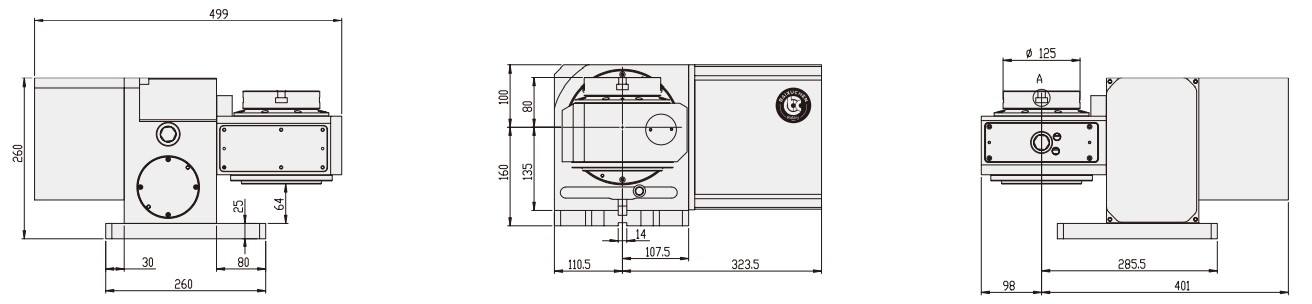

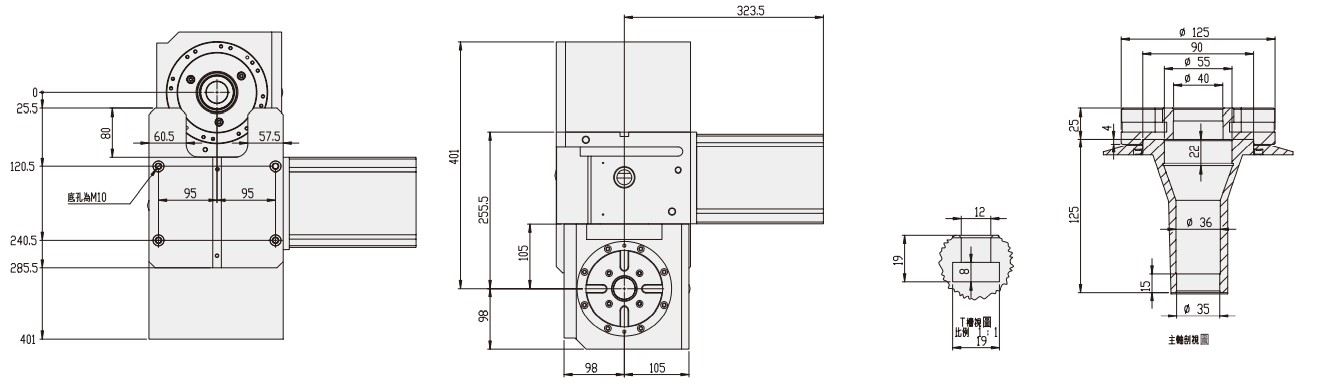

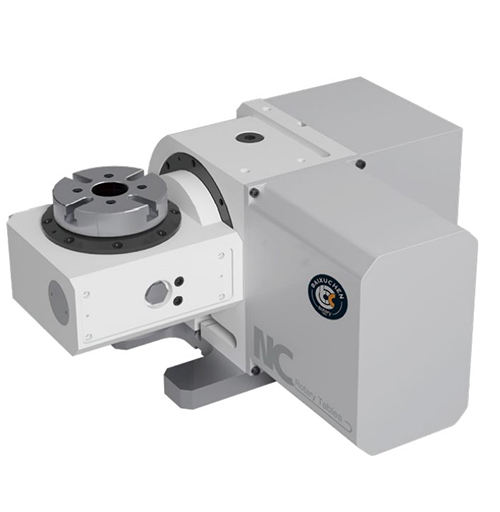

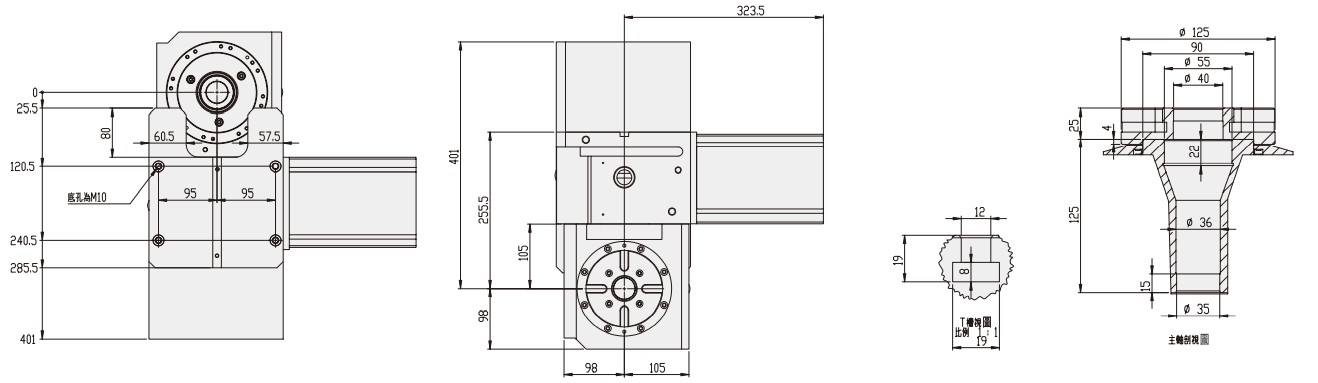

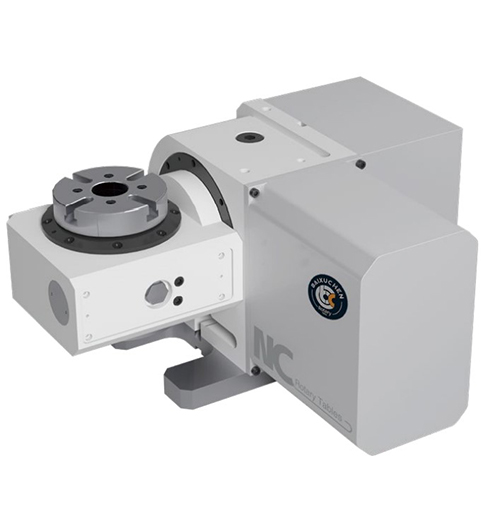

Product Model | WT-RT125 | Servo motor (optional) | 旋转轴β4i HF-54;倾斜β8i HF-104 |
Panel Size | Φ125mm | Reduction Ratio | 旋转轴1:90 ;倾斜轴1:90 |
Disk Aperture | Φ50mm | Maximum Rotation Speed Of Worktable | 旋转轴 55.5r.p.m;倾斜轴 55.5r.p.m |
Center Trough Hole | Φ45mm | Minimum Setting Angle | 0.001°deg |
Disk Height | 240mm | Segmentation Accuracy | 旋转轴15″sec;倾斜轴30″sec |
Disk T-Slot | 12H8mm | Repeat Positioning Accuracy | 旋转轴4″sec;倾斜轴4''sec |
Positioning Button | 55H7mm | Locking Method | 旋转轴 气压5Kg/cm²;倾斜轴 气压 5Kg/cm² |
Tilt Axis Angle Range | -45 ~110° | Brake Torque | 旋转轴 10Kg/m ;倾斜轴 25Kg/m |
Net Weight (about) | 95Kg | Allowable Cutting Force | 旋转轴18Kg.m;倾斜轴 55Kg.m |
Horizontal placement | 40KG | Placement | 90KG |
