Product Description

X348 X458 X678 X698 Series High Strength Wear Resistant Drop Forged Rivet-less Overhead Conveyor Chain

Products Description

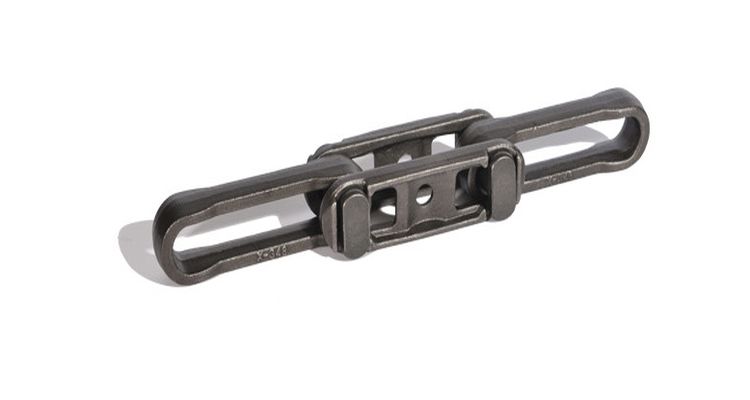

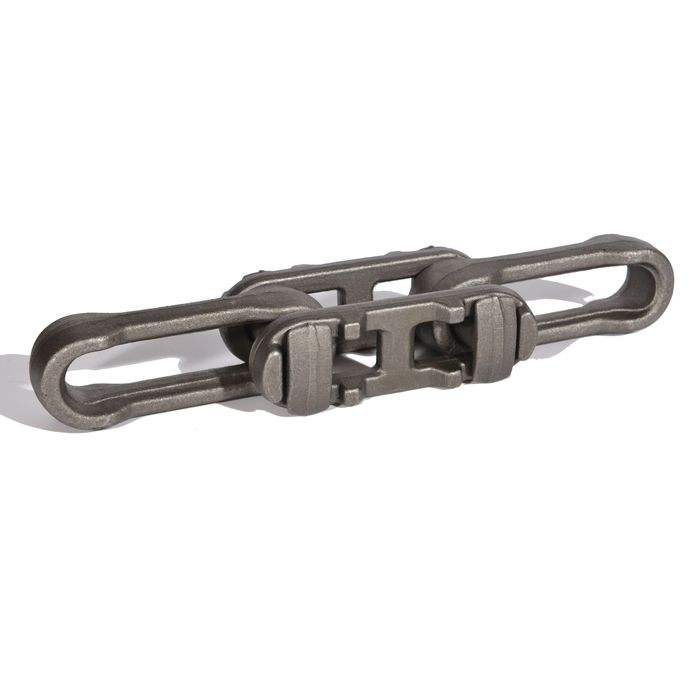

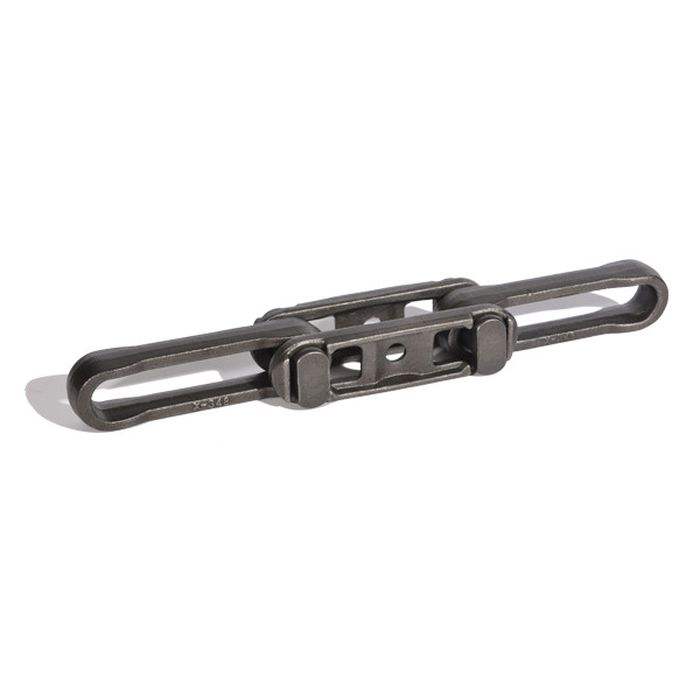

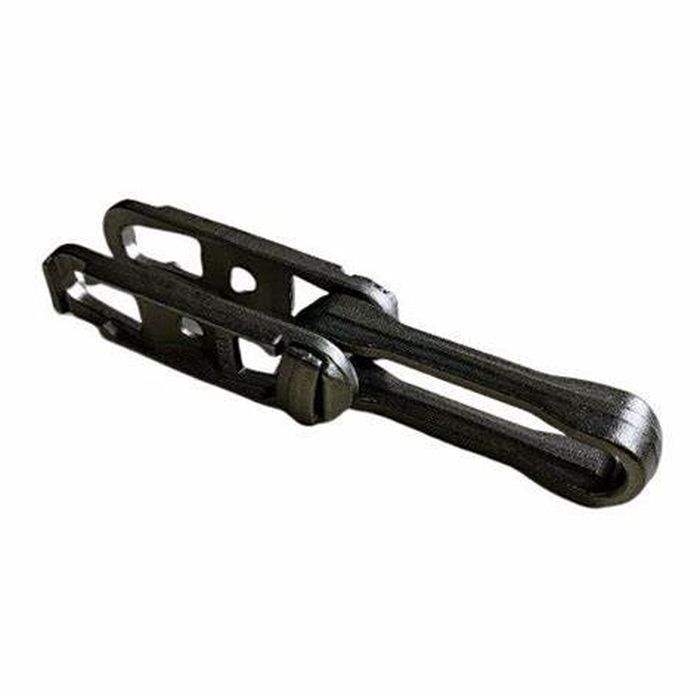

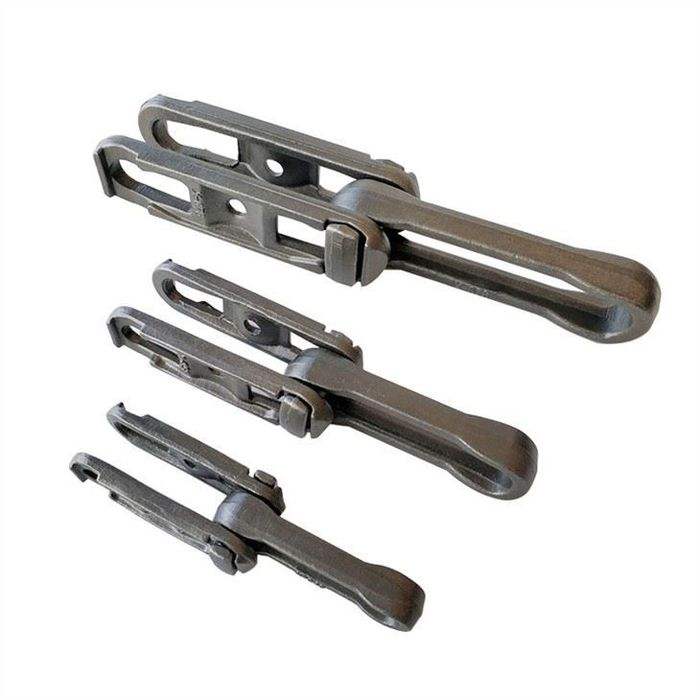

Drop-Forged Rivetless Chain

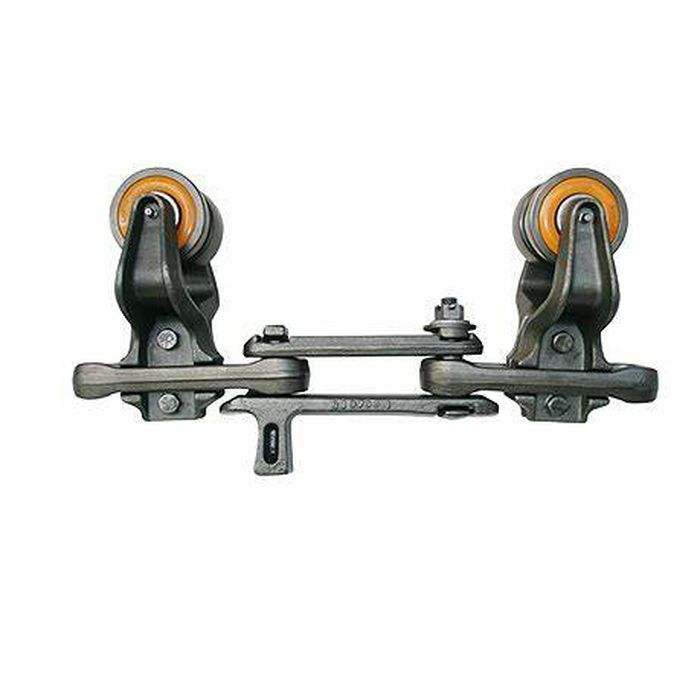

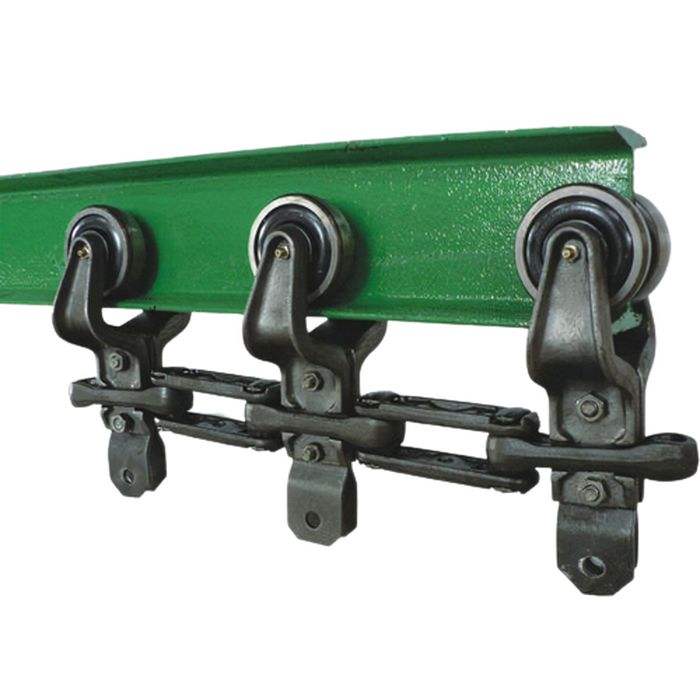

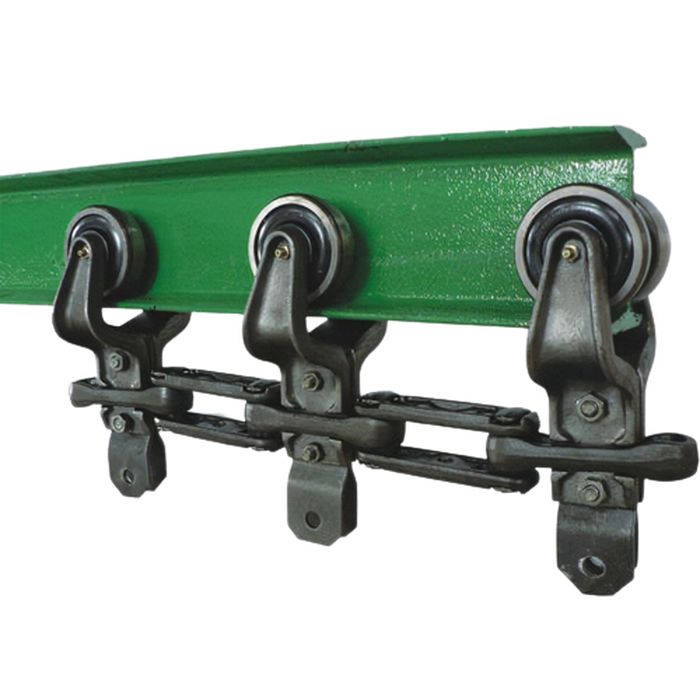

Drop-forged rivetless chain for conveyors consists of three essential parts, each of which is a forged product. When the chain is assembled, the two outer chain plates and pins are placed in the middle of the chainring and rotate at 90° to complete the process. It is easy to disassemble, and the drop-forged rivetless chain can withstand the heavier materials running on the circular track. Drop-forged rivetless chain for conveyors is widely used in suspension type conveyor, which is a primary transmission prat. It is applied to the car industry, motor industry, household appliance industry, furniture industry, etc.

The manufacturing process of drop forged chains: Drop forging: Conveyor chains belong to closed die drop forging, so forging dies will make first; our in-house die workshop will supply you high precision forging dies, and then forge convery chains with the next shape. Machining: Our advanced CNC machining centers guarantee superior and permanent quality. Machining will ensure perfect assembling and working. These machining operations include milling, drilling, boring, etc. Heat treatment: Heat treatment can ensure a uniform surface hardness and depth. Heat treatment is the heart process for making drop forged conveyor chains. With many years of experience, we will know how to treat heat to achieve the best operating performance. Quality testing: Each chain link will be checked and tested in our testing room, especially for hardness. And the testing result will be placed in our well-organized database so that it can be checked at any time.

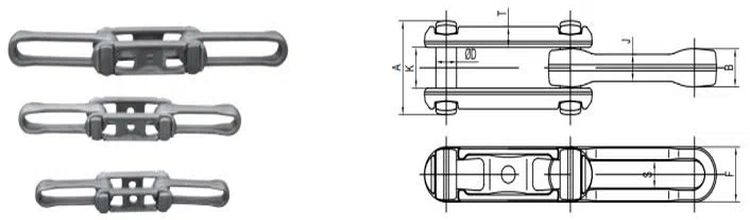

Chain No.	Pitch	Dimensions									Ultimate strength	Weight
	Pitch			A	B	S	J	K	T		Ultimate strength	Weight
		mm	mm	mm	mm	mm	mm	mm	KN	Kg/M
X348	76.6	44.5	18.8	13.5	13.2	20.6	7.6	110.0	3.2
X458	102.4	58.0	25.4	17.4	16.0	26.5	8.5	220.0	4.7
X678	153.2	77.0	32.0	25.0	21.0	34.2	12.0	320.0	9.5
X698	153.2	95.3	39.0	32.0	25.4	42.3	15.0	515.0	16.9
X998	229.4	95.3	39.7	30.2	25.4	41.7	15.0	605.0	14.8
X9118	229.4	125.0	50.0	37.2	33.5	52.0	20.0	832.0	24.2
X80	80.0	48.0	18.8	13.5	13.0	21.0	6.5	110.0	3.2
80H	80.0	72.0	32.0	19.5	19.0	34.5	11.0	250.0	8.7
XT100	100.0	58.0	25.0	17.4	16.0	26.5	8.5	220.0	4.7
XT160	160.0	78.0	34.5	28.0	20.5	36.0	12.0	410.0	10.3
