240YJK 240YJF 240YJY Round Corcer Sachet Granule Powder Liquid Packing Machine

240YJK 240YJF 240YJY Round Corcer Sachet Granule Powder Liquid Packing MachineProducts DescriptionRound Corcer Sachet Granule Packing MachineThis machine is suitable for products in medicine, food, health care and special industries, such as foodadditives,.desiccants.white sugar.instant coffee.tradi......

Send Inquiry

Product Description

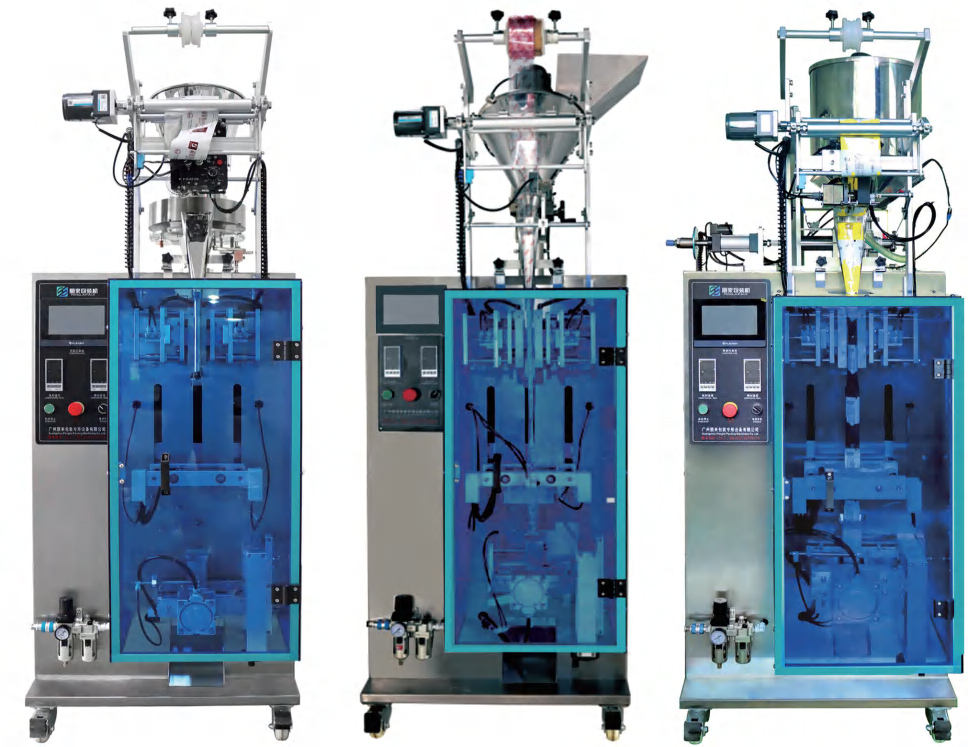

240YJK 240YJF 240YJY Round Corcer Sachet Granule Powder Liquid Packing Machine

Products Description

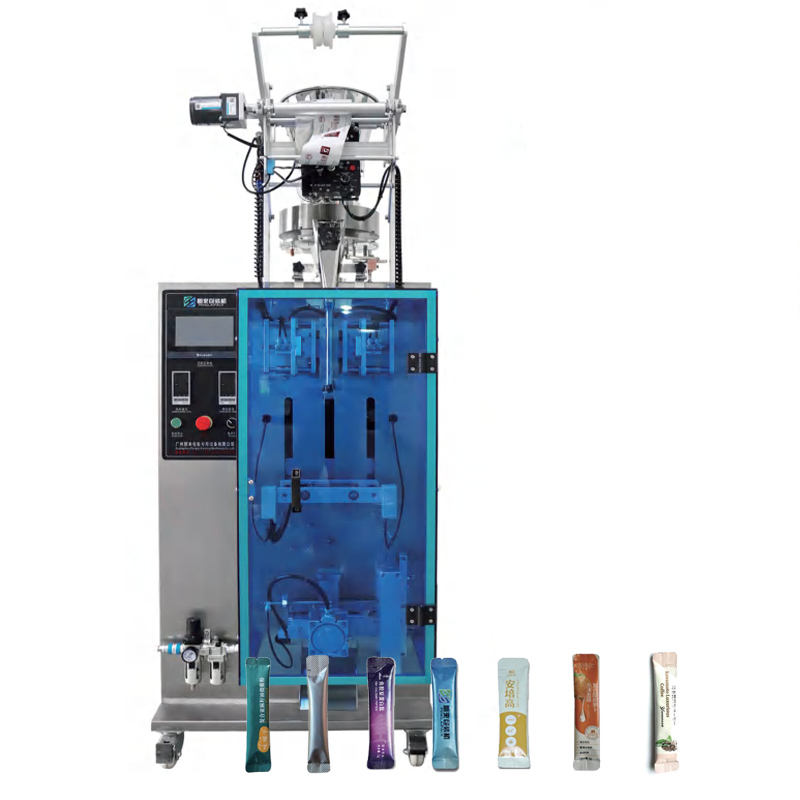

Round Corcer Sachet Granule Packing Machine
This machine is suitable for products in medicine, food, health care and special industries, such as food
additives,.desiccants.white sugar.instant coffee.traditional Chinese medicine granules and varlous granules.

Round Corcer Sachet Powder Packing Machine

This machine is suitable for powder products with ,poor fuidity in the food, daily chemical, pesticide and pharmaceutical
industries, such as: freeze-dned powder.protein powder.gastrodia elata powder.kudzu root powder.dendrobium
powder.panaxonotoginseng powder.whole grains powder.substitute Meal powder. milk shake powder.Ganoderma lucidum
powder.bearbilepowder.milk powder. coffee powder.rice powder.soybean milk powde.food additives.solid beverage powder and other powders.

Round Corcer Sachet Liquid Packing Machine

This machine is suitable for liquid.paste and paste materials in medicine, food and daily chemical industries. Such as
shampoo.shower gel.face cream.fruit juice. jam.seasoning sauce.enzyme drink.enzyme jelly. loquat extract.whole grain health cream and varous liquids.

Equipment performance

1.Filling. metering.bag making.sealing.cutting.hot pressing. batch number etc. can be automatically completed during the packaging process, and the positioning of the photoelectric tracking mark des not need to be adjusted

2.Intelligent control system, Chinese and English LED display. Onlyeed to set the parameters to precisely control the operation of the system

3.The heat sealer controls the uniform heating of the bag edge, and the upper and lower sides can be adjusted separately 4.Replacing the cutting tool can realize in-line.pattern-shaped cutting. rounded corners.in-line and jointcutting, bag cutting is stableand reliable without bag jamming, easy to operate and can be equipped with a wheel-type coding machine to arrange batch numbers, shelf life etc

Features

1.lt is packaged in the form of back sealing side sealing rounded corners, and the servo motor and servo driver are clamped to make the machine pull the film more accurately and faster. The clamping makes the bick seal and horizontal seal more obedient, and the bag is more beautiful.

2.The shape of the bag can be customized according to the punching knife and horizontal sealing mold
3.The design of long strips with rounded corners, the loading capacitycan be large or small. By setting the bag length value, differentgrammages can be achieved, reducing mold replacement

4.The chassis is customized with 304 stainless steel, non-outsourcing sainless steel plate

5.The equipment is highly compatible, and different specifications canbe realized by changing the mold

Basic Parameters

Model	240YJK	240YJF	240YJY
Measuring range	1-50g	1-50g	1-50g
Bag size	(back center seal):L40-160mm W20-100mm （side seal):L40-160mm;W20-100mm	(back center seal):L40-160mm W20-100mm（side seal):L40-160mm;W20-100mm	(back center seal):L40-160mm W20-100mm（side seal):L40-160mm;W20-100mm
Dose range	rotary measuring cups	screw feeder	pump/rotor pump/piston pump
Voltage	220V50-60HZ/2KW	220V50-60HZ/2KW	220V50-60HZ/2KW
Controlsystem	PLC controlling system
Speed	25-60bag/min
Bagtype	Bag center seal/ side seal
Dimension	L800W960H1900 mm	L800W960H2050 mm	L900W700H1850 mm
Weigh	300KG	300KG	250KG
Material	BOPP/PE/PET any heat sealing laminated film
