3 Grooves Cast Iron Steel Roller Pulley Wheels

3 Grooves Cast Iron Steel Roller Pulley Wheels3 grooves Cast iron steel roller pulley wheelsProduct DescriptionApplication Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, te......

3 Grooves Cast Iron Steel Roller Pulley Wheels

3 grooves Cast iron steel roller pulley wheels

Product Description

Application



Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.



              3 Grooves Cast Iron Steel Roller Pulley WheelsBelt SectionSPB
Product CodeCP038766
Groove number3
Pitch Diameter (P)200mm
Outside Diameter (O)207mm
J163mm
L45mm
M18mm
F63mm
Weight(kg)8.55

 3 Grooves Cast Iron Steel Roller Pulley Wheels

3 Grooves Cast Iron Steel Roller Pulley Wheels

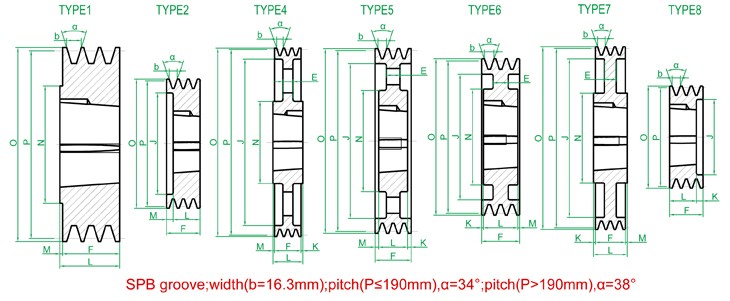

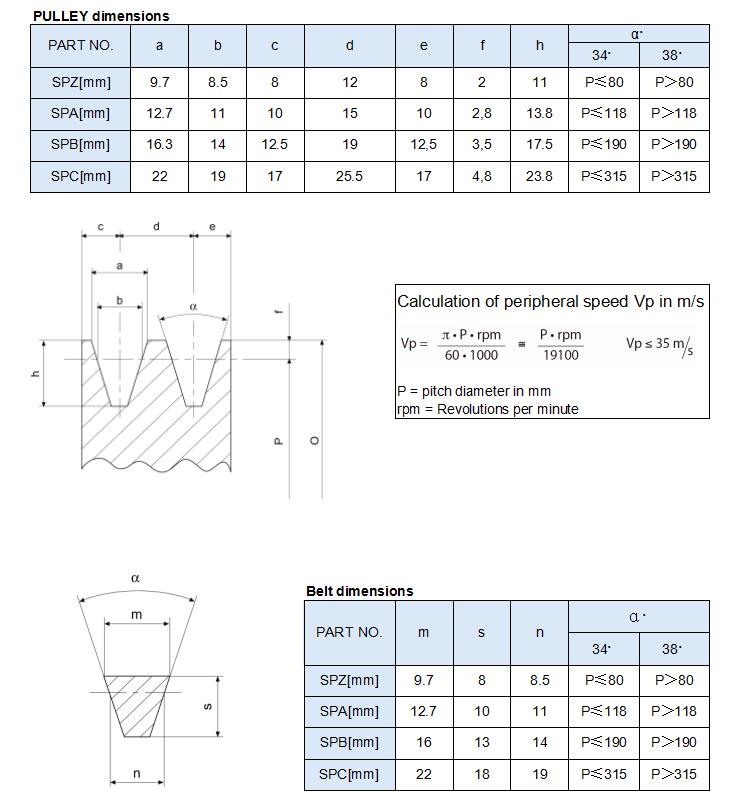

V belt pulleys drawing

3 Grooves Cast Iron Steel Roller Pulley Wheels

3 Grooves Cast Iron Steel Roller Pulley Wheels

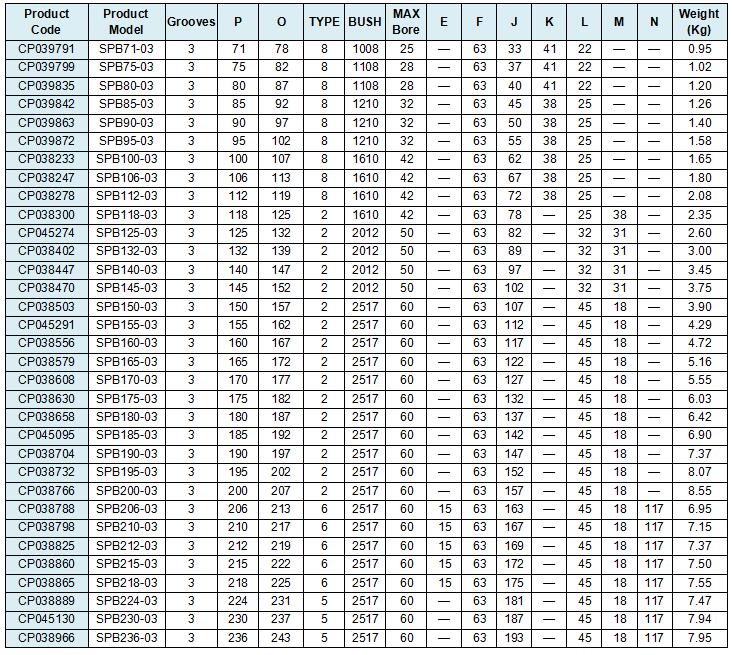

SPB-03 Belt Pulley Specifications

Product Name:V Belt Pulley

Belt Section:SPB

Grooves:3

 3 Grooves Cast Iron Steel Roller Pulley Wheels

3 Grooves Cast Iron Steel Roller Pulley Wheels

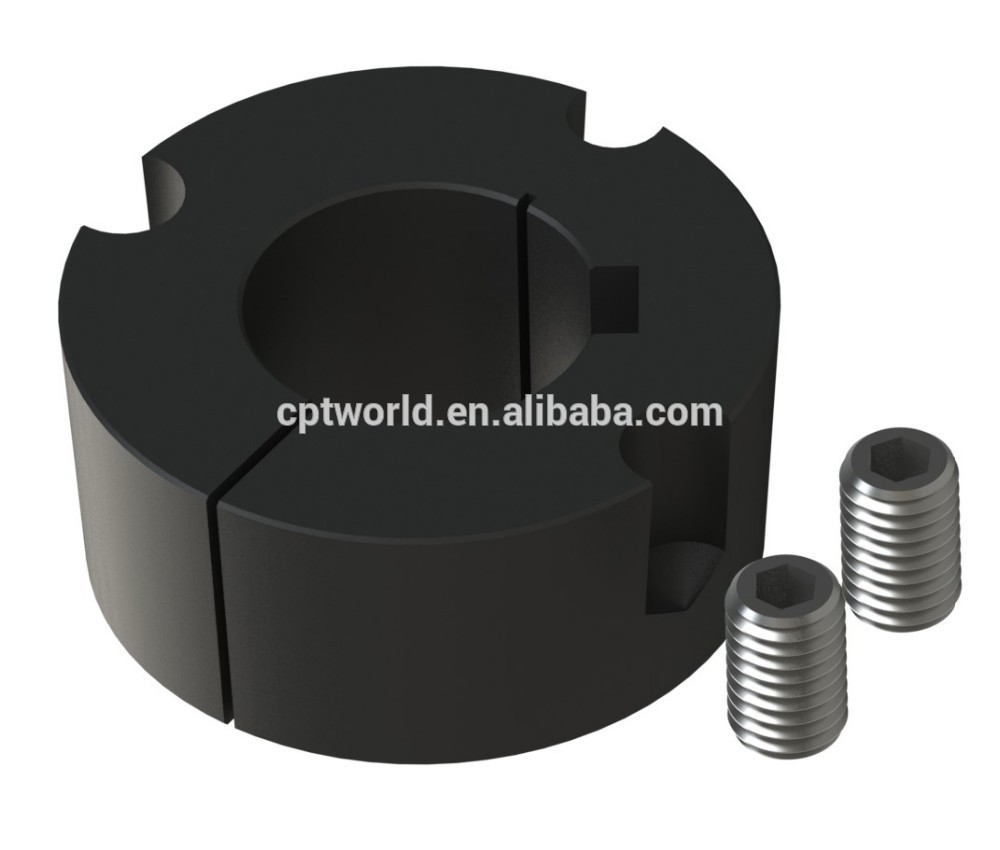

Equipped with Bush:



European standard bush
3 Grooves Cast Iron Steel Roller Pulley WheelsBush NoBore Range (mm)
251710, 11, 12, 14, 15, 16, 17, 18, 19, 20, 22, 24, 25, 28, 30, 32, 33, 34, 35, 36, 38, 40, 42, 43, 45,47, 48, 50, 52, 54, 55, 56, 57, 58, 60, 63, 65
Pulley & Belt Select

Pulley Selection Guide

3 Grooves Cast Iron Steel Roller Pulley Wheels

Package&Shipping

3 Grooves Cast Iron Steel Roller Pulley Wheels

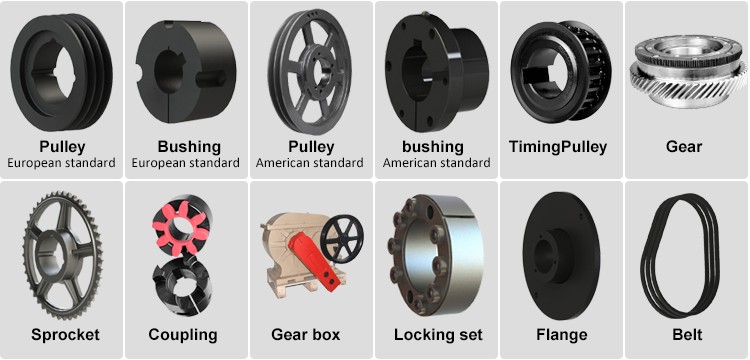

Other Products

3 Grooves Cast Iron Steel Roller Pulley Wheels

Please contact us or go to homepage for more product information.
