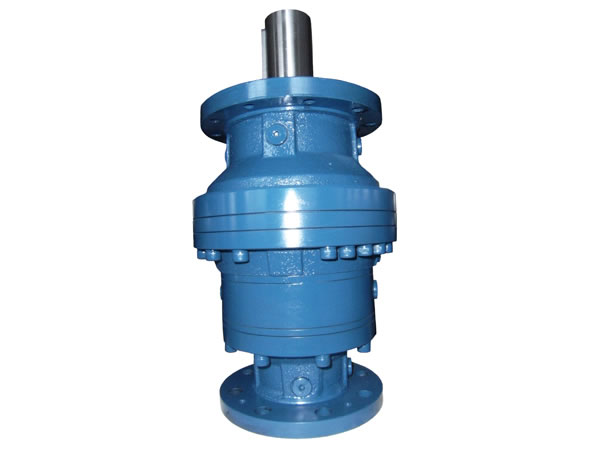

300 Series Inline Planetary Gear Drives Speed Reducer Gearbox Replacement of Bonfiglioli 301L1 301L2 301L3 301L4

300 Series Inline Planetary Gear Drives Speed Reducer Gearbox Replacement of Bonfiglioli 301L1 301L2 301L3 301L4Product DescriptionNote: Our planetary gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox, are exactly the same withTrasmital Bonfiglioli in installation dimension......

300 Series Inline Planetary Gear Drives Speed Reducer Gearbox Replacement of Bonfiglioli 301L1 301L2 301L3 301L4

300 Series Inline Planetary Gear Drives Speed Reducer Gearbox Replacement of Bonfiglioli  301L1 301L2 301L3 301L4
Product Description
Note: Our planetary gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox, are exactly the same with
Trasmital Bonfiglioli in installation dimensions, and almost the same with Trasmital Bonfiglioli in performance parameters. So ourgear drives and TrasmitalBonfiglioli's can be used interchangeably.

The 300L series and 300R series planetary gearboxes can be interchangeable with the following models ofTrasmital Bonfiglioli: 300L1, 300L2, 300L3, 300L4, 300R2, 300R3, 300R4, 301L1, 301L2, 301L3, 301L4, 301R2, 301R3, 301R4, 303L1, 303L2, 303L3, 303L4, 303R2, 303R3, 303R4, 305L1, 305L2, 305L3, 305L4, 305R2, 305R3, 305R4, 306L1, 306L2, 306L3, 306L4, 306R2, 306R3, 306R4, 307L1, 307L2, 307L3, 307L4, 307R2, 307R3, 307R4, 309L1, 309L2, 309L3, 309L4, 309R2, 309R3, 309R4, 310L1, 310L2, 310L3, 310L4, 310R2, 310R3, 310R4, 311L1, 311L2, 311L 3, 311L 4, 311R2, 311R3, 311R4,
313L1, 313L2, 313L3, 313L4, 313R2, 313R3, 313R4,
315L1, 315L2, 315L3, 315L4 , 315R3, 315R4,
316L1, 316L2, 316L3, 316L4, 316R3, 316R4,
317L1, 317L2, 317L3, 317L4, 317R3, 317R4,
318L1, 318L2, 318L3, 318L4 ,318R4,
319L1, 319L2, 319L3, 319L4, 319R4,
321L1, 321L2, 321L3, 321L4, 321R4
300 Series Inline Planetary Gear Drives Speed Reducer Gearbox Replacement of Bonfiglioli  301L1 301L2 301L3 301L4

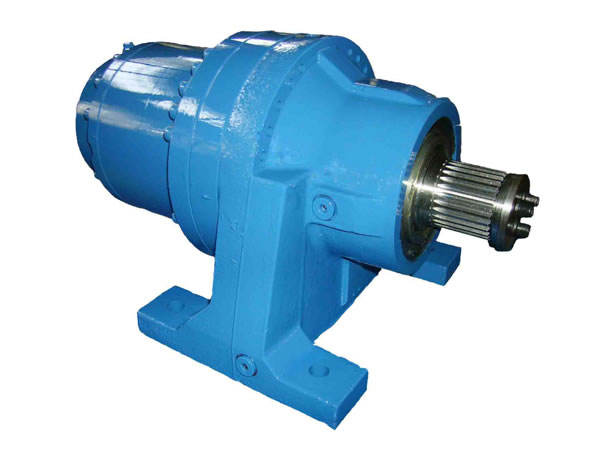

303L3-HC
300 Series Inline Planetary Gear Drives Speed Reducer Gearbox Replacement of Bonfiglioli  301L1 301L2 301L3 301L4

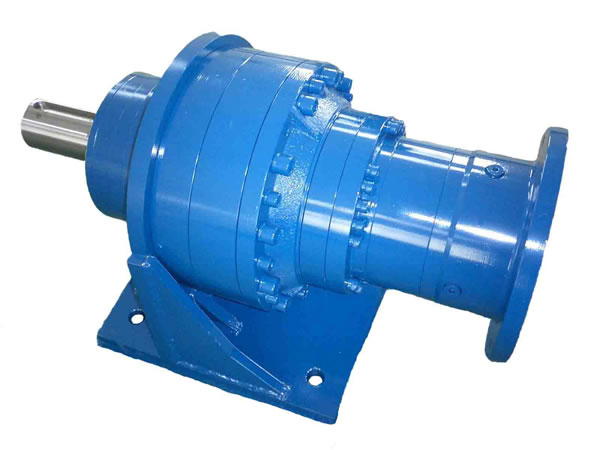

305L2-HZ
300 series is compact and powerful. Its planetary transmission system makes it an ideal choice for all heavy load applications, in which impact loads and impacts are more common than exceptions. Due to the multiple choices of installation, gear layout, output shaft and motor interface, the product configuration has a high degree of versatility. All functions are applicable to 20 rack sizes with fine intervals, and the torque range is 1000 to 1100000 nm.
300 Series Inline Planetary Gear Drives Speed Reducer Gearbox Replacement of Bonfiglioli  301L1 301L2 301L3 301L4

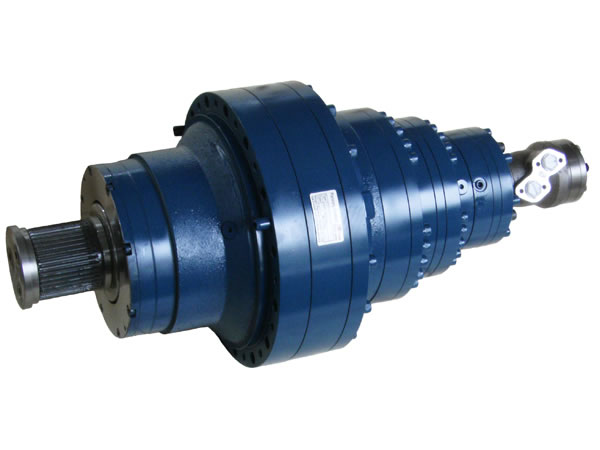

305L4-PZ
300 Series Inline Planetary Gear Drives Speed Reducer Gearbox Replacement of Bonfiglioli  301L1 301L2 301L3 301L4

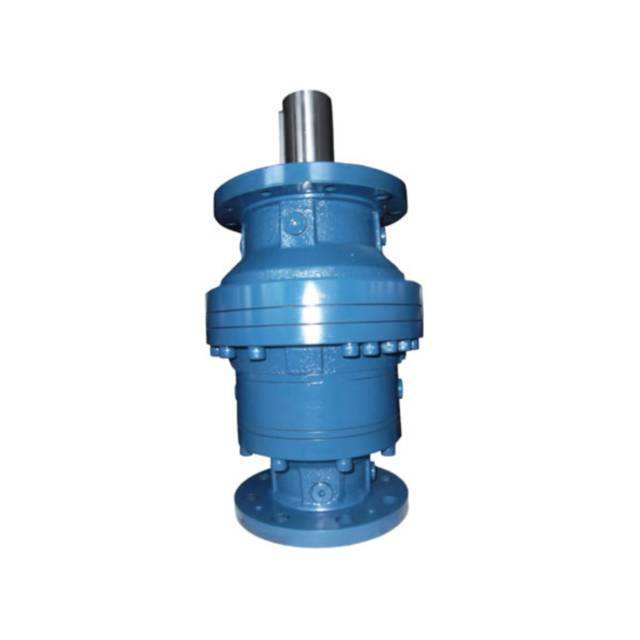

309L3-PC
300 Series Inline Planetary Gear Drives Speed Reducer Gearbox Replacement of Bonfiglioli  301L1 301L2 301L3 301L4

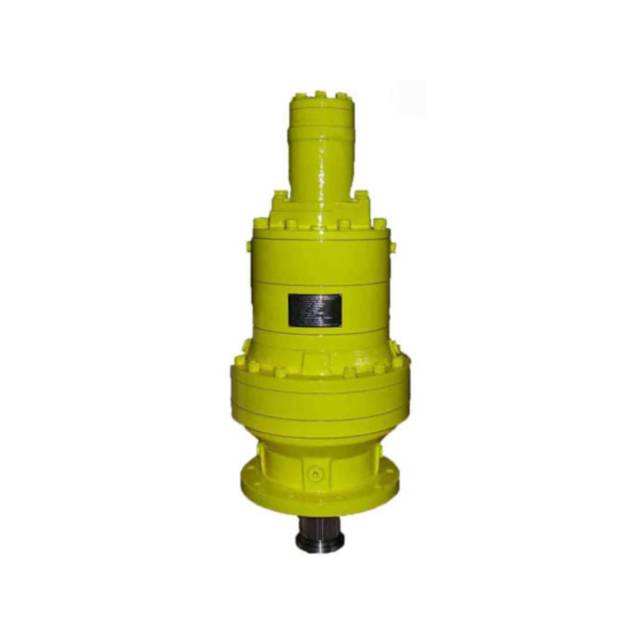

310L3-HZ
Superior Performance The Ever-power EP300 Series inline planetary gear reducer is the best gearbox solution for all applications requiring high torque with minimal dimensions such as fixed industrial equipment and heavy self-propelled machines. This planetary gear transmission solution offers a substantial improvement over ordinary gearboxes in terms of space occupation and weight This gearbox combines high performance with low cost and compact size, excellent reliability simple installation and reduced maintenance The EP300L series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications The NB300L Series is also available in a high power version , linking the performance of our planetary technology with the high quality and reliability of gearboxes : a solution that is more efficient , quieter , more compact , and more cost-effective compared with traditional gear units
Key Features
1 . Torque range : 1000-450.000 Nm
2. Transmissible mechanical power . up to 540 kw
3. Gear ratios : 34-9.000
4 . Gear unit versions : in line
5. Output confiqurations
1 ) Foot and flange mounted
2 ) Output shaft : solid with key , splined , splined hollow
3 ) Hollow with shrink disc
6 . Input configurations
1 ) Flanged axial piston hydraulic motors
2 ) Hydraulic orbit motors
3 ) IEC and Nema motor adaptors
4 ) Solid input shaft
7 . Hydraulic brake : hydraulically released parking brake
8 . Electric brake . DC and AC type
Tipo
Torque Nm
EP300L
EP300L1 /EP300L2 /EP300L3 /EP300L4
1000
EP301L
EP301L1 /EP301L2 /EP301L3 /EP301L4
1750
EP303L
EP303L1 /EP303L2 /EP303L3 /EP303L4
2500
EP305L
EP305L1 /EP305L2 /EP305L3 /EP305L4
5000
EP306L
EP306L1 /EP306L2 /EP306L3 /EP306L4
8500
EP307L
EP307L1 /EP307L2 /EP307L3 /EP307L4
12500
EP309L
EP309L1 /EP309L2 /EP309L3 /EP309L4
18000
EP310L
EP310L1 /EP310L2 /EP310L3 /EP310L4
25000
EP311L
EP311L1 /EP311L2 /EP311L3 /EP311L4
40000
EP313L
EP313L1 /EP313L2 /EP313L3 /EP313L4
55000
EP315L
EP315L1 /EP315L2 /EP315L3 /EP315L4
100000
EP316L
EP316L1 /EP316L2 /EP316L3 /EP316L4
135000
EP317L
EP317L1 /EP317L2 /EP317L3 /EP317L4
170000
EP318L
EP318L1 /EP318L2 /EP318L3 /EP318L4
250000
EP319L
EP319L1 /EP319L2 /EP319L3 /EP319L4
350000
EP321L
321L1/321L2/321L3/321L4
500000
Alternative Brand/Model inquiry
Trasmital Bonfiglioli Brevini Riduttori Bosch Rexroth Comer Industries Reggiana Riduttori Rossi Zollern
Click here for more model types!

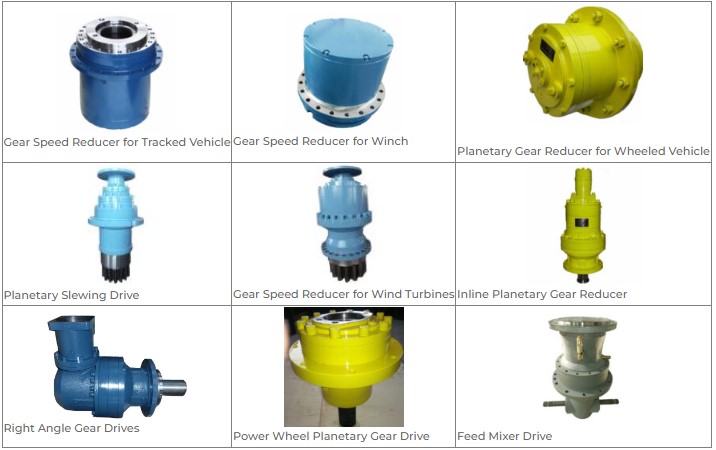

Other Types of Planetary Gearbox
300 Series Inline Planetary Gear Drives Speed Reducer Gearbox Replacement of Bonfiglioli  301L1 301L2 301L3 301L4
Application
Construction (dryers, crushing machines, mixing mills, cranes, mobile scaffolds) Material handling (gantry cranes, mobile dock cranes, movable stocks, bridge cranes) Waste and sewage treatment (rotating filters, thickeners, clarifiers, Warm hoists, agitators) Mine and quarry machines (drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines) Wind energy (pitch drives, yaw drives) Substructures (movable roofs, movable gantries, piling) Steel processing machines (conveyors, extruders, cutting machines, roll benders, rolling mills) Food industry (mixing machines, mixers, conveyors, fruit extractor machines)
