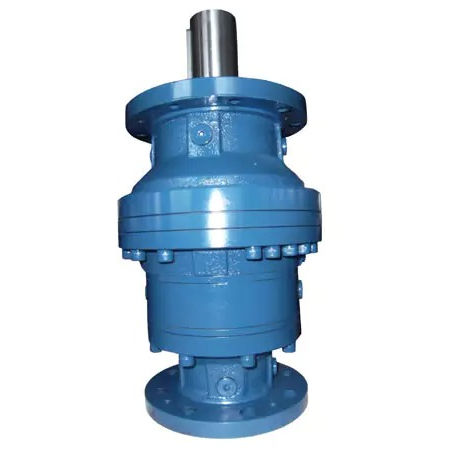

Competitive Price SL Series Planetary Gearbox Replacement of Brevini Riduttori SL300 SL400 SL600 SL850

Competitive Price SL Series Planetary Gearbox Replacement of Brevini Riduttori SL300 SL400 SL600 SL850Video Description00:00/00:00Products DescriptionReplaceable modelOur planetary gear units, wheel drive gearboxes, winch drive gearboxes and track drives can be interchanged with the following models......

Send Inquiry

Product Description

Competitive Price SL Series Planetary Gearbox Replacement of Brevini Riduttori SL300 SL400 SL600 SL850

Products Description

Replaceable model Our planetary gear units, wheel drive gearboxes, winch drive gearboxes and track drives can be interchanged with the following models produced by Brevini riduttori.

SL Series
SL3001	SL3002	SL3003	SL3004	SC3002	SC3003	SC3004
SL4001	SL4002	SL4003	SL4004	SC4002	SC4003	SC4004
SL6001	SL6002	SL6003	SL6004	SC6002	SC6003	SC6004
SL8501	SL8502	SL8503	SL8504	SC8502	SC8503	SC8504
SL12001	SL12002	SL12003	SL12004	SC12002	SC12003	SC12004
SL18001	SL18002	SL18003	SL18004	SC18002	SC18003	SC18004
SL25001	SL25002	SL25003	SL25004	SC25002	SC25003	SC25004
SL35001	SL35002	SL35003	SL35004	SC35002	SC35003	SC35004
SLS3002	SLS3003	SLS4002	SLS4003

Characteristics of planetary gearbox 1. Gear unit version: In line or right angle (with spiral bevel gear pair Gleason) 2. Output configuration: Base and flange installation 3. Output shaft: Solid hollow shaft with key, spline, spline hollow, and shrink disk 4. Gear unit input configuration: IEC standardized motor adapter or solid input shaft 5. Characteristics of main brake motor:DC and AC brakes Hydraulic brake:Fast braking and / or release the brakes by: 6. Installation dimensions can be provided upon request. 7. According to requirements, brakes, balance valves, shuttle valves and distributors that can integrate various functional valves can also be provided.

Size	Torque 10000h (Nm)	Max Torque (Nm)
300	34.000	76.000
400	40.000	84.000
600	63.000	140.000
850	88.000	195.000
1200	120.000	293.000
1800	168.000	390.000
2500	300.000	570.000
3500	430.000	810.000
5000	490.000	1100.000
7500	712.000	1800.000
10000	1035.000	2600.000
15000	1500.000	3750.000
20000	2170.000	5400.000

Planetary gearbox parameters Torque: 16.000-2170.000nm Maximum torque: 54.000-5400.000nm Ratio: 4-3000 and above Version: inline or right angle

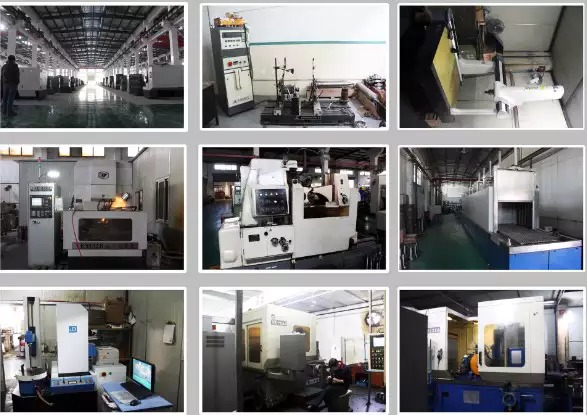

Planetary gearbox manufacturer Yongli power is a scientific and technological enterprise engaged in the research, development and production of planetary gear transmission products, such as walking reducer, rotary reducer, lifting reducer, hydraulic planetary winch, etc. The company always takes quality management as the top priority of the company's development. The manufacturing of planetary gear transmission products complies with international ISO 4301 and ISO9001 standards, American SAE j706 and European Union CE standards.

If you are interested in some of our products, please contact us.

Other Types of Planetary Gearboxes

For more models or customization, please click here！
