Product Description

CTU Planetary Gearbox Track Drive Replacement of Brevini Riduttori CTU3150 CTU3200 CTU3300 CTU3500 CTU3700

Products Description

CTU planetary transmission track drive product information

Brevini riduttori power transmission compact planetary track transmission is designed for Tracked Vehicles: excavators and earth moving machinery. They have heavier housings, shorter overall lengths, and greater radial and axial load capacity. They have an integrated multi disc fail safe brake, which can be directly installed on the hydraulic motor, and are ready to accept the plug-in hydraulic motor. The compact design of the device allows power to be transmitted directly from the Brevini axial piston hydraulic motor to the operating machine, thereby reducing the overall size of the hydrostatic transmission. High radial load capacity, special sealing system and manual separation allow the final drive to operate under harsh and heavy load conditions. The internal multi disc parking brake, motion control valve and smooth displacement variability provided by Brevini hydraulic motor are additional advantages, enabling Dana to provide a complete, reliable and integrated transmission kit as a partner.

Technical Features of CTU Track Drive

Model	T2max(Nm)	Indicative Machine Weight(Ton)	Ratio(from...to)	Brake release pressure(bar)	Parking Brake	Max. brake torque(Nm)	Notes/Options	Weight(kg)
CTD2051	5.500	5	16...53	16	M	355		55
CTD2100.1	10.000	10	15...50	18	M	320		65
CTU3150.1	18.000	18	66...141	14	M	230	Two stages available	135
CTU3200.1	25.000	20	67...130	10...18	M			140
CTU3300.1	35.000	25	67...130	10...18	M	485	Two stages available	162
CTU3500.1	45.000	30	87...169	10	M	495	Two stages available	205
CTU3700.1	70.000	40	98...191	14	M	500	Two stages available	300
CTU3850	85.000	50	83,5...198	15	M	1160		380
CTU31100	110.000	70	83,5...198	15	M	1345		400
CTU31400	140.000	80	109...198	15	M	1545		585
CTU31700	170.000	90	109...198	15	M	1545		585

features: The large radial and axial load capacity is due to the strong tapered roller bearings. High torque capacity Reliable oil seal protection, designed according to our field experience. Universal and SAE input direct mount flanges These devices are designed for direct installation into the rim.

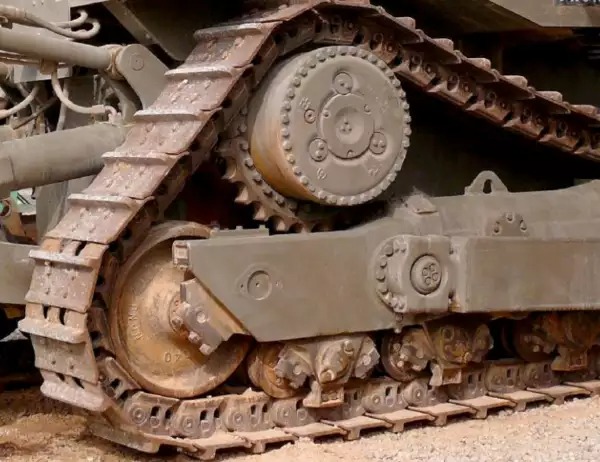

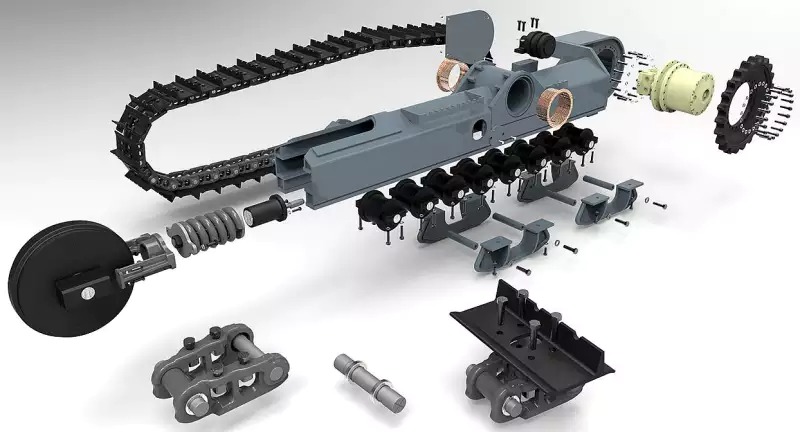

Planetary gearbox in track drive Continuous track, also known as tank track or track, is a vehicle propulsion system in which two or more wheels drive continuous pedals or track shoes. For vehicles and heavy equipment, steel strips are usually made of modular steel plates. For lighter agricultural or construction vehicles, it is made of synthetic rubber reinforced with steel wires. Compared with steel or rubber tires on precision vehicles, the large surface area of the track better distributes the weight of the vehicle, so continuous tracked vehicles can pass through soft soil foundation and are unlikely to get stuck due to sinking. The prominent tread of metal plate is wear-resistant, especially compared with rubber tires. The aggressive tread of the track provides good traction on the soft road surface, but may damage the paved surface. Therefore, some metal tracks can be installed with rubber pads for use on the paved surface.

Continuous track can be traced back to 1770, and is now commonly used in various vehicles, including bulldozers, excavators, tanks and tractors. However, the inherent additional traction, low ground pressure and durability of continuous track propulsion systems can be found on vehicles used in any application.

Track Drive Manufacturer Our company is located in Hangzhou, Zhejiang Province, the famous capital of construction machinery. It is the production base of Shantui bulldozer and PC excavator. We specialize in exporting construction machinery and parts. We can provide original or OEM parts that are compatible with many brands. The products include main reducer, hydraulic pump, slewing motor, chassis system parts, engine parts, excavator cab, Boom Bucket, etc. We will provide you with all high-quality parts at competitive prices. Customers at home and abroad are welcome to contact us and establish mutually beneficial business relations.

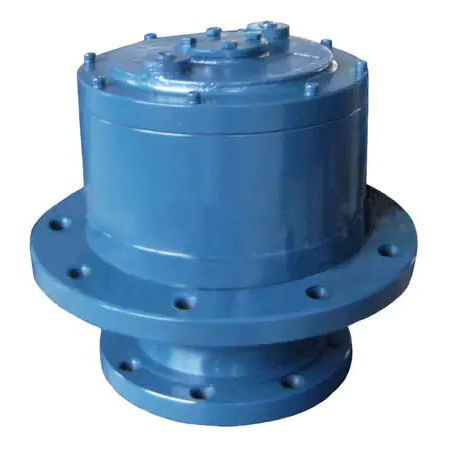

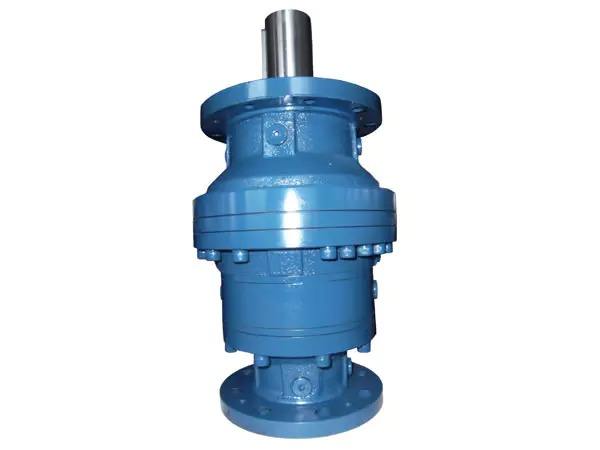

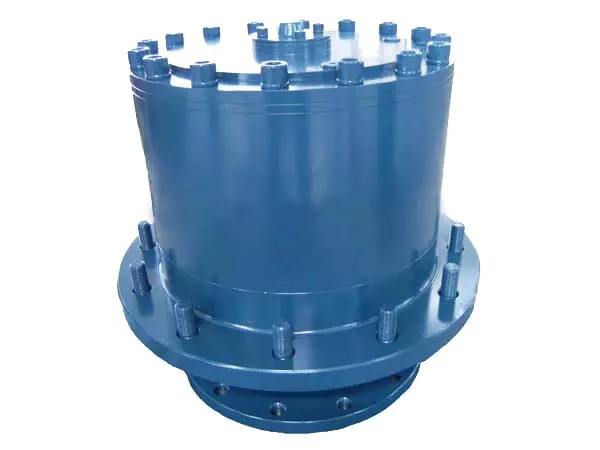

Other Types of Planetary Gearboxes

For more models or customization, please click here！

Click on the picture below for details
