Product Description

G Series Vertical Bridge Type Gantry Machining Center CNC Lathe for Processing of Large Sized Parts.

Products Description

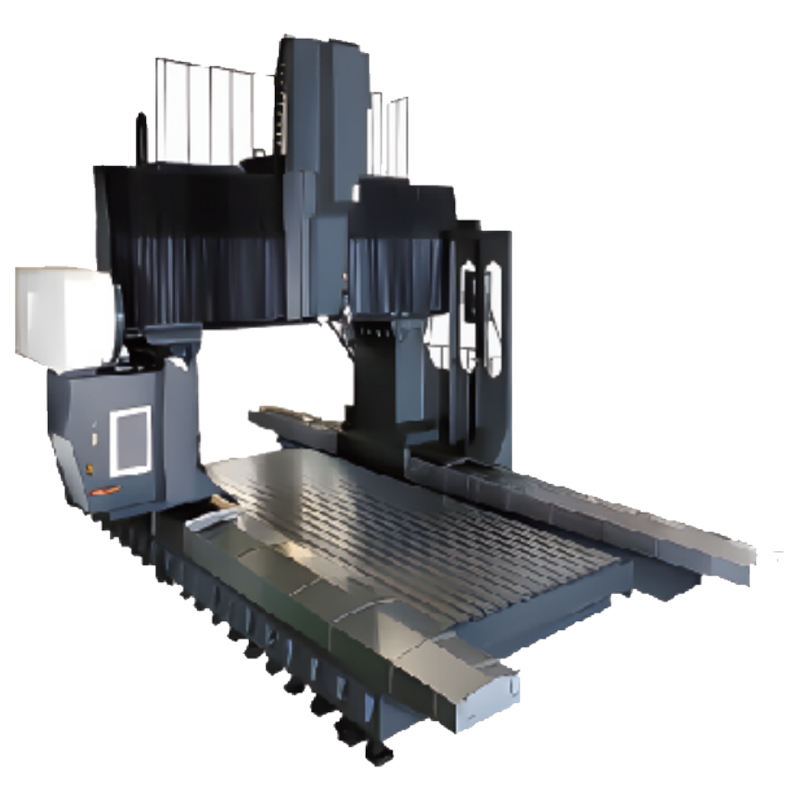

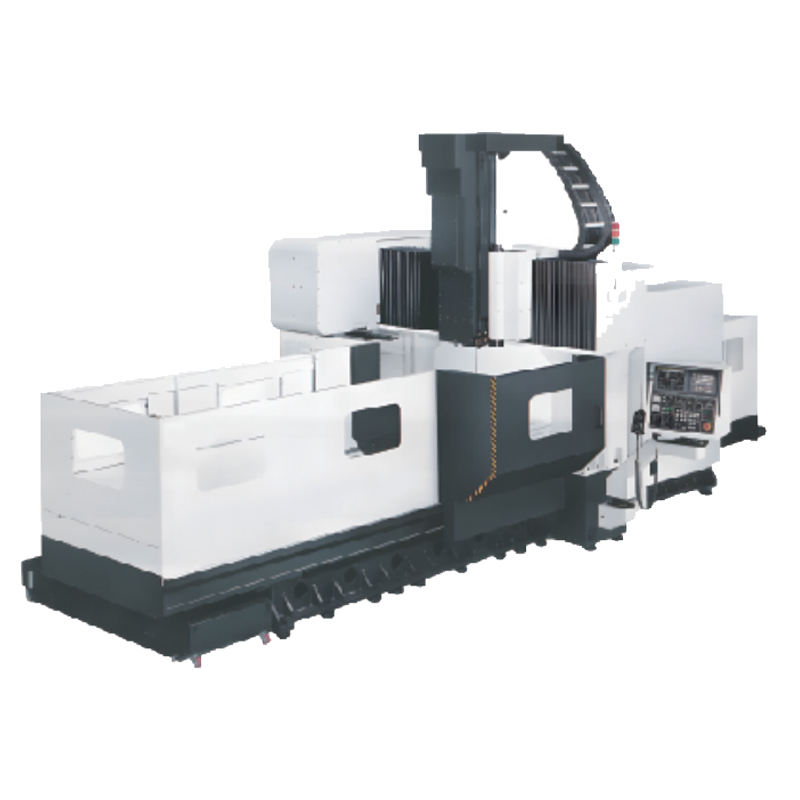

G series Bridge Type Vertical Gantry Machining Center
The maximum output torque of the product spindle can reach 1089Nm
The maximum fast movement speed of the product can reach 20m/min The product can be equipped with various manual or automatic accessory heads, and the travel range can be customized according to user needs;
G Series Vertical Bridge Type Gantry Machining Center CNC Lathe for Processing of Large Sized Parts.
The G series gantry machining center has the structural characteristics of high rigidity and wide processing range. It can be widely used in the processing of large and medium-sized parts in industries such as mold aviation, aerospace, rail transit, automotive, household appliances, medical, etc.
G1060S
G1080S
G10140S
G2060S
G2080S
G20140S
Workbench size
mm
1000*6000
10000*8000
1000*14000
2000*6000
2000*8000
2000*14000
Width of Passing bridge
mm
1700
1700
1700
2700
2700
2700
Distance from spindle end face to workbench
mm
200-1200
200-1200
200-1200
200-1200
200-1200
200-1200
Stroke
mm
6000/1700/1000
8000/1700/1000
1400/1700/1000
6000/2700/1000
8000/2700/1000
14000/2700/1000
Fast movement speed
m/min
20/20/20
20/20/20
20/20/20
20/20/15
20/20/15
20/20/15
Main spindle specifications
°
BT50
BT50
BT50
BT50
BT50
BT50
Maximum spindle speed
rpm
10-6000
10-6000
10-6000
10-6000
10-6000
10-6000
Main motor power
kW
22/26
22/26
22/26
22/26
22/26
22/26
Spindle output torque
N.m
770/1089
770/1089
770/1089
770/1089
770-1089
770/1089
