Product Description

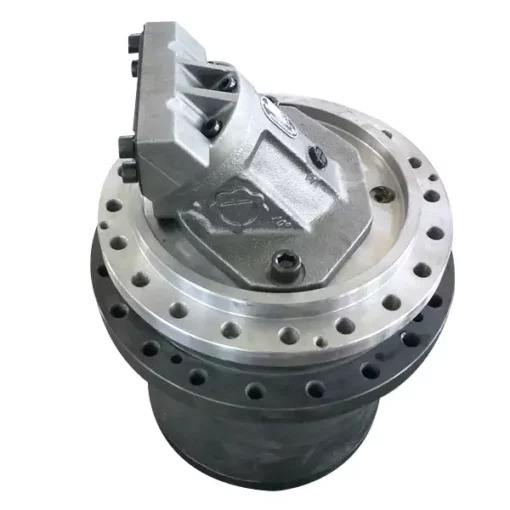

GFW Series Winch Gears Planetary Gearbox Replacement of Bosch Rexroth GFB09T2 GFB17T2 GFB17T3 GFB24T3 GFB26T2 GFB36T3 GFB40T2

Products Description

Replaceable model The installation dimensions of our planetary gearbox, wheel drive gearbox, winch drive gearbox and crawler drive gearbox are completely consistent with those of Bosch Rexroth, and the performance parameters are very close to those of Bosch Rexroth, which can replace Bosch Rexroth products.

The requirements for lifting and reducing frequent heavy loads in modern crane applications are clearly defined. Among the main concerns of machine manufacturers are the flexibility and sensitivity of moving and positioning heavy loads, maximum productivity, and a high level of safety for machine operators and the entire working environment. Ever power's new winch gear mobile GFW 5000 meets all these requirements and is suitable for drilling rigs, mobile and crawler cranes, railways, shipyards and container cranes. They can be combined with a variety of Rexroth variable and fixed motors, including eight nominal sizes.

Features of GFW series winch gear ■ compact design, limited installation space ■ high resistance and robustness ■ customer specific design and efficiency ■ improve rotation characteristics to achieve more sensitive movement and heavy load positioning ■ easy configuration and high availability ■ quiet operation, high durability and safe operation

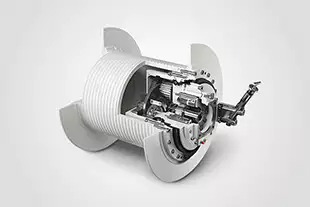

Compact design, limited installation space due to the compact planetary gear box design and partially integrated hydraulic motor, the transmission mobile GFW 5000 is very suitable for use in limited installation areas. The gear unit can be partially integrated into the wire rope drum, belt brake and hydraulic motor. Therefore, they have a good protective position in the cable drum. The band brakes are optimally adapted to their respective nominal dimensions. Hydraulic motor. High resistance and robustness: the more robust design of large tapered roller bearings and all torque transmission components improves the operational safety of the machine and the service life of components. In addition, Bosch Rexroth uses case hardened gears and tempered case hardened ring gears in this series of transmission devices. This ensures the high durability, high service life (even under harsh working conditions) and quiet operation of the gear unit.

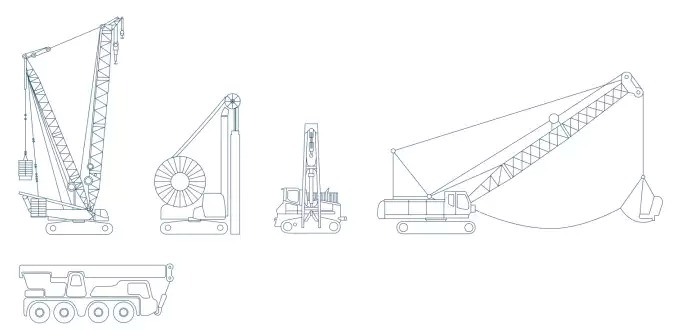

Application of GFW series winch gear *Material handling: mobile crane *Construction machinery: bucket conveyor *Maritime: Ship *Steel plant: furnace door open *Mines and minerals: bucket wheel reclaimers for drilling rigs

Planetary gearbox manufacturer Yongli power is an enterprise specializing in the production of planetary reducer / gearbox. We have developed tens of thousands of specifications of planetary reducer / gearbox, drive device, rotary drive device and winch drive device. The transmission ratio range is 3.3~9000, and the output torque range is 500~1200000 Newton meters. The installation, size and performance parameters of the reducer are exactly the same as those of famous European brands, and can be completely replaced and interchanged.

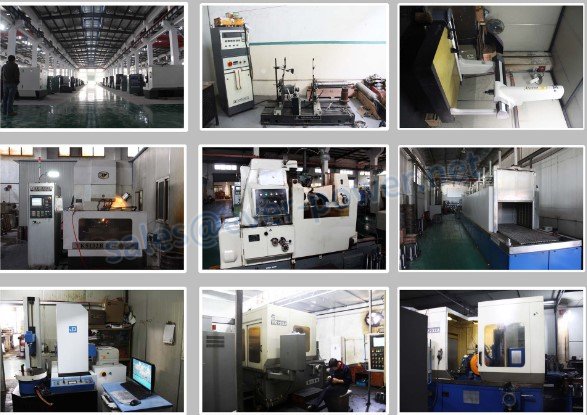

We have the most advanced testing equipment, such as spectrum analyzer, tensile strength tester, impact value tester and hardness tester, magnetic particle flaw detector, sand blasting machine and heat treatment equipment for the detection of chemical composition of rubber materials. In addition, the precision machining workshop has very advanced equipment: 23 CNC lathes, 10 vertical CNC boring and milling centers imported from South Korea, 1 horizontal boring and milling machine, 2 ordinary milling machines, 1 grinder, 10 drilling machines and taps, 2 semi-automatic saws, 1 coordinate measuring machine, 1 projector, 1 processing surface quality testing machine and 1 mahr altimeter. The tolerance of our products can be controlled below 0.01mm. The accuracy of the testing machine is within 0.005mm. ISO9000 has been implemented. Raw materials include waxless castings and forgings of steel, alloy steel and ductile iron. All parts will be tested for material chemical composition, strength and elongation. 80% of our products are exported to North America and European countries. The products are applicable to hydraulic cylinders, truck brakes and engines, such as truck hydraulic cylinder ends, connecting rods, pistons, connecting rods, oil valves, oil seals, rubber seals and brake valves. At present, we are providing truck brake parts for PAC brakes. Some of our main customers are Hunter engineering, Rocore, globe, tiger, tribal, fusion, Emerson, etc.

Other Types of Planetary Gearboxes

For more models or customization, please click here！

Click on the picture below for details
