Helical Gears Pinion Gears Metal Gears Small

0.5 Mod

- Any two part numbers of this pitch will run together

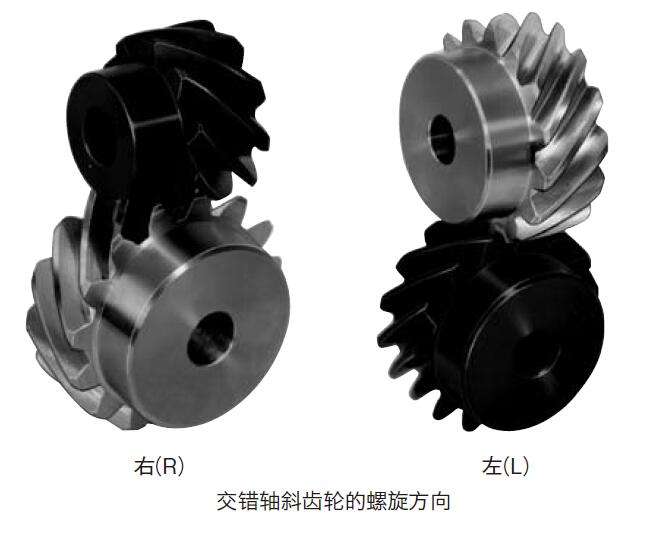

- Right hand teeth run together - supplied as standard
- Left hand teeth available on request P.O.A
- 20° Pressure angle
- Material: Delrin

Options
- ZPH Type (plain) helical gears - P.O.A.
- Different number of teeth
- Modifications available on request: Other material, boring out, Keyways, tapped holes, pin holes.

Accessories
- Clamping sets, screws, keys, dowel pins...

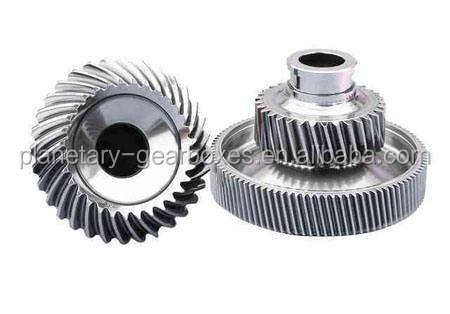

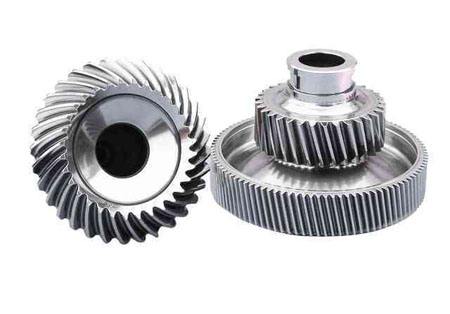

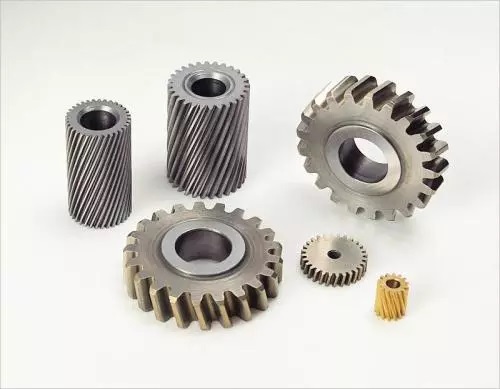

Helical gears are circular gears with angled rather than straight teeth. The angled design of the teeth causes them to engage other gears differently than spur gears, which have straight teeth. As properly matched helical gears come in contact with one another, their level of contact increases gradually, rather than engaging the entire tooth at once. In mechanical systems, this contact causes less impact loading and provides smoother, quieter operation. Helical gears are also stronger and longer lasting than spur gears.

There are a number of important measurements that should be considered when selecting helical gears. Like other gears, a helical gear’s number of teeth, pitch diameter, outside diameter and center distance are all factors in its performance and effectiveness. Helical gears also have center angle and tooth angle measurements, which help define the nature of the gear. Interestingly, if aligned correctly, properly matched helical gears can be used to drive perpendicular shafts, although they are typically used to transmit power between parallel shafts.

There are both single and double helical gears. Single helical gears are the most familiar type, and consist of a single line of angled teeth around the perimeter of the gear. Double helical gears use two tracks of mirrored, angled teeth. These tracks are often separated by a gap for different machining purposes, but can be in direct contact with one another (continuous double helical gears). Double helical gears are stronger than single helical gears and have zero sideways force.

Helical gears can be produced by numerous manufacturing methods in a variety of materials. The methods used include shaping, milling, hobbing and casting. Typically, a number of finishing methods are also employed. Materials used range from steel and cast iron to aluminum bronze and different hard synthetics. The materials used in gear design also play a large role in its performance and should be evaluated based on the application (where temperature, speed and load all help determine requirements).

Also I would like to take this opportunity to give a brief introduction of our Ever-Power company:

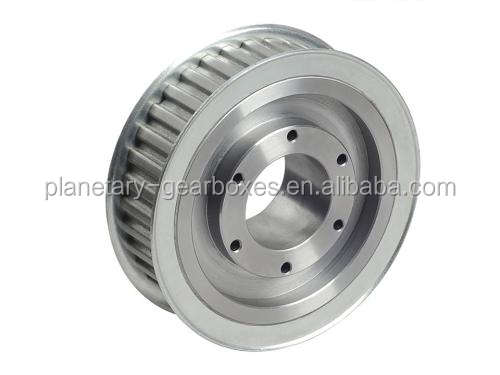

Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, Sprockets ,rollar chains, bevel gear, pulleys and racks in china.

We have exported many products to our customers all over the world, we have long-time experience and strong technology support.

Some of our customer :
Italy: COMER,GB GEABOX ,SATI, CHIARAVALLI, AMA , Brevini
Germany: SILOKING ,GKN ,KTS
France: Itfran, Sedies
Brazil: AEMCO ,STU
USA: John Deere , BLOUNT, Weasler, Agco, Omni Gear, WOODS
Canada: JAY-LOR , CANIMEX ,RingBall
......

-Ø Our Company with over twelve year's history and 1000 workers and 20 sales.
-Ø With over 100 Million USD sales in 2017
-Ø With advance machinery equipments
-Ø With large work capacity and high quality control, ISO certified.
......

you also can check our website to know for more details, if you need our products catalogue, please contact with us.
