Product Description

High Speed CNC Lathe Machine Tool Vertical V10P Machining Center for Drilling Tapping Milling Boring

Products Description

V10P Vertical Maching Center

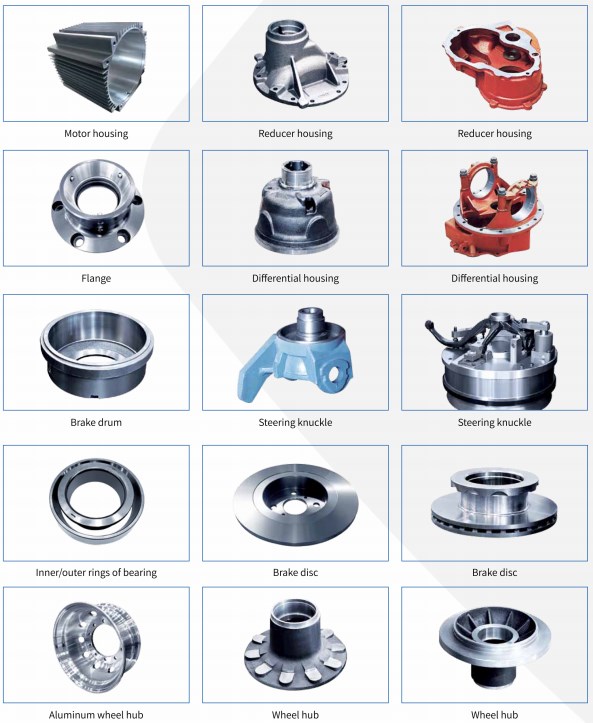

The V10P direct spindle high-speed machining center is a CNC machining machine tool with three coordinate linkage and superior cost-effectiveness. It can achieve drilling, reaming, countersinking, tapping, milling, boring and other processing. It is suitable for machining parts with high precision and productivity requirements, eliminating special fixtures and marking processes, greatly reducing labor intensity for workers. This machine tool is suitable for drilling, milling, boring, tapping and other processing of small and medium-sized discs, plates, shells, valve bodies, cams and other parts with high hole spacing accuracy in industries such as automobiles, motorcycles, aerospace, instruments, instruments, electronics, molds, etc. The processing is programmed and the production cycle is shortened.

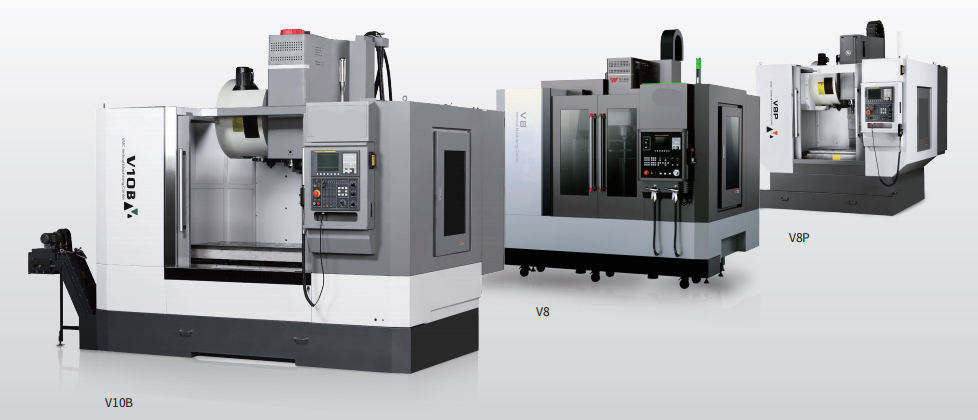

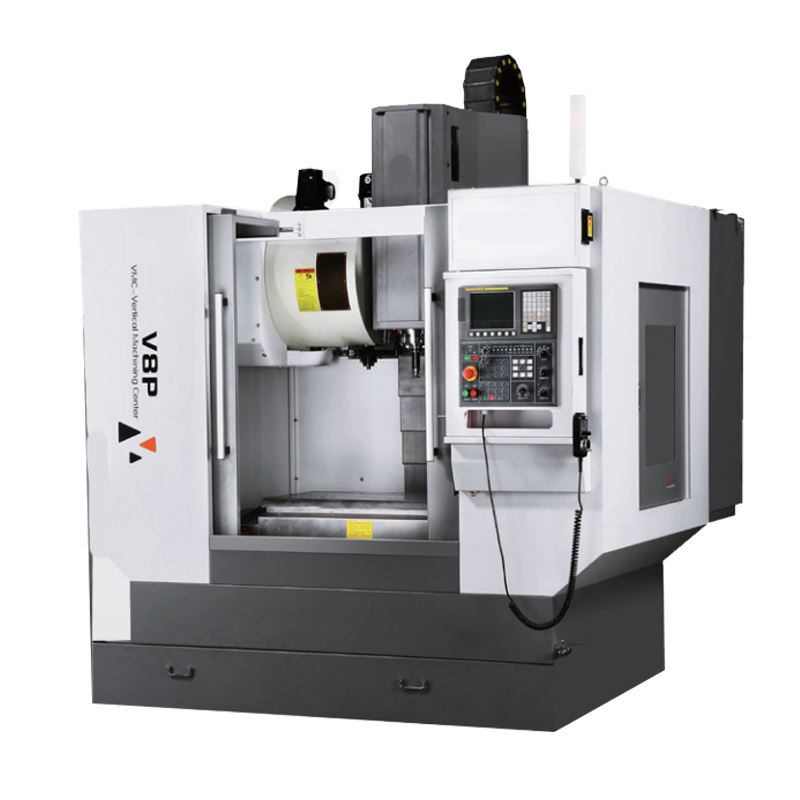

Item	Unit	V8P	V10P	V10B	V11B
Worktable
Worktable size	mm	500x1000	520x1200	610×1200	610×1300
T-slot （N×W×D）	mm	5x18x100	5x18x100	5x18x100	5x18x100
Travel
Axis travel （X/Y/Z)	mm	850/500/550	1000/520/535	1000/620/630	1100/610/630
Machining range
Distance from spindle center to column front	mm	582	582	667	667
Distance from spindle end to work table	mm	100~650	80~615	120~750	110~740
Machine dimension
L×W×H	mm	2460x2355x2860	2600x2355x2860	2850x2500x2820	3000x2500x2750
Machine weight
Max. load bearing of worktable	kg	500	500	800	1000
Machine weight	kg	5500	5800	6800	7000
Spindle
Spindle hole taper		BT40	BT40	BT40	BT40
Spindle power	Kw	7.5/11	7.5/11	11/15	11/15
Max. spindle speed	rpm	12000	12000	10000	10000
Feed
Max. feed speed	mm/min	10000	10000	10000	10000
Rapid feed speed (X/Y/Z)	m/min	48/48/32	48/48/32	36/36/30	36/36/30

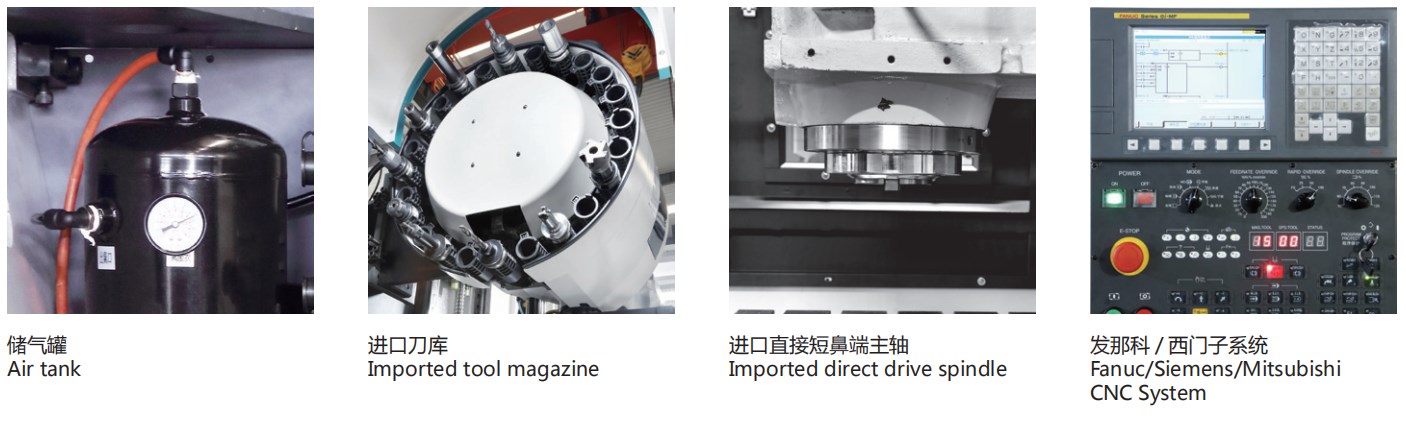

Tool Magazine
Tool magazine capacity	T	24	24	24	24
Tool change time（T-T）	s	2.5	2.5	2.5	2.5
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	mm	0.008	0.008	0.010	0.010
Re-positioning accuracy(X/Y/Z)	mm	0.005	0.005	0.005	0.005

Application

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
