Horizontal Clamp (Type I) 08B1GC-I 08B2GC-I Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

Discover Raydafon Group's Horizontal Clamp (Type I) 08B1GC-I 08B2GC-I Stainless Steel Gripper Roller Chain, engineered for precise form fill and vacuum seal wrapping in packaging. Crafted from durable stainless steel, it ensures reliability and superior performance, perfect for industries seeking efficient automation solutions. Elevate your operations with unmatched quality and innovation.

Send Inquiry

Product Description

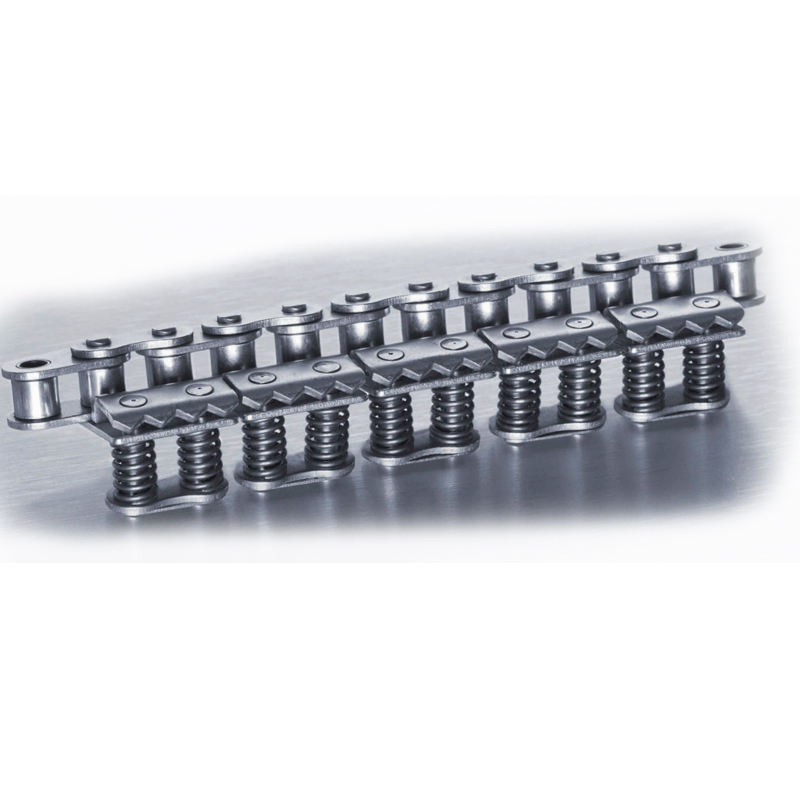

Horizontal Clamp (Type I) 08B1GC-I 08B2GC-I Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

Product Description

08B	1	GC	A	SS
Chain Size	Strand	Gripper Chain	Type	Base Chain Material

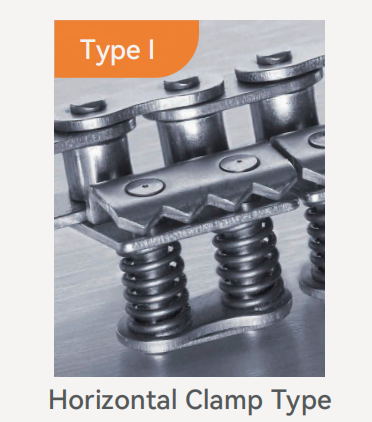

Horizontal Clamp (Type I)

with two springs of 30N each allows uniform film clamping Clamp increases film retention and smooth operations. design

Code	DIN / ISO	Material					Pitch	Inside Width	Roller Dia.	Clamp Force	Tensile Strength
		Base Chain	Clamp	Spring	P mm	b1 Max mm	d1 Max mm	Q-C N	Q Min kN
08B1GC-I	08B-1	SS	SS	SS	12.700	7.75	8.51	60	15.0
08B1GC-I		08B-1	NP	SS	SS	12.700	7.75	8.51	60	18.0
08B2GC-I	08B-2	SS	SS	SS	12.700	7.75	8.51	60	25.5
	08B-2	NP	SS	SS	12.700	7.75	8.51	60	32.0

With more than 20 years experience of stainless steel chains production, we are becoming one of the leading manufacturers in China. After continuous study and investment, we now have almost all popular Gripper Chain models. Those high-performanced chains are widely welcomed by both OEM and after-market, domestic and overseas customers.

Gripper Chain Features

1.Gripper Chains with Base Chains available both in Nickel Plated and Stainless Steel, for excellent corrosion
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.

Applications

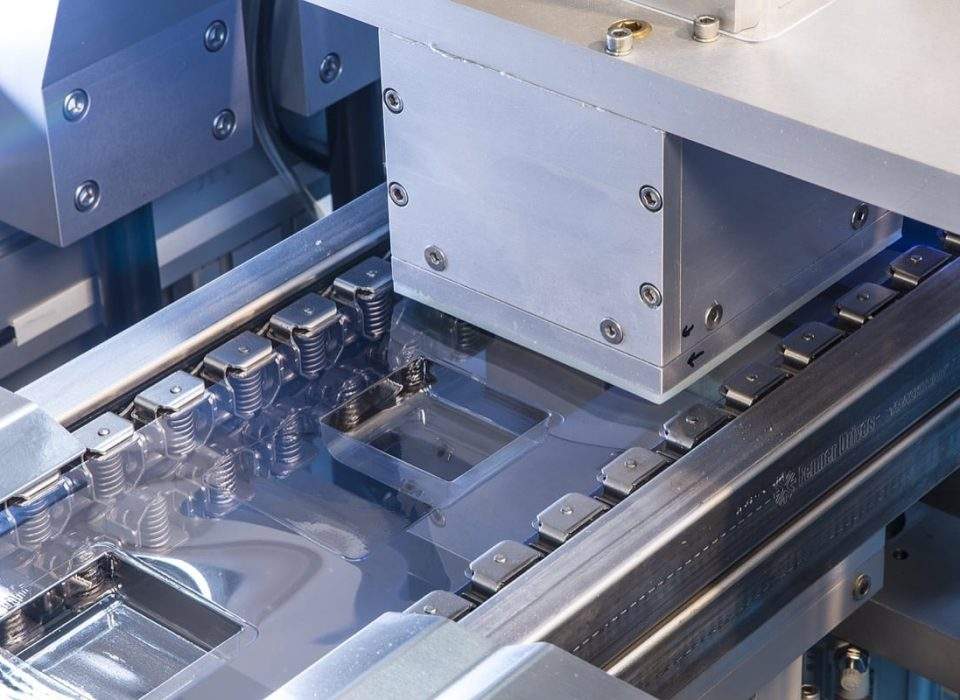

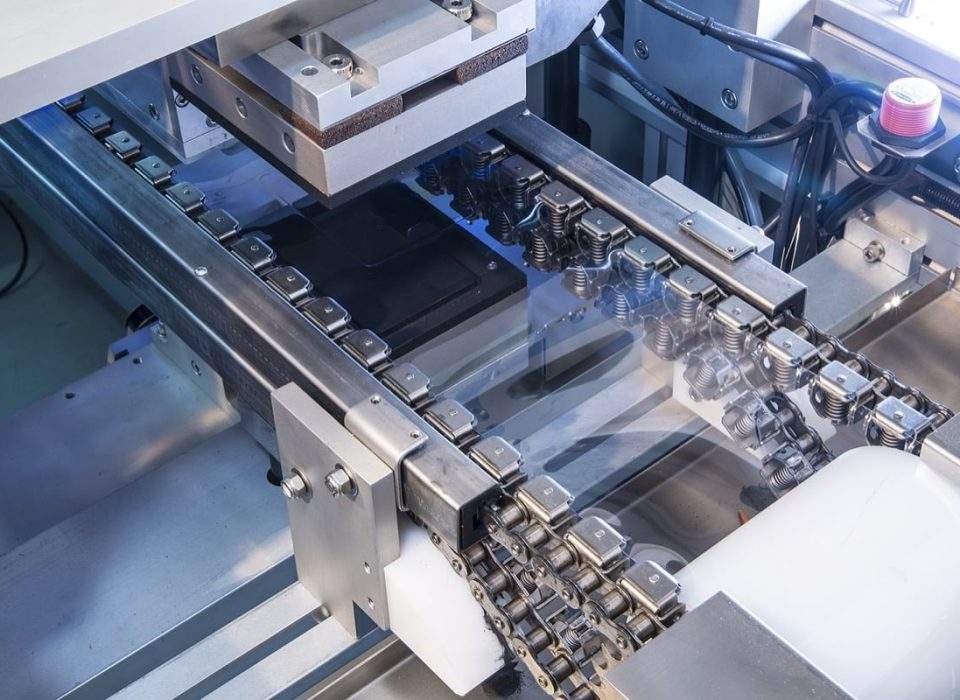

Gripper chains are widely used in various industries for Form, Fill and Vacuum Seal wrapping applications

--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.

^{For more types，Please click here！}

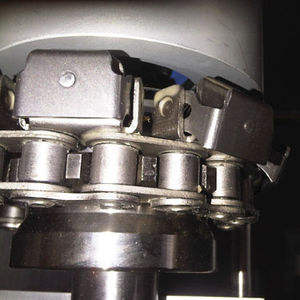

We provide chain matching sprockets with various specifications, which can be customized according to your drawings
