Product Description

Hydraulic Tracked Vehicle Power Wheel Winch Gear Drive Planetary Gearbox Speed Reducer Replacement Of Brevini Bonfiglioli

Product Description

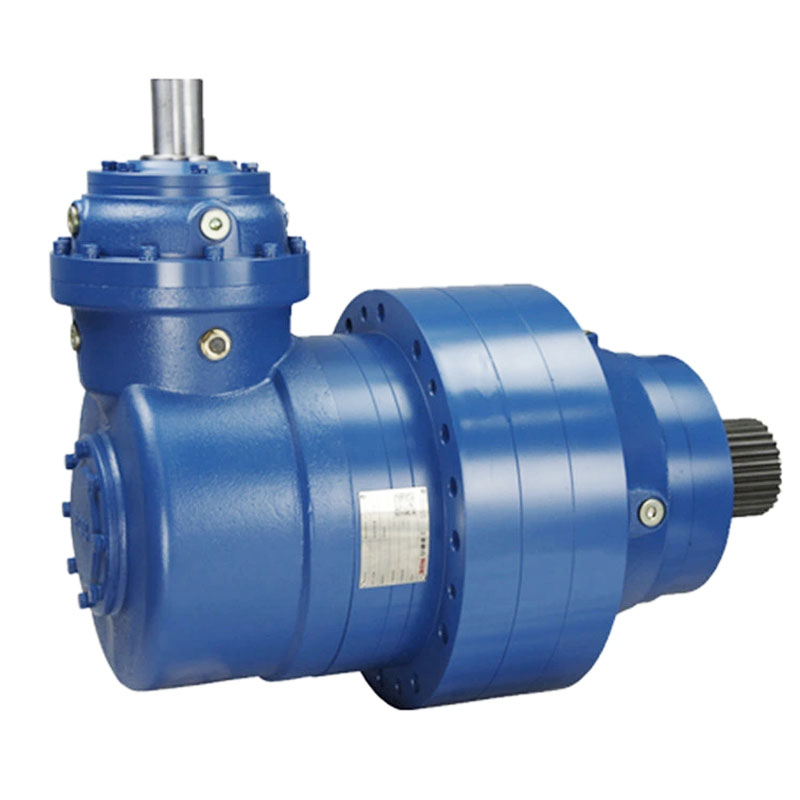

Superior Performance The Ever-power EP300 Series inline planetary gear reducer is the best gearbox solution for all applications requiring high torque with minimal dimensions such as fixed industrial equipment and heavy self-propelled machines. This planetary gear transmission solution offers a substantial improvement over ordinary gearboxes in terms of space occupation and weight This gearbox combines high performance with low cost and compact size, excellent reliability simple installation and reduced maintenance The EP300L series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications The NB300L Series is also available in a high power version , linking the performance of our planetary technology with the high quality and reliability of gearboxes : a solution that is more efficient , quieter , more compact , and more cost-effective compared with traditional gear units

Key Features

1 . Torque range : 1000-450.000 Nm

2. Transmissible mechanical power . up to 540 kw

3. Gear ratios : 34-9.000

4 . Gear unit versions : in line

5. Output confiqurations

1 ) Foot and flange mounted

2 ) Output shaft : solid with key , splined , splined hollow

3 ) Hollow with shrink disc

6 . Input configurations

1 ) Flanged axial piston hydraulic motors

2 ) Hydraulic orbit motors

3 ) IEC and Nema motor adaptors

4 ) Solid input shaft

7 . Hydraulic brake : hydraulically released parking brake

8 . Electric brake . DC and AC type

Type	Max torque N.m	Range of ratio （i）	Max input speed（rpm）	braking torque（N.m）
400T1-420T4	1300-450000N.m	6.09-421	1000-3500	130-3000
400W1-419W3	870-275000	6.09-365	1000-3500	130-3000
601L1-615L3	1750-60000	5.77-108	1000-3000	210-1000
300L-321L	1000-500000
300R-321R	1000-500000

Click here for more model types！

Application

Construction (dryers, crushing machines, mixing mills, cranes, mobile scaffolds) Material handling (gantry cranes, mobile dock cranes, movable stocks, bridge cranes) Waste and sewage treatment (rotating ﬁlters, thickeners, clariﬁers, Warm hoists, agitators) Mine and quarry machines (drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines) Wind energy (pitch drives, yaw drives) Substructures (movable roofs, movable gantries, piling) Steel processing machines (conveyors, extruders, cutting machines, roll benders, rolling mills) Food industry (mixing machines, mixers, conveyors, fruit extractor machines)
