JS17 Ratio 104:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Beam Carrier Fog Cannon Truck Crane

JS17 Ratio 104:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Beam Carrier Fog Cannon Truck CraneProducts DescriptionJS17 Slewing DriveProduct features:1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristicsof flexible and......
Send Inquiry
Product Description

JS17 Ratio 104:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Beam Carrier Fog Cannon Truck Crane

Products Description

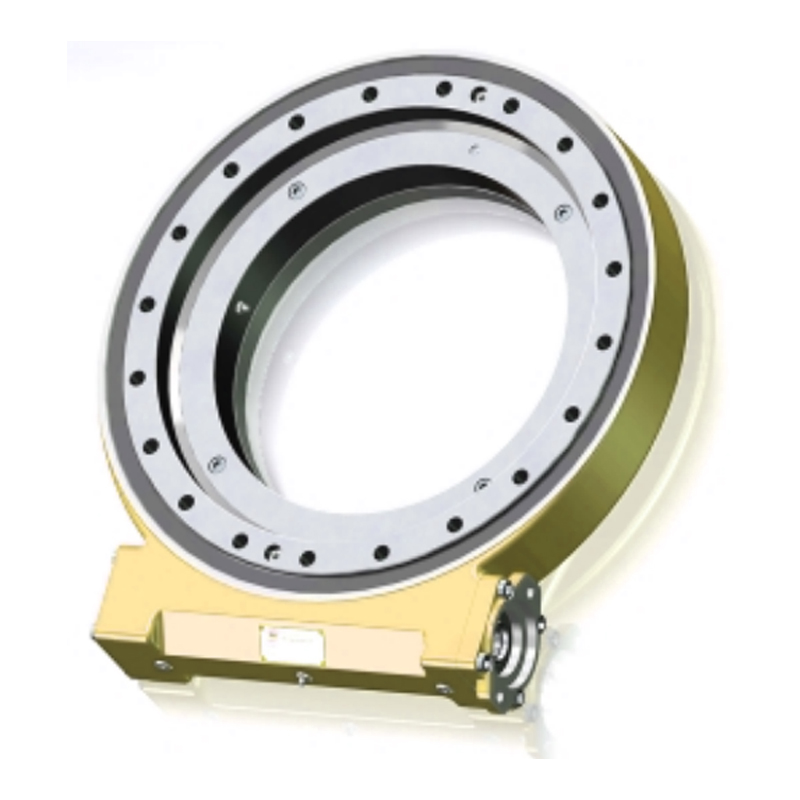

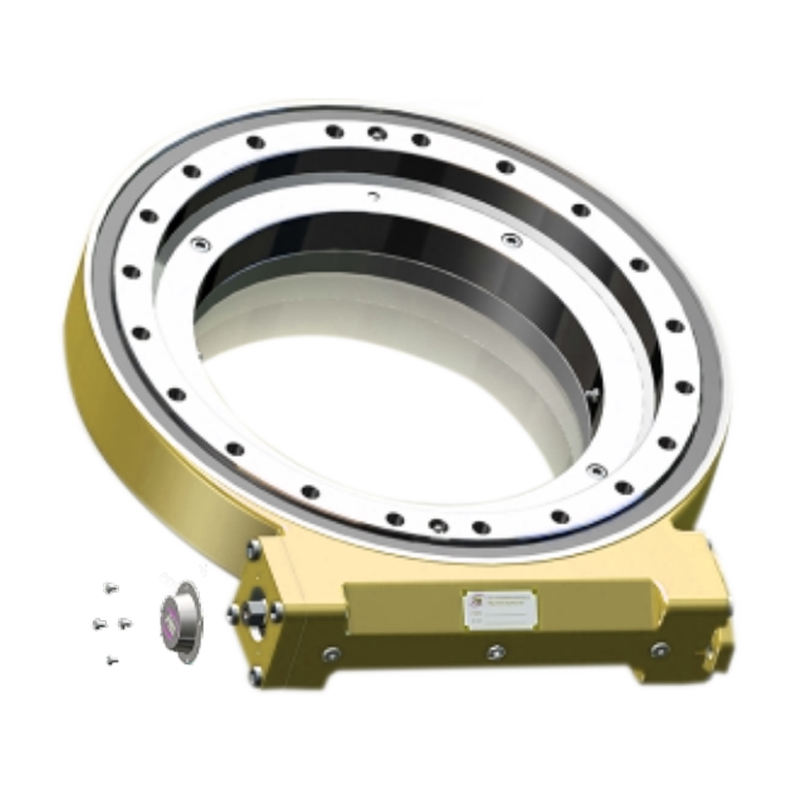

JS17 Slewing Drive

Product features:
1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristics
of flexible and diverse installation. Compared with other types of reducers, it has the characteristics of small volume, easy
installation and maintenance.
2. The product adopts a blind hole design and a skeleton oil seal structure, with reliable sealing performance. The sealing area can avoid direct sunlight, effectively dust-proof and waterproof, and the protection level can reach IP65, suitable for outdoor use.
3. Use specialized machine tools and equipment to produce toroidal worm gears with multiple teeth in contact, transmitting greater torque and being able to withstand greater axial, radial, and overturning forces.
4. The product design adopts universal dimensions both domestically and internationally, making it convenient for later
replacement.
JS17 Ratio 104:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Beam Carrier Fog Cannon Truck Crane
JS17 Ratio 104:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Beam Carrier Fog Cannon Truck Crane
JS17 Ratio 104:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Beam Carrier Fog Cannon Truck Crane
JS17 Ratio 104:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Beam Carrier Fog Cannon Truck Crane
JS17 Ratio 104:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Beam Carrier Fog Cannon Truck Crane
For more details, please click here to contact us！
Basic Parameters
Norminal Torque
10KN.m（SF=1 at n=1 rpm）
Maxmium Torque
15.6KN.m
Ratio of Worm Gear
104:1
Backlash
0.1°
Efficiency
about 40%
Temperature
-30--+80℃
Holding Torque
72.3KN.m
Axial Static Load    Coa
1166KN
Radial Static Load    Cor
435KN
Axial Dynamic Load     Ca
280KN
Radial Dynamic Load   Cr
231KN

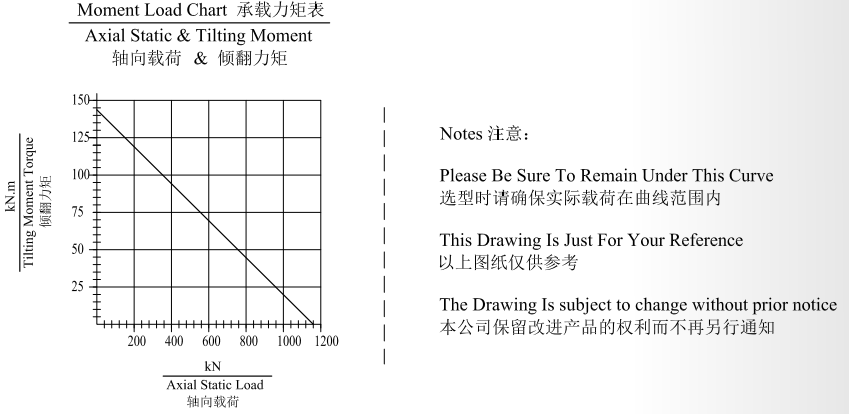

Tilting Moment Torque    Com
143KN.m

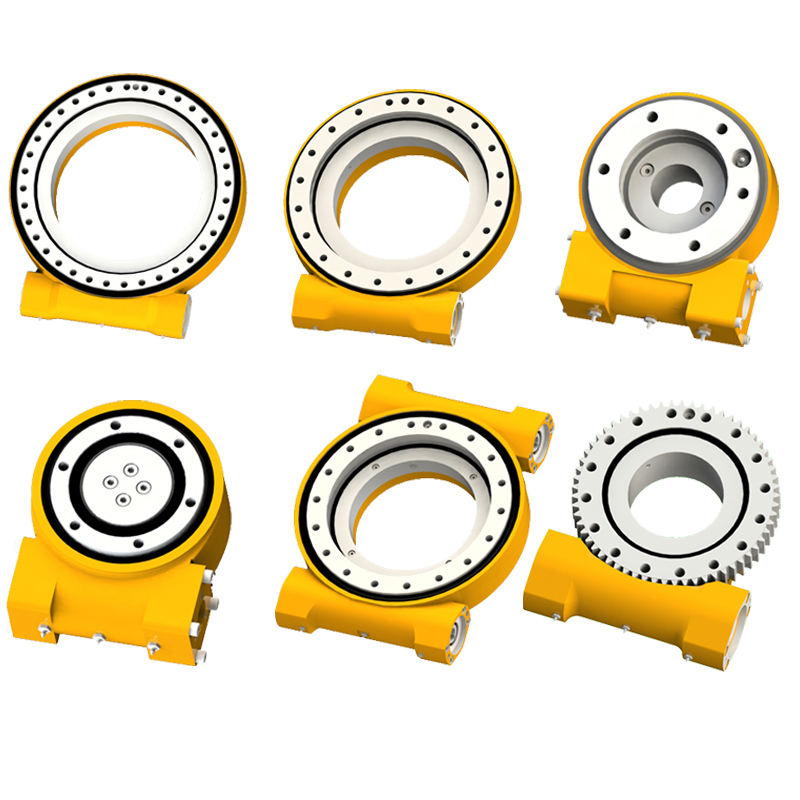

Application
JS17 Ratio 104:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Beam Carrier Fog Cannon Truck Crane
JS17 Ratio 104:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Beam Carrier Fog Cannon Truck Crane
JS17 Ratio 104:1 Slewing Drive Gearbox Reducer Gear Slew Drive for Beam Carrier Fog Cannon Truck Crane
