JW25 Ratio 104:1 Slewing Drive Gearbox Worm Gear Slew Drive for Beam Carrier Fog Cannon

JW25 Ratio 104:1 Slewing Drive Gearbox Worm Gear Slew Drive for Beam Carrier Fog CannonProducts DescriptionJW25 Worm DriveProduct features:1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristicsof flexible and diverse installat......
Send Inquiry
Product Description

JW25 Ratio 104:1 Slewing Drive Gearbox Worm Gear Slew Drive for Beam Carrier Fog Cannon

Products Description

JW25 Worm Drive

Product features:
1. The horizontal structure allows the product to be installed horizontally, vertically, and obliquely, with the characteristics
of flexible and diverse installation. Compared with other types of reducers, it has the characteristics of small volume, easy
installation and maintenance.
2. The product adopts a blind hole design and a skeleton oil seal structure, with reliable sealing performance. The sealing area can avoid direct sunlight, effectively dust-proof and waterproof, and the protection level can reach IP65, suitable for outdoor use.
3. Use specialized machine tools and equipment to produce toroidal worm gears with multiple teeth in contact, transmitting greater torque and being able to withstand greater axial, radial, and overturning forces.
4. The product design adopts universal dimensions both domestically and internationally, making it convenient for later
replacement.
JW25 Ratio 104:1 Slewing Drive Gearbox Worm Gear Slew Drive for Beam Carrier Fog Cannon
JW25 Ratio 104:1 Slewing Drive Gearbox Worm Gear Slew Drive for Beam Carrier Fog Cannon
JW25 Ratio 104:1 Slewing Drive Gearbox Worm Gear Slew Drive for Beam Carrier Fog Cannon
JW25 Ratio 104:1 Slewing Drive Gearbox Worm Gear Slew Drive for Beam Carrier Fog Cannon
JW25 Ratio 104:1 Slewing Drive Gearbox Worm Gear Slew Drive for Beam Carrier Fog Cannon
For more details, please click here to contact us！
Basic Parameters
Norminal Torque
27KN.m（SF=1 at n=1 rpm）
Maxmium Torque
40KN.m
Ratio of Worm Gear
104:1
Backlash
0.1°
Efficiency
about 40%
Temperature
-30--+80℃
Holding Torque
158.3KN.m
Axial Static Load    Coa
960KN
Radial Static Load    Cor
2360KN
Axial Dynamic Load     Ca
945KN
Radial Dynamic Load   Cr
470KN

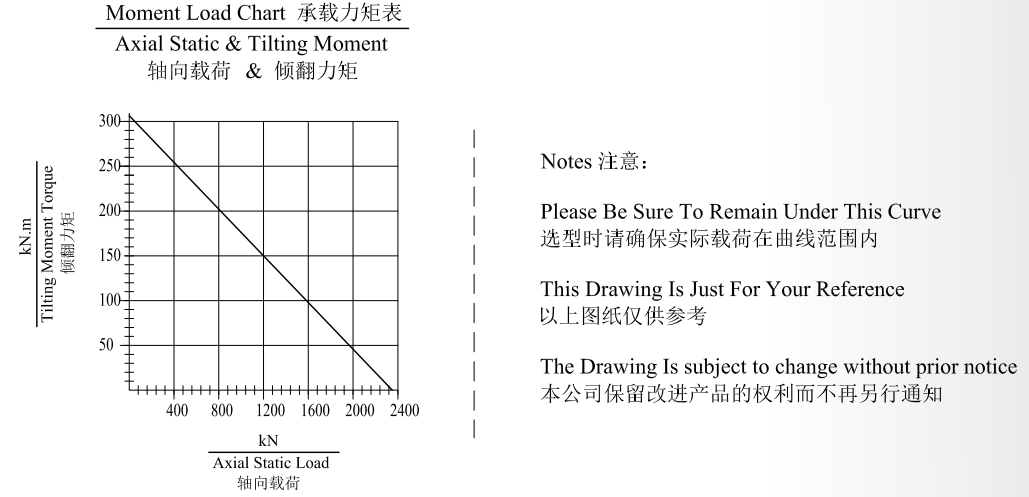

Tilting Moment Torque    Com
310KN.m
Application
JW25 Ratio 104:1 Slewing Drive Gearbox Worm Gear Slew Drive for Beam Carrier Fog Cannon
JW25 Ratio 104:1 Slewing Drive Gearbox Worm Gear Slew Drive for Beam Carrier Fog Cannon
JW25 Ratio 104:1 Slewing Drive Gearbox Worm Gear Slew Drive for Beam Carrier Fog Cannon
