Product Description

Model 6 Max. Input Speed 3500rpm Swing Drives Planetary Gearbox Replacement of AUBURN (Style SW)

Products Description

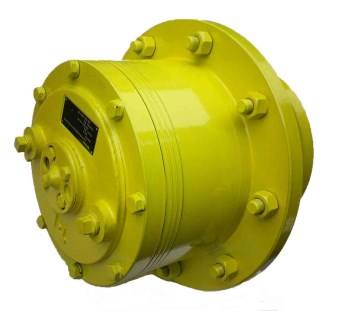

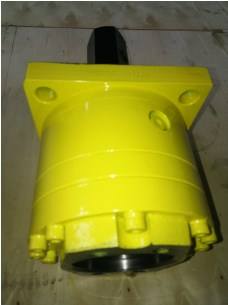

Model 6 rotary drive planetary gearbox. The Type 6 rotary drive planetary gearbox consists of a planetary gear system directly installed on the machine frame and driven by a hydraulic motor. The gearbox is designed to provide high torque output and precise speed control, thereby achieving smooth and efficient machine rotation. It can also handle high radial and axial loads, making it very suitable for use in demanding industrial applications. One of the main features of the Model 6 rotary drive gearbox is its compact and efficient design. The gearbox is designed to be lightweight and compact, thereby reducing the overall weight of the equipment and improving fuel efficiency. It also has a high reduction ratio, allowing for high torque output at low input speeds, which is crucial for efficient hydraulic motor operation. The design of the Model 6 rotary drive gearbox is also easy to maintain and repair. It adopts a modular design that facilitates disassembly and reassembly, thereby reducing downtime and maintenance costs. It also uses high-quality materials and components, which are designed to withstand heavy usage and harsh operating conditions. Overall, the Type 6 rotary drive planetary gearbox is a reliable and efficient solution suitable for heavy-duty equipment that requires 360 degree rotation. Its high torque output, precise speed control, and compact design make it an ideal choice for excavators, cranes, and other machines that require smooth and efficient rotation. The Model 6 rotary drive gearbox is easy to maintain and repair, making it an economical, efficient, and reliable solution for various industrial and commercial applications.

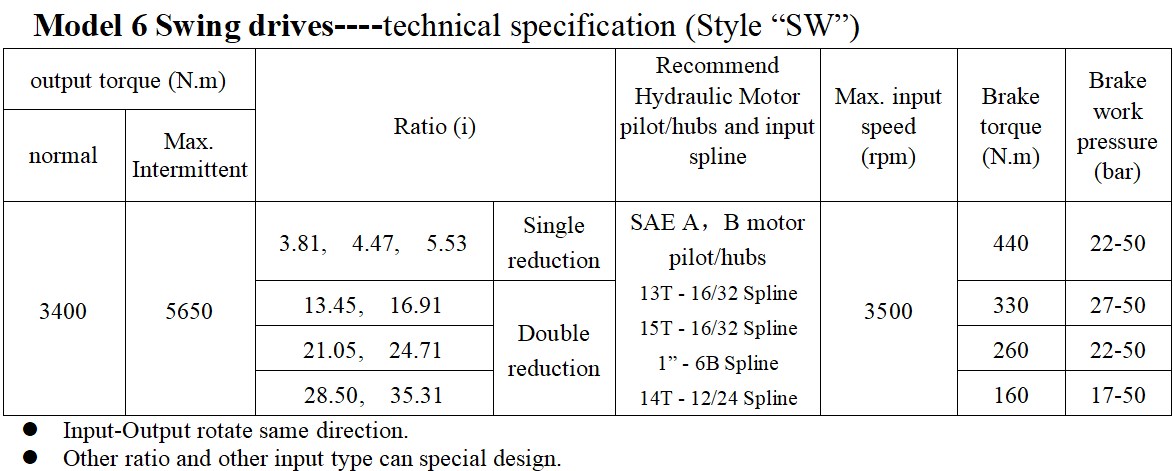

FEATURE CHART: MODEL 6 SWING DRIVES, SINGLE and DOUBLE REDUCTION (Style “SW”)

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 6

6SW1
6SW2
6SW3
6SW4

6SW2

MOTOR PILOT/HUBS

INPUT SHAFT OPTIONS

SAE A
SAE B

1-1/2”Keyed

A
B

KO

MOTOR INPUT SPLINE

INPUT SHAFT OPTIONS

13T - 16/32
1”- 6B
14T - 12/24
15T - 16/32
INPUT SHAFT OPTIONS

13
6B
14
15
O

RATIO OPTIONS

3.81, 4.47, 5.53
13.44, 16.97, 21.53
24.71, 28.50, 35.31

03, 04, 05
13, 16, 21
24, 28, 35

OUTPUT SHAFT OPTIONS

17T-5DP Gear
17T-4DP Gear
12T-3DP Gear
23T-12/24 Spline

G1
G2
G3
23

BRAKE

160N.m
260N.m
330N.m
440N.m
Without Brake

B4D
B4F
B4H
B4L
WO

B4F

Example of complete order code:

6SW2

B4F

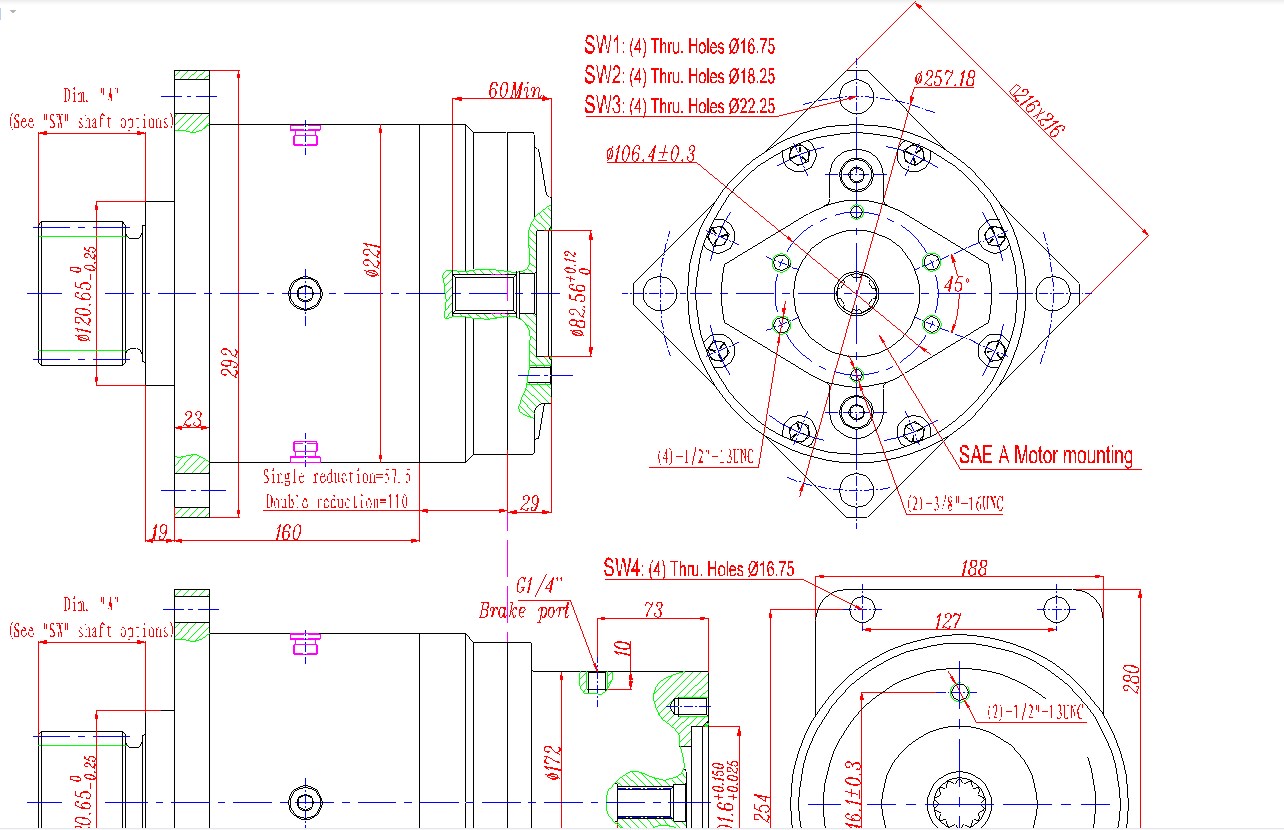

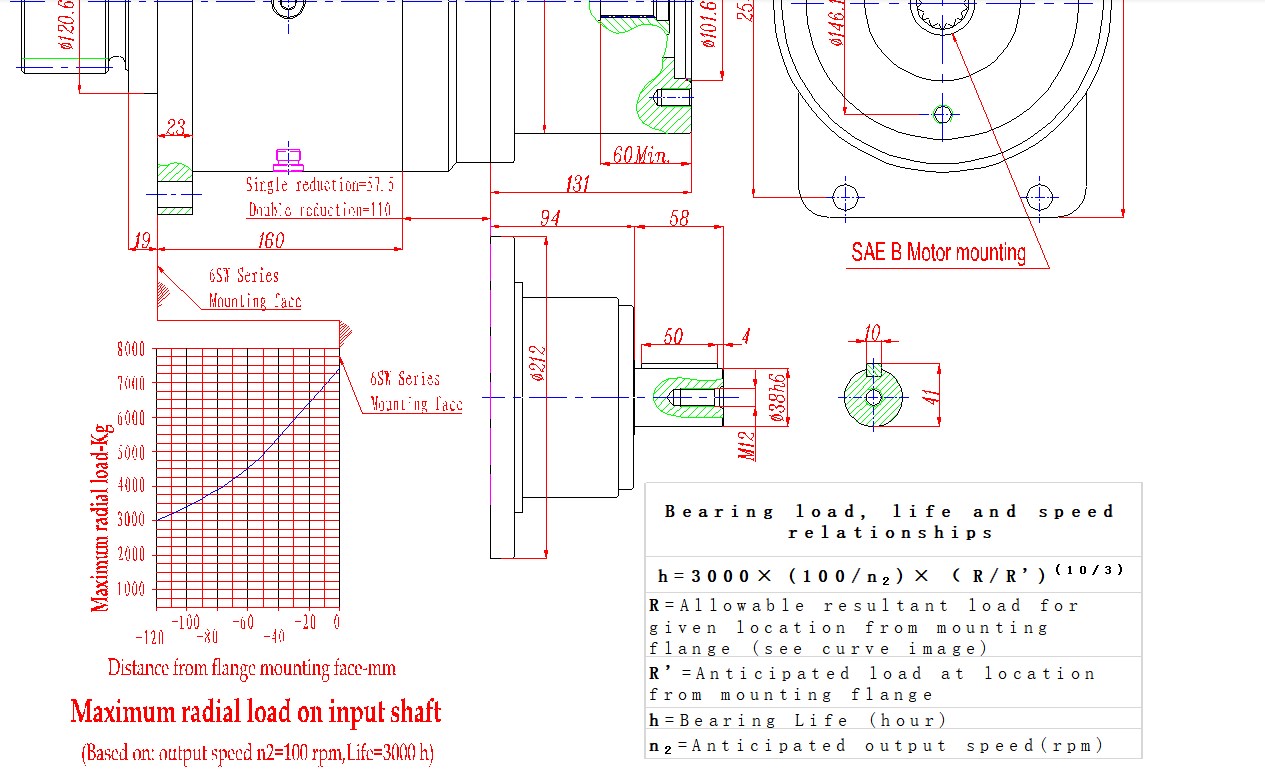

Model 6 Swing drives---dimensions (Style “SW”)

Application of Type 6 Rotary Drive Planetary Gearbox The T6 rotary drive planetary gearbox is a key component of many heavy-duty equipment that requires 360 degree rotation, such as excavators, cranes, and other construction equipment. It aims to provide high torque and precise speed control for the smooth and efficient operation of these machines. Type 6 rotary drive planetary gearbox The following are some specific applications of the Type 6 rotary drive planetary gearbox: Excavator: An excavator is a heavy-duty machine used for excavating and transporting soil and other materials. The rotation system of the excavator adopts a 6-type rotary drive planetary gearbox, which can achieve precise positioning and efficient operation. Crane: A crane is used to lift and move heavy objects, usually requiring 360 degree rotation. The Type 6 rotary drive planetary gearbox is used in the rotating system of cranes, providing high torque and precise speed control required for safe and efficient operation. Forestry equipment: Forestry equipment, such as logging and logging machines, requires precise control and high torque output to operate effectively. The Type 6 rotary drive planetary gearbox is used in the rotation system of these machines, providing the necessary power and accuracy for efficient harvesting and processing of wood. Mining equipment: Mining equipment such as excavators and loaders require high torque and precise speed control to operate efficiently under harsh mining conditions. The Type 6 rotary drive planetary gearbox is used for the rotation system of these machines, providing necessary power and control for efficient mining operations. Marine equipment: Marine equipment, such as cranes and winches, require high torque and precise speed control to operate safely and efficiently in marine environments. The Type 6 rotary drive planetary gearbox is used for the rotation system of these machines, providing necessary power and control for efficient offshore operations. Overall, the Type 6 rotary drive planetary gearbox is an important component of many heavy-duty equipment that requires 360 degree rotation. Its high torque output, precise speed control, and compact design make it an ideal choice for efficient and reliable operation in various industrial and commercial applications.

How to Choose a Suitable Type 6 Rotary Drive Planetary Gearbox? Choosing the correct Type 6 rotary drive planetary gearbox requires careful consideration of several important factors. The following are some basic factors to consider when selecting a Model 6 swing drive gearbox: 1. Torque requirements: Determine the torque requirements for a specific application. The torque capacity of the gearbox should be sufficient to handle the maximum torque load of the machine. 2. Speed requirements: Determine the speed requirements for specific applications. The gearbox should be able to provide necessary speed control to meet the requirements of the machine. 3. Input power: Determine the input power requirements for a specific application. The gearbox should be compatible with the power source used in the machine, such as hydraulic motors. 4. Installation requirements: Determine the installation requirements for specific applications. The gearbox should be compatible with the installation configuration of the machine. Type 6 rotary drive planetary gearbox 5. Environmental factors: Consider environmental factors that may affect the operation of the gearbox, such as temperature, humidity, and exposure to dust or water. 6. Maintenance requirements: Consider the maintenance requirements of the gearbox, such as maintenance frequency, maintenance convenience, and the availability of replacement parts. 7. Manufacturer reputation: Consider the importance and experience of gearbox manufacturers in producing high-quality and reliable transmissions. Considering these factors and consulting with gearbox experts or manufacturers, you can choose the appropriate Type 6 rotary drive planetary gearbox for your specific application. Choosing a suitable gearbox helps to ensure the reliable and efficient operation of the machine, while reducing maintenance costs and downtime.

Our Factory At present, we produce NB3 series planetary gearbox, NB4 series track transmission, NB7 series rotary transmission, NB6 series wheel transmission, and American series planetary gear transmission; It has developed to 10000 specifications, with a reduction ratio range of 3.3 to 9000 and an output torque range of 500 to 450000N. m. Its products are exported to over 90% of the United States, Europe, Australia, South America, the Middle East, and Southeast Asia. We use well-known planetary gearboxes from Europe and America to manufacture products. The installation and dimensions of planetary gearboxes are identical and can be completely interchangeable for use. The company has a number of automatic integrated machining centers, CNC grinders, CNC gear machines, CNC machine tools and other high-quality equipment made in Made in Taiwan and Made in Taiwan, thus ensuring high-precision parts. Employees must undergo strict professional training, good skills, and excellent qualities. Adopting modern computer systems for comprehensive management, we have successfully passed the ISO9001:2000 quality system certification. This catalog introduces the Model 3 to Model 8 series of planetary gear transmissions in the United States. We provide services in design, engineering, prototype support, as well as complete testing and production capabilities. Product applications include aerial elevators, agriculture, automobiles, construction, forestry, industry, and the ocean.
