PWD Winch Drive Gearbox Replacement of Brevini Riduttori PWD2100 PWD3150 PWD3200 PWD3300 PWD3500 PWD3700

PWD Winch Drive Gearbox Replacement of Brevini Riduttori PWD2100 PWD3150 PWD3200 PWD3300 PWD3500 PWD3700Video Description00:00/00:00Products DescriptionProduct overview of PWD Winch Drive GearboxThey have two tightly mounted flanges, one connected to the winch frame and the other fixed to the cable ......

Send Inquiry

Product Description

PWD Winch Drive Gearbox Replacement of Brevini Riduttori PWD2100 PWD3150 PWD3200 PWD3300 PWD3500 PWD3700

Products Description

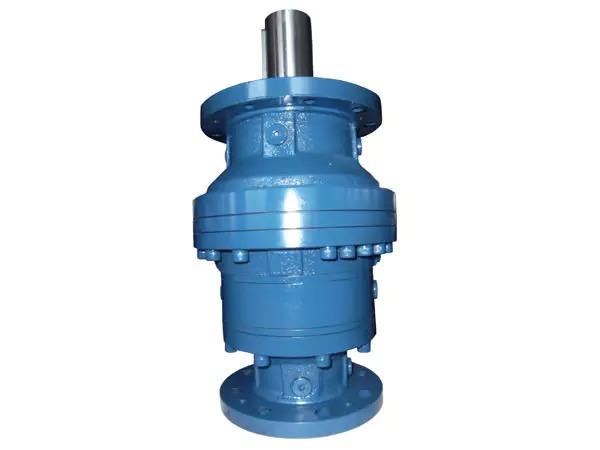

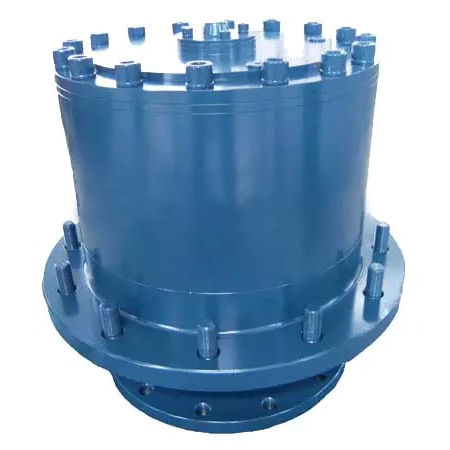

Product overview of PWD Winch Drive Gearbox

They have two tightly mounted flanges, one connected to the winch frame and the other fixed to the cable drum. Therefore, the drive housing is installed as the main drum. The drum must also be secured on the other side with suitable supports or brackets. Ever power provides standard products for winch manufacturers, which can adapt to all drum sizes and lifting specifications. The processing and surface treatment of the transmission device and roller support must comply with the specifications given in this catalogue. All reducers are equipped with hydraulically operated multi disc negative brakes. The performance data given in this catalogue relate to FEM standards, especially M5 (t5-l2) with an output speed of 15 rpm. This is the most common classification in the market for mobile cranes and truck mounted winches. Ever power is a leader in performance calculation and verification, using powerful software (precalc) to verify whether gear units comply with other standards and any specific operating conditions. Ever power holds the type approval certificate of PWD, SLW and SMW product series issued by DET Norske Veritas for rapid certification.

Tech Data of PWD Winch Drive

Size	Output Torque(Nm)	Max Input Speed(rpm)	Weight(Kg)
PWD2100	6100	4000	65
PWD3150	9700	5000	130
PWD3200	12800	5000	140
PWD3300	18500	5000	162
PWD3500	22200	5000	205
PWD3700	34900	5000	300
PWD38500	70000	5000	380
PWD31100	85000	5000	435

These new lightweight winch drives have a full range of functions, including: *The sealing system is designed to withstand the harsh marine environment; *Improve power density; *The shell is made of cast iron or steel; *High radial bearing capacity provides reliable lifting performance for heavy load; *Integrated hydraulic fault safe negative braking or electromagnetic braking; *Other safety features include backstops, torque limiters, sensors, and right angle and right angle configurations.

In addition to winch drives, Dena also provides Brevini brand axial piston motors, axial piston pumps, planetary gearboxes, rotary drives, proportional directional valves, winches, industrial planetary transmissions, wheel drives and other sports products for the marine and offshore industries.

Application of PWD winch drive This series is designed for the winch drive of auxiliary lifting systems on ship loaders, deck cranes, cable and pipe laying tensioners, rubber tyred gantry cranes and other marine equipment. These winch drives are designed for personnel lifting applications in the marine industry and comply with third-party ship certifications, including API 2C and ATEX standards.

Planetary gearbox manufacturer Ever power manufactures planetary reducers, winches and hydraulic components for the machinery industry. We focus on R & D and provide differentiated services based on accumulated technology and know-how. Ever power R& D is committed to improving professional ability to achieve high efficiency, especially to ensure durability. 1) Planetary reducer for shipbuilding, construction equipment and wind power generation. 2) Winch system, as required 3) Hydraulic piston motors and pumps for shipbuilding, construction equipment and industrial machinery. 4) Provide engineering solutions (product 3D design & solutions & optimization design)

Other Types of Planetary Gearboxes

For more models or customization, please click here！

Click on the picture below for details
