Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.
 | Belt Section | SPZ |
| Specification | SPZ95-03 | |
| Product Code | CP041884 | |
| Pitch Diameter (P) | 95mm | |
| Outside Diameter (O) | 99mm | |
| J | 66mm | |
| K | 15mm | |
| L | 25mm | |
| F | 40mm | |
| Match Taper Bush | 1610 | |
| Fit shaft diameter | 10mm ~ 42mm/1/2" ~ 1-5/8" | |
| Weight | 0.99 |

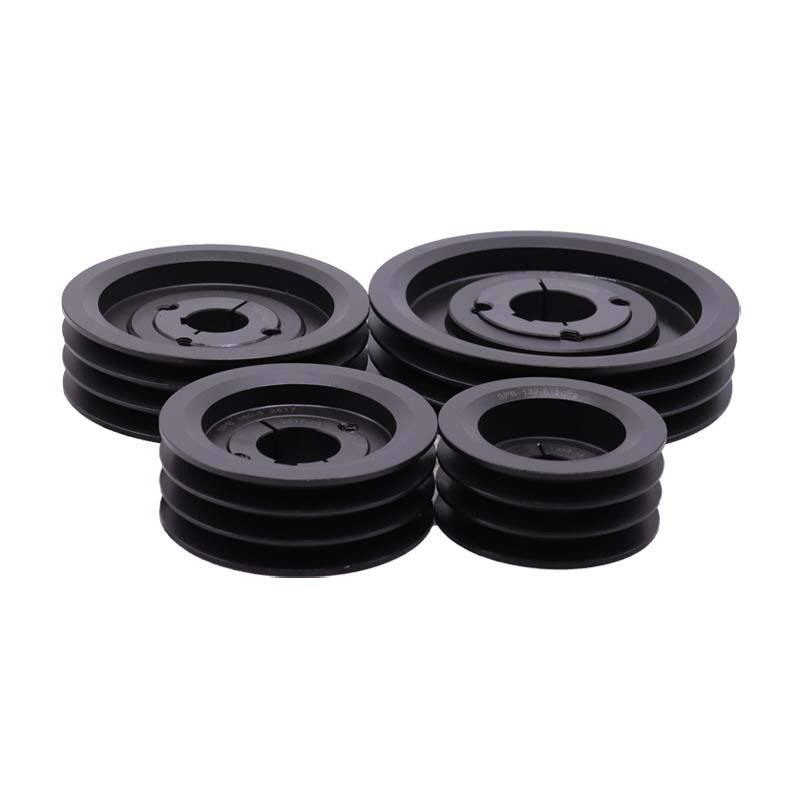

Product Name:V Belt Pulley
Belt Section: SPZ
Grooves: 3 grooves
Equipped with Bush:
| European standard taper bush | ||
| Bush | Bore Range(mm) | |
| 1108 | 10,11,12,14,15,16,18,19,20,22,24,25,28 | |
| 1210 | 11,12,14,15,16,18,19,20,22,24,25,28,30,32 | |
| 1610 | 14,15,16,18,19,20,22,24,25,28,30,32,35,38,40,42 | |
| 2012 | 18,19,20,22,24,25,28,30,32,35,38,40,42,45,48,50 | |
| 2517 | 20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60 | |
| 3020 | 25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75 | |
Please contact us or go to homepage for more product information.
