Product Description

Standard Frame Clamp 08B1GC-B Stainless Steel Gripper Roller Chains for Form Fill and Vacuum Seal Wrapping Applications

Product Description

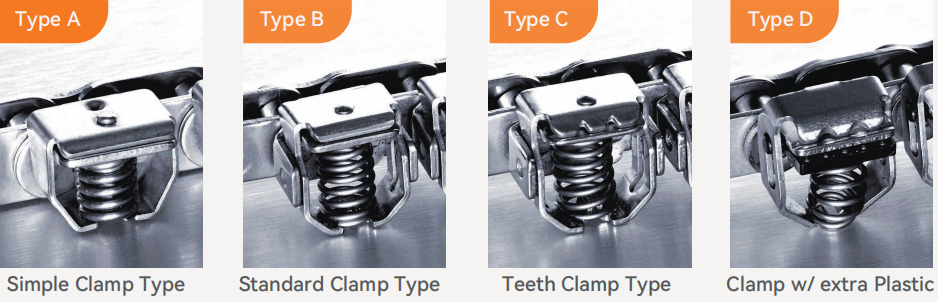

The Simple Frame Clamp (Type A) opens vertically by slight lateral movement to follow the cam shape.

08B	1	GC	A	SS
Chain Size	Strand	Gripper Chain	Type	Base Chain Material

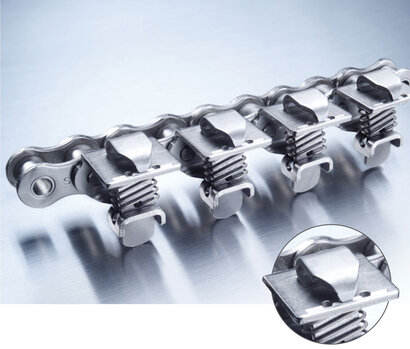

The Standard Frame Clamp (Type B)
allows for a combination of vertical movement and horizontal rotation to ensure easy film engagement and scrap release

Code	DIN / ISO	Material					Pitch	Inside Width	Roller Dia.	Clamp Force	Tensile Strength
		Base Chain	Clamp	Spring	P mm	b1 Max mm	d1 Max mm	Q-C N	Q Min kN
08B1GC-B	08B-1	SS	SS	SS	12.700	7.75	8.51	50	15
08B1GC-B		08B-1	NP	SS	SS	12.700	7.75	8.51	50	18

With more than 20 years experience of stainless steel chains production, we are becoming one of the leading
manufacturers in China. After continuous study and investment, we now have almost all popular Gripper Chain
models. Those high-performanced chains are widely welcomed by both OEM and after-market, domestic and
overseas customers.

Gripper Chain Features

1.Gripper Chains with Base Chains available both in Nickel Plated and Stainless Steel, for excellent corrosion
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.

Applications

Gripper chains are widely used in various industries for Form, Fill and Vacuum Seal wrapping applications

--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.
