Superior Quality Steel Pintle Chain of AL662 AL662H AL667H AL667X AL667K AL667XH AL88C AL88K AL88XH AL88W AL308 AL58

Superior Quality Steel Pintle Chain of AL662 AL662H AL667H AL667X AL667K AL667XH AL88C AL88K AL88XH AL88W AL308 AL58Video Description00:00/00:00Product DescriptionEVER-POWER Steel Pintle Chain is designed for dependability and quality, at a great price.The Allied-Locke Steel Pintle Chain is well s......

Send Inquiry

Product Description

Superior Quality Steel Pintle Chain of AL662 AL662H AL667H AL667X AL667K AL667XH AL88C AL88K AL88XH AL88W AL308 AL58

Product Description

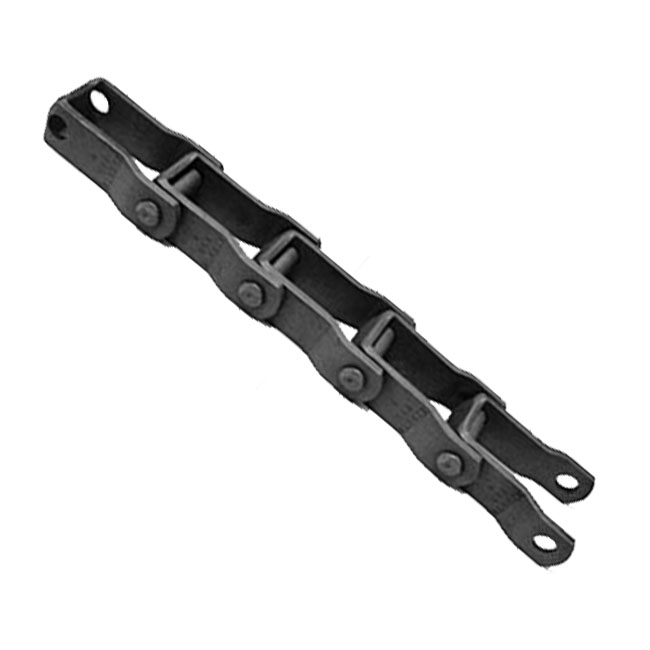

EVER-POWER Steel Pintle Chain is designed for dependability and quality, at a great price.The Allied-Locke Steel Pintle Chain is well suited for a wide range of applications, such as salt- sand-fertilizer spreaders, bunk feeders, hay handling equip-ment and other similar conveying systems.
EVER-POWER Steel Pintle Chains feature all heat treated parts with quad staked pins.The open barrel construction minimizes pin surface contact with the barrel, eliminating freezing due to corrosion. The open barrel design elimi-
nates material build up in the roots of sprockets.
This assures smoother operation, uniform link wear, greater resistance to fatigue and longer service life.

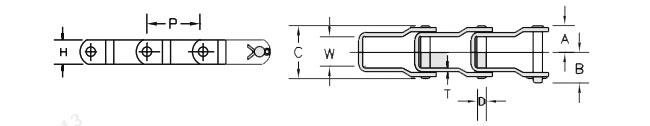

Chain Size	Links Per 10¢	Wt. Per 10¢Lbs.	Min. Avg. Tensile Strength Lbs.	Pitch	Rivet Length	Inside Width	Pin Dia.	Height	Thickness
				P	C	W	D	H	T
AL662	72	10.5	8,500	1.664	1.609	.906	.281	.719	.125
AL662H	72	16.5	9,500	1.664	1.828	.871	.312	.875	.172
AL667H	52	11.7	9,500	2.313	1.734	1.000	.312	.875	.125
AL667X	53	18.6	15,000	2.250	1.953	1.063	.437	.937	.172
AL667K	53	24.4	20,000	2.250	2.220	1.078	.437	1.062	.200
AL667XH	53	28.0	26,000	2.250	2.260	1.078	.468	1.062	.224
AL88C	46	33.6	30,000	2.609	2.595	1.250	.500	1.125	.250
AL88K	46	23.0	20,000	2.609	2.222	1.078	.437	1.062	.200
AL88XH	46	33.2	26,000	2.609	2.595	1.250	.500	1.125	.250
AL88W	46	38.0	30,000	2.609	2.599	1.250	.562	1.320	.250
AL308	40	57.0	50,000	3.075	2.625	1.310	.625	1.500	.310
AL58	30	55.0	50,000	4.000	3.359	2.031	.625	1.500	.310

*inner attachment available
