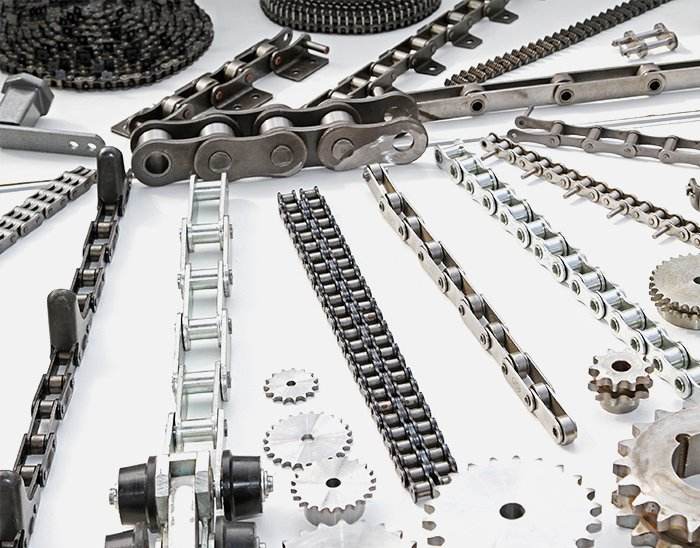

Short Pitch Conveyor Chain Attachments

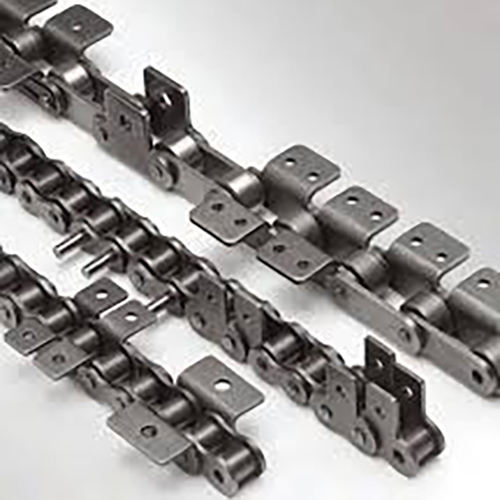

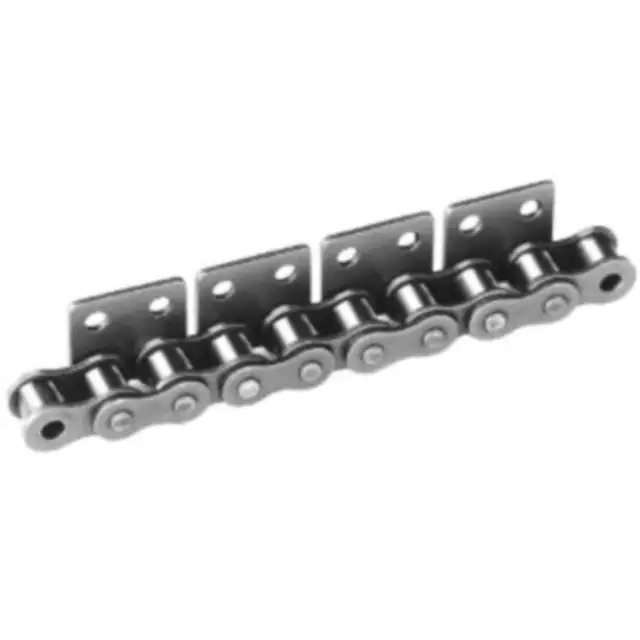

We have a full line of premium quality stainless steel roller chain attachments in stock. We have ANSI #25 - #80 attachments,double pitch stainless steel roller chain attachments, and metric roller chain attachments. Typically we stock these attachments in 304-grade stainless steel, but 316-grade is available upon request. We can also supply stainless steel roller chain with stainless steel attachments already assembled onto the chain, just allow a few days for assembly. To get a quote or for more information, please contact us and we will be happy to assist you.

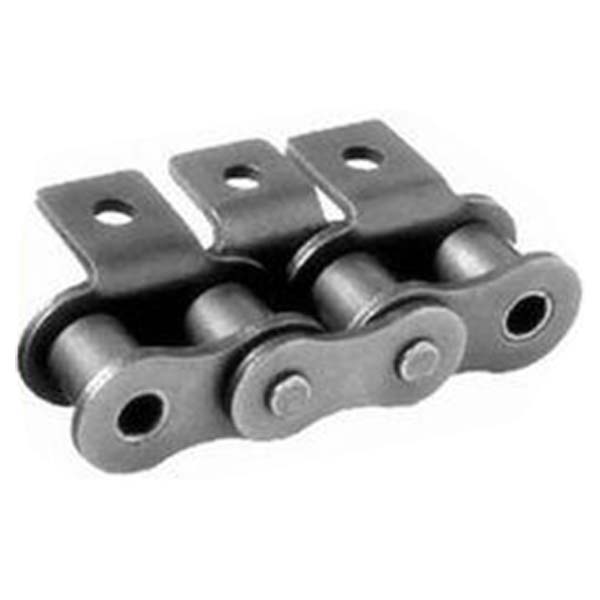

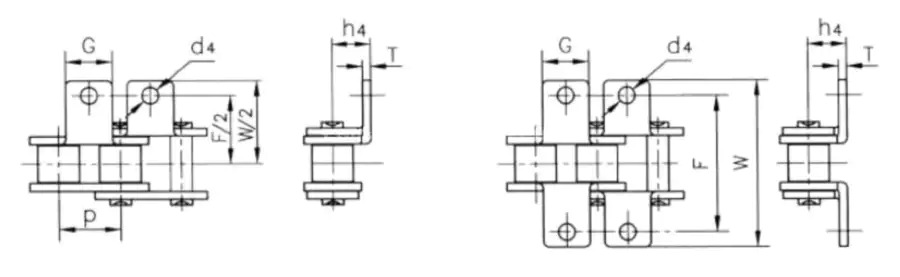

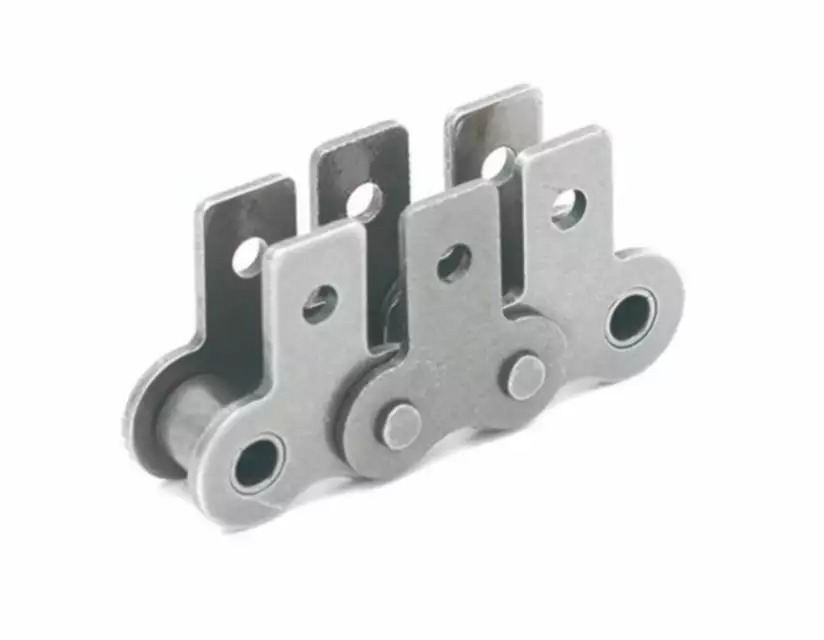

Roller Chain with A-1 K-1 Attachment

A-1

K-1

DIN Chain No.	ANSI Chain No.	P	G	F	W	T	h4	d4
		mm	mm	mm	mm	mm	mm	mm
08ASS	40SS	12.7	9.5	25.4	35.2	1.5	7.9	3.4
10ASS	50SS	15.875	12.7	31.75	46.2	2.03	10.3	5.5
12ASS	60SS	19.05	15.9	38.1	55.6	2.42	11.9	5.5
16ASS	80SS	25.4	19.1	50.8	64.8	3.25	15.9	6.8
20ASS	100SS	31.75	25.4	63.5	87.3	4	19.8	9.2
24ASS	120SS	38.1	28.6	76.2	108.5	4.8	23	9.8
28ASS	140SS	44.45	34.9	88.9	123	5.6	28.6	11.4
32ASS	160SS	50.8	38.1	101.6	142.8	6.4	31.8	13.1
*06BSS		9.525	8	19.04	27	1.3	6.5	3.5
08BSS		12.7	9.5	25.4	36.4	1.6	8.9	4.5
10BSS		15.875	14.3	31.75	44.6	1.7	10.31	5.3
12BSS		19.05	16	38.1	52.4	1.85	13.46	6.4
16BSS		25.4	19.1	50.8	72.6	3.1	15.88	6.4

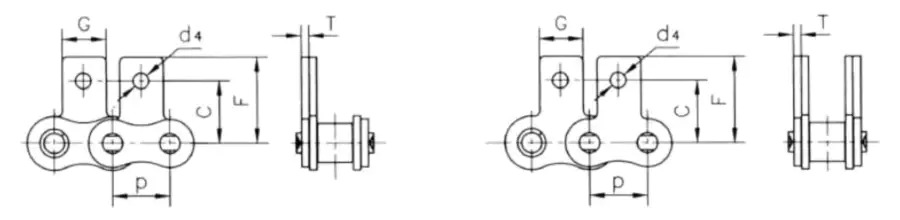

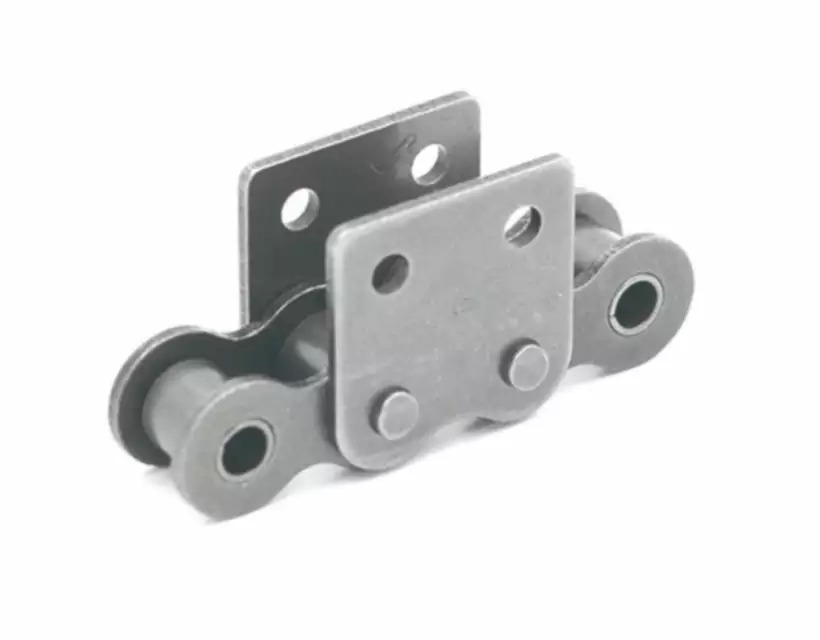

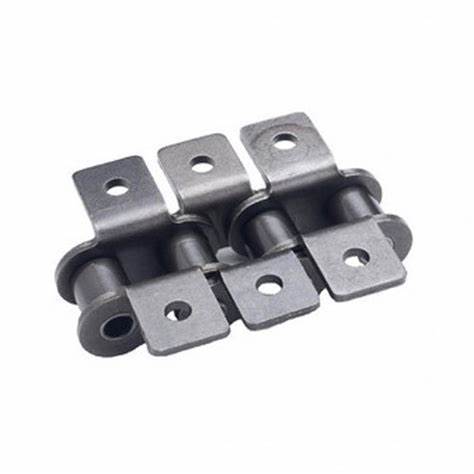

Roller Chain with SA Attachment

SA-1/M1(One Side)

SK-1/M1(Two SIde)

DIN ISO Chain No.	ANSI Chain No.	P	G	C	F	T	d4
		mm	mm	mm	mm	mm	mm
08ASS	40SS	12.7	9.5	12.7	19.05	1.5	3.4
10ASS	50SS	15.875	12.7	15.9	25.25	2.03	5.5
12ASS	60SS	19.05	15.9	18.3	29.33	2.42	5.5
16ASS	80SS	25.4	19.1	24.6	34.7	3.25	6.8
20ASS	100SS	31.75	25.4	31.8	43.3	4	9.2
24ASS	120SS	38.1	28.6	36.5	51.6	4.8	9.8
28ASS	140SS	44.45	34.9	44.5	62	5.6	11.4
32ASS	160SS	50.8	38.1	50.8	69.85	6.4	13.1
*06BSS		9.525	8	9.52	13.5	1.3	3.5
08BSS		12.7	9.5	13.35	18.9	1.6	4.5
10BSS		15.875	14.3	16.5	22.95	1.7	5.3
12BSS		19.05	16	21.45	28.6	1.85	6.4
16BSS		25.4	19.1	23.15	34	3.1	6.4

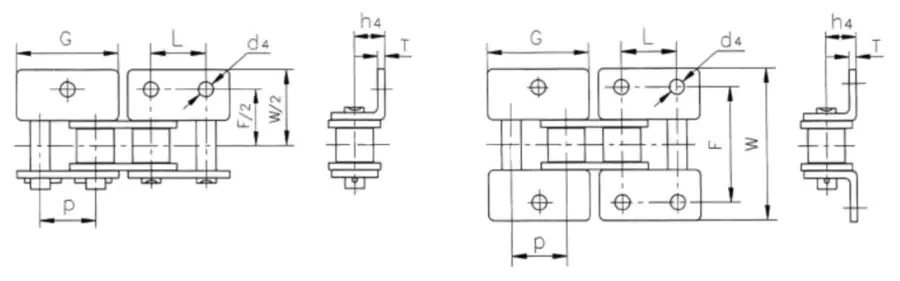

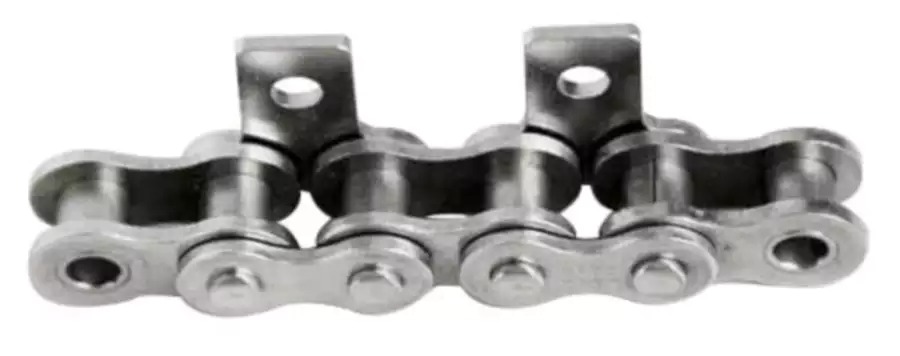

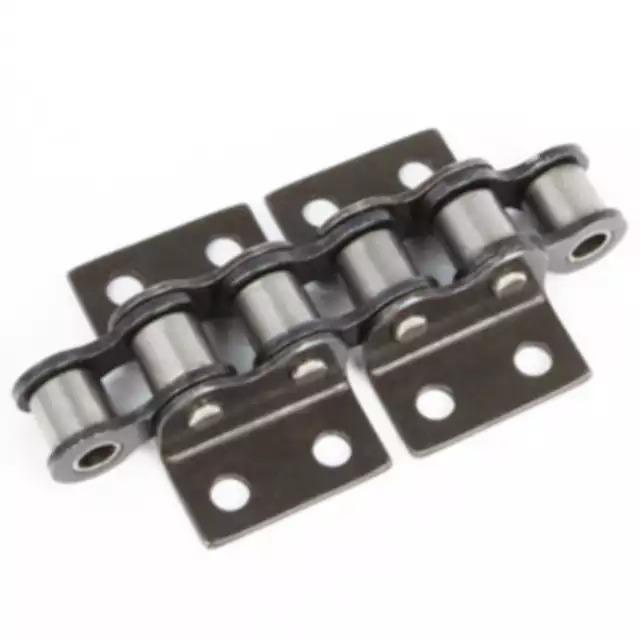

Roller Chain with WA WK Attachment

WA-1

WK-1

DIN ISO Chain No.	ANSI Chain No.	P	G	L	F	W	T	h4	d4
		mm	mm	mm	mm	mm	mm	mm	mm
08ASS	40SS	12.7	23	12.7	25.4	35.6	1.5	7.9	3.4
10ASS	50SS	15.875	28.8	15.875	31.8	46.8	2.03	10.3	5.5
12ASS	60SS	19.05	34.65	19.05	38.1	56.4	2.42	11.9	5.5
16ASS	80SS	25.4	45.9	25.4	50.8	73.2	3.25	15.9	6.8
20ASS	100SS	31.75	57.65	31.75	63.5	89.8	4	19.8	9.2
08BSS		12.7	24	12.7	25.4	36.4	1.6	8.9	4.3
10BSS		15.875	29.58	15.875	31.8	44.6	1.7	10.31	5.3
12BSS		19.05	34.05	19.05	38.1	52.4	1.85	13.46	6.4
16BSS		25.4	46.4	25.4	50.8	72.6	3.1	15.88	6.4

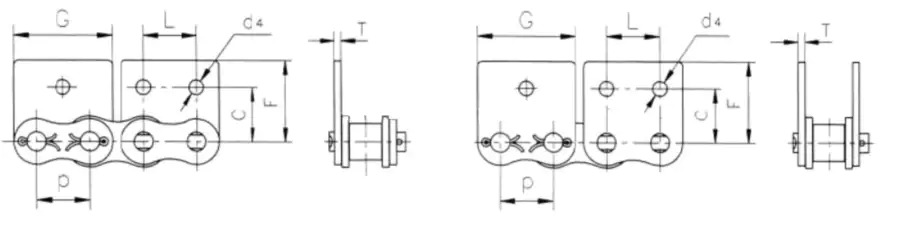

Roller Chain with WSA WSK Attachment

WSA-1

WSK-1

DIN ISO Chain No.	ANSI Chain No.	P	G	L	C	F	T	d4
		mm	mm	mm	mm	mm	mm	mm
08ASS	40SS	12.7	23	12.7	12.7	17.4	1.5	3.4
10ASS	50SS	15.875	28.8	15.875	15.9	23.05	2.03	5.5
12ASS	60SS	19.05	34.65	19.05	18.3	28.86	2.42	5.5
16ASS	80SS	25.4	45.9	25.4	24.6	35.45	3.25	6.8
20ASS	100SS	31.75	57.65	31.75	31.8	44	4	9.2
08BSS		12.7	23.3	12.7	13.35	18.9	1.6	4.5
10BSS		15.875	29.58	15.875	16.5	22.95	1.7	5.3
12BSS		19.05	34.05	19.05	21.45	28.6	1.85	6.4
16BSS		25.4	46.4	25.4	23.15	34	3.1	6.4

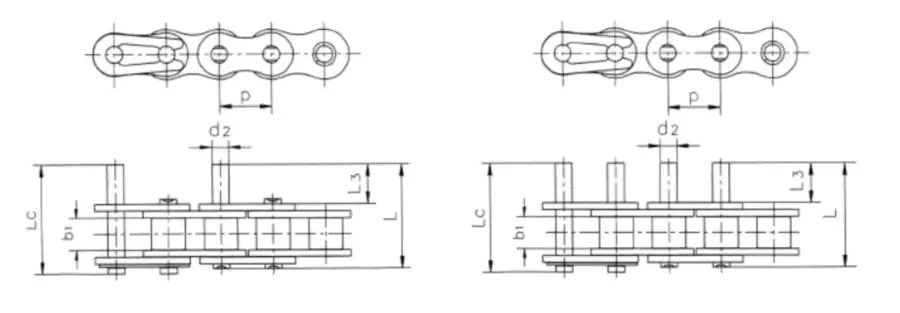

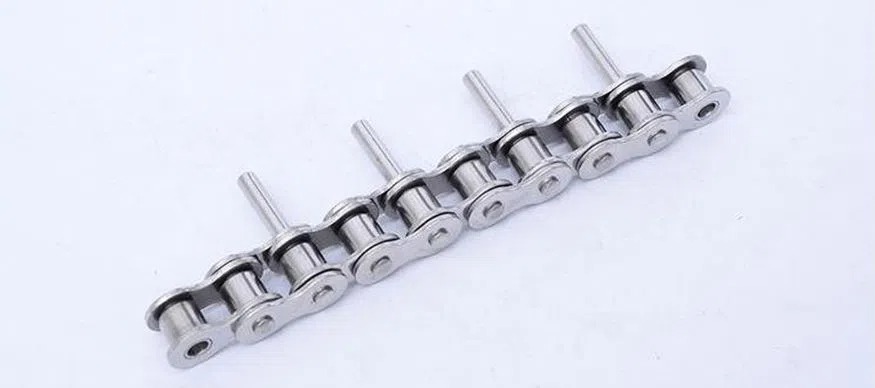

Roller Chain with D-1 Attachment

DIN ISO Chain No.	ANSI Chain No.	P	b2	d2	L3	L	Lc
		mm	mm	mm	mm	mm	mm
06CSS	35SS	9.525	4.77	3.58	9.5	20.8	21.6
08ASS	40SS	12.7	7.85	3.96	9.5	25.1	26.2
10ASS	50SS	15.875	9.4	5.08	11.9	31.3	33.1
12ASS	60SS	19.05	12.57	5.94	14.3	38.6	40.6
16ASS	80SS	25.4	15.75	7.92	19.1	50.3	53.3
20ASS	100SS	31.75	18.9	9.53	23.8	61.8	66.1
24ASS	120SS	38.1	25.22	11.1	28.6	76.4	80.4
28ASS	140SS	44.45	25.22	12.7	33.3	84.8	89.4
32ASS	160SS	50.8	31.55	14.27	38.1	99.6	104.4
08BSS		12.7	7.75	4.45	9.5	25.1	26.6
10BSS		15.875	9.65	5.08	11.9	30.1	31.5
12BSS		19.05	11.68	5.72	14.3	35.4	37.1
16BSS		25.4	17.02	8.28	19.1	53	54.3
