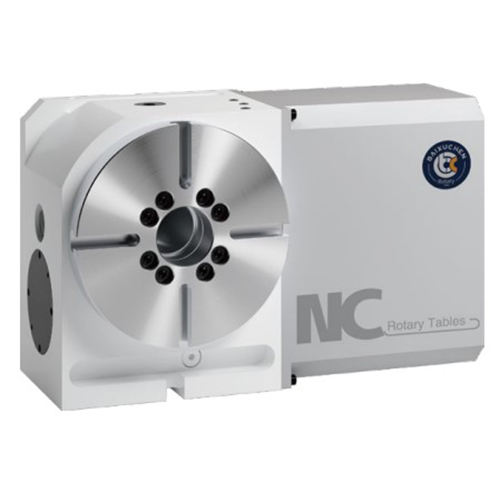

Product Model | WT-210 | Segmentation accuracy | 20 ″ |
Disk Diameter | Φ210mm | Repeat positioning | 4 ″ |
Center Diameter | Φ55H7mm | Locking Mode | 45kg.m |
Spindle Hole | Φ50mm | Servo Motor | β8is;HF-104 |
Center Height | 160mm | Speed Reduction Ratio | 1:72 |
T-Slot Width | 12H7mm | Maximun Speed | 55.5r.p.m |
Positioning Button | 18H7mm | Allowable Work Inertia | 8.3kg.cm.sec2 |
Min lncrement | 0.001° | Allowable Cutting Torque | 18Kg.m |
Weight（Without Motor） | 70Kg | Vertical | 80KG |
Horizontal | 160KG | Tailstock applied | 160KG |
