Ansi C55 Conveyor Cast C Combination Chain

Raydafon Guoup's Ansi C55 Conveyor Cast C Combination Chain is a durable, high-performance solution for industrial conveying systems, engineered with superior materials for reliability and efficiency. It empowers manufacturers to enhance productivity and reduce downtime, standing out with its robust design and trusted quality.

Send Inquiry

Product Description

Ansi C55 Conveyor Cast C Combination Chain

Product Description

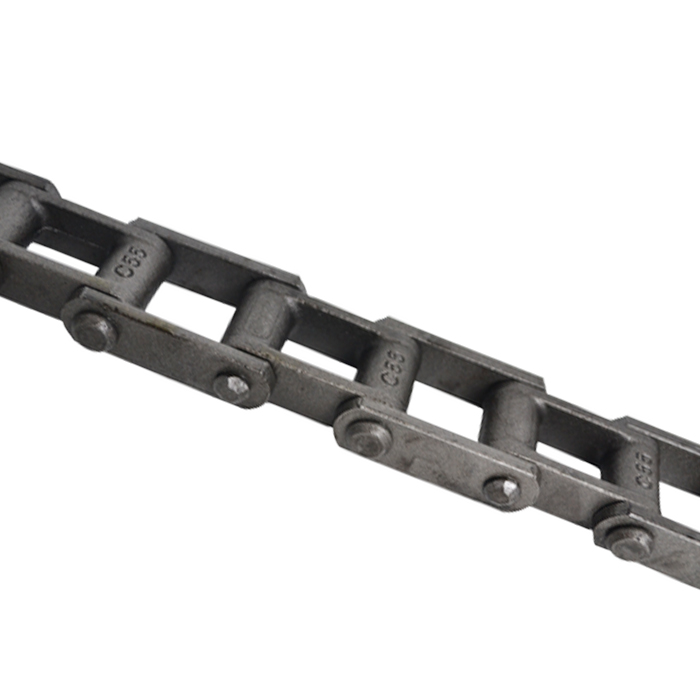

C55 Conveyor Chain

C55 conveyor chain is categorized as a cast combination chain. This C55 conveyor chain is a high quality, durable, and long lasting conveyor chain that is manufactured using high quality components. C55 chain is used in a wide range of applications including; bucket elevators, flight conveyors, forest products, grain handling, sugar processing, and more! C55 combination chain links are manufactured to be symmetrical which means that this chain can travel in either direction. This C55 conveyor chain has the capability of conveying both abrasive and non-abrasive materials which greatly broadens its range of applications that it can be used in. Typically this chain is supplied as cottered construction furnished with pin heads all on the same side, but riveted construction is available upon request. We also offer a full line of C55 attachments, sprockets, and other accessories. For pricing and availability please contact us and we will be happy to assist you.

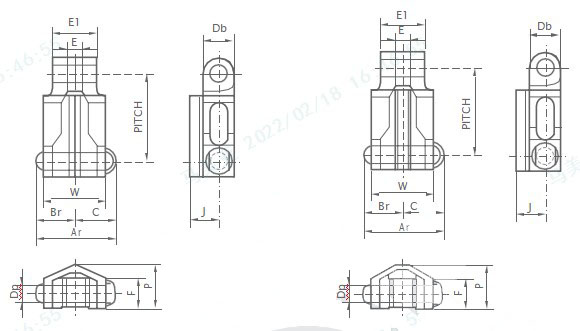

* Chain Number: C55
* Pitch (P): 1.631"
* Overall Width Cottered (C): 2.060"
* Overall Width Riveted: 1.970"
* Pin Diameter (E): 0.375"
* Sidebar Height (F): 0.750"
* Barrel Diameter (H): 0.720"
* Head Of Pin To Center Line (J): 0.970"
* End Of Pin To Center Line Cottered (K): 1.090"
* End Of Pin To Center Line Riveted: 1.000"
* Sidebar Thickness (T): 0.190"
* Maximum Allowable Sprocket Face (A): 0.690"
* Barrel Length (X): 1.250"
* Ultimate Strength: 12,150 LBS
* Working Load: 1,400 LBS
* Links Per 10ft Box: 74
* Weight Per Foot: 2.2 LBS
