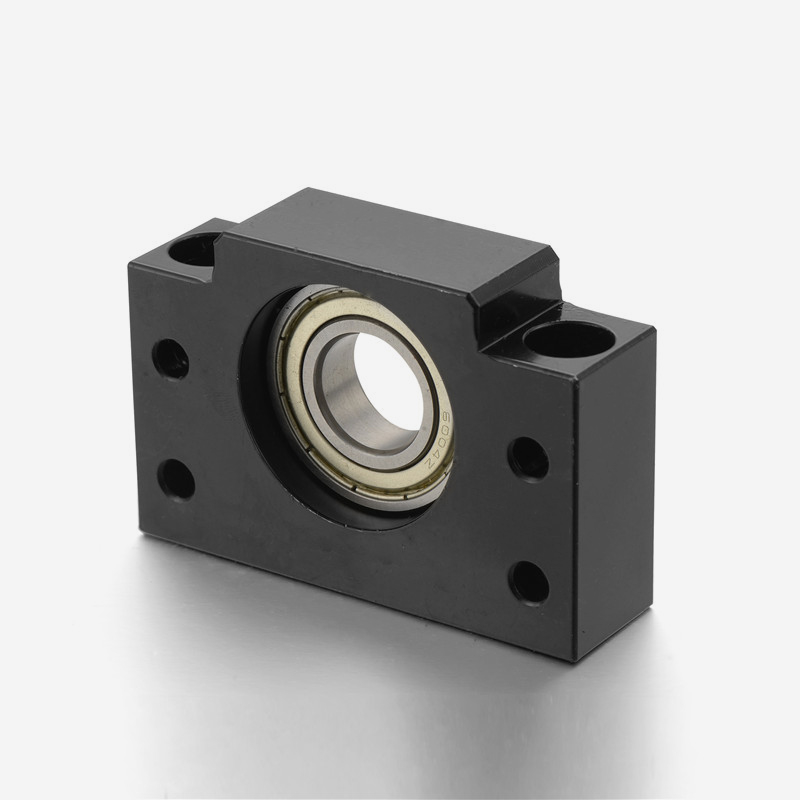

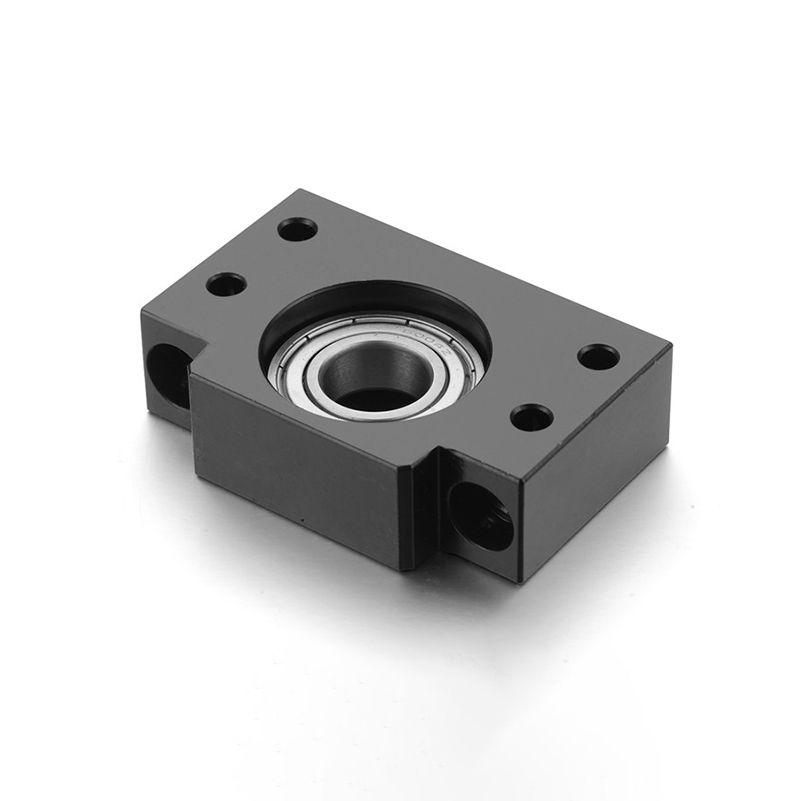

BF Series Flange Nut Mount Ball Screw Bracket for Ball Screw Router BF10 BF12 BF15 BF17 BF20 BF25 BF30 BF35 BF40

Products Description

Stable support, precise positioning

Ball Screw Brackets are high-quality support components designed specifically for ball screw systems. They are used to fix and support ball screws, ensuring their stability and accuracy in high-precision motion control applications. Suitable for various industrial automation equipment, machine tools, robots, and precision measuring instruments, it is a key component for achieving efficient and reliable transmission.

Key features

High strength materials: ---Made of high-quality alloy steel or cast iron, it has excellent mechanical strength and durability. ---After heat treatment process, the anti fatigue performance is enhanced and the service life is extended. Precision machining: ---High precision CNC machining ensures consistency in installation hole positions and surface smoothness. ---Precise fit tolerance, providing stable support effect, reducing vibration and noise. Diversified design: ---Multiple models and sizes are available, suitable for ball screws of different diameters and lengths. ---Supports horizontal, vertical, and inclined installation, flexibly adapting to various application scenarios. Easy to install: ---Standardized design, simplified installation process, reduced assembly time and cost. ---Built in lubrication channel for easy maintenance and upkeep, ensuring long-term stable operation. Anti corrosion treatment: ---The surface is treated with electroplating or painting, effectively resisting moisture, chemicals, and other corrosive factors. ---Suitable for harsh environments such as humidity, acidity, and alkalinity, ensuring long-term reliable use.

①Housing ②Bearing ③Snap ring

--lt is used double pressed steel cages for Black Oxide type support units.

---it is used double plastic cages for Electroless Nickel Plating type support units ---All of bearings use Japan's brand bearings.

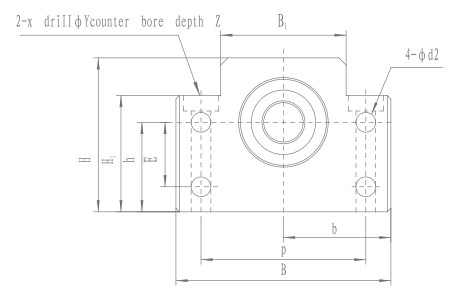

Model No	Dimensions
Model No		d1	L	B	H	b±0.02	h±0.02	B1	H1	E
BF 10	BF 10	20	60	39	30	22	34	32.5	15
BF 12	BF 12	20	60	43	30	25	34	32.5	18
BF 15	BF 15	20	70	46	35	28	40	38	18
BF 17	BF 17	23	86	64	43	39	50	55	28
BF 20	BF 20	26	88	60	44	34	52	50	22
BF 25	BF 25	30	106	80	53	48	64	70	33
BF 30	BF 30	32	128	89	64	51	76	78	33
BF 35	BF 35	32	140	96	70	52	88	79	35
BF 40	BF 40	37	160	110	60	60	100	90	37


P	d2	X	Y	Z
46	5.5	6.6	10.8	5
46	5.5	6.6	10.8	1.5
54	5.5	6.6	11	6.5
68	6.6	9	14	8.5
70	6.6	9	14	8.5
85	9	11	17.5	11
102	11	14	20	13
114	11	14	20	13
130	14	18	26	17.5

Application

Application area

Linear Guideway is widely used in multiple industries, including but not limited to:

---Machine tools: CNC machine tools, machining centers, etc., ensure precise positioning of cutting tools and workpieces.

---Automation equipment: robot arms, conveyor systems, etc., providing stable linear motion.

---Electronic manufacturing industry: semiconductor production equipment, SMT surface mount machines, etc., ensuring high-precision assembly and testing.

---Medical devices: imaging diagnostic equipment, surgical robots, etc., achieve precise movement control.

--Packaging machinery: packing machines, palletizing machines, etc., to improve production efficiency and product quality.
