JL7 Series Ratio 537.3:1 Worm Gear Planetary Motor Slewing Drive Gearbox Reducer for Solar Panel Tracking System

Raydafon Group's JL7 Series Ratio 537.3:1 Worm Gear Planetary Motor Slewing Drive Gearbox Reducer delivers precise, reliable torque for solar panel tracking systems, ensuring optimal energy capture. Crafted with durable materials and advanced technology, it offers superior performance and long-lasting efficiency, ideal for renewable energy projects. Experience enhanced system reliability and peace of mind with this innovative solution.

Send Inquiry

Product Description

JL7 Series Ratio 537.3:1 Worm Gear Planetary Motor Slewing Drive Gearbox Reducer for Solar Panel Tracking System

Products Description

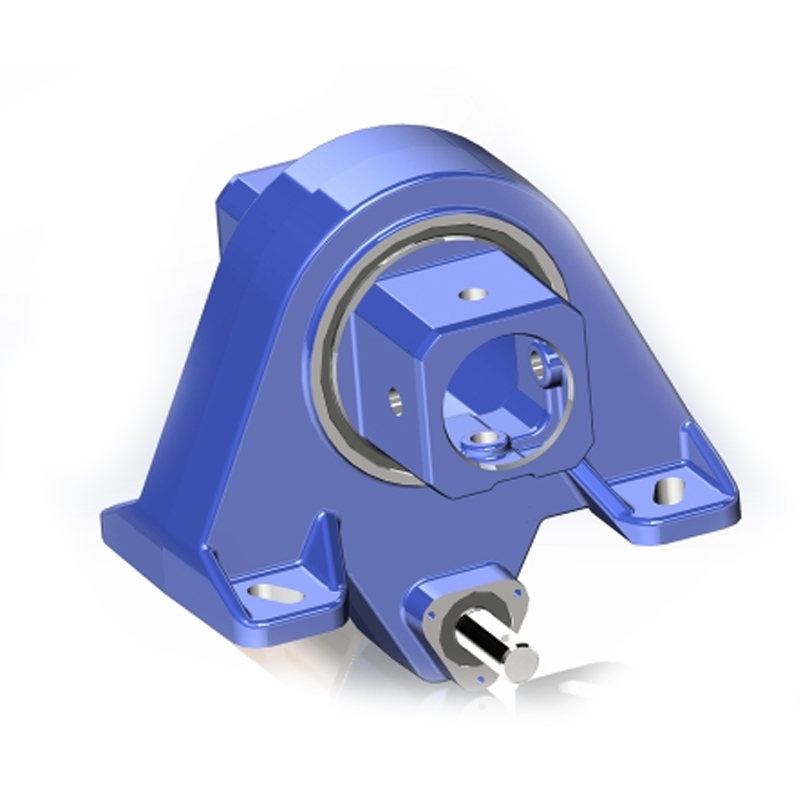

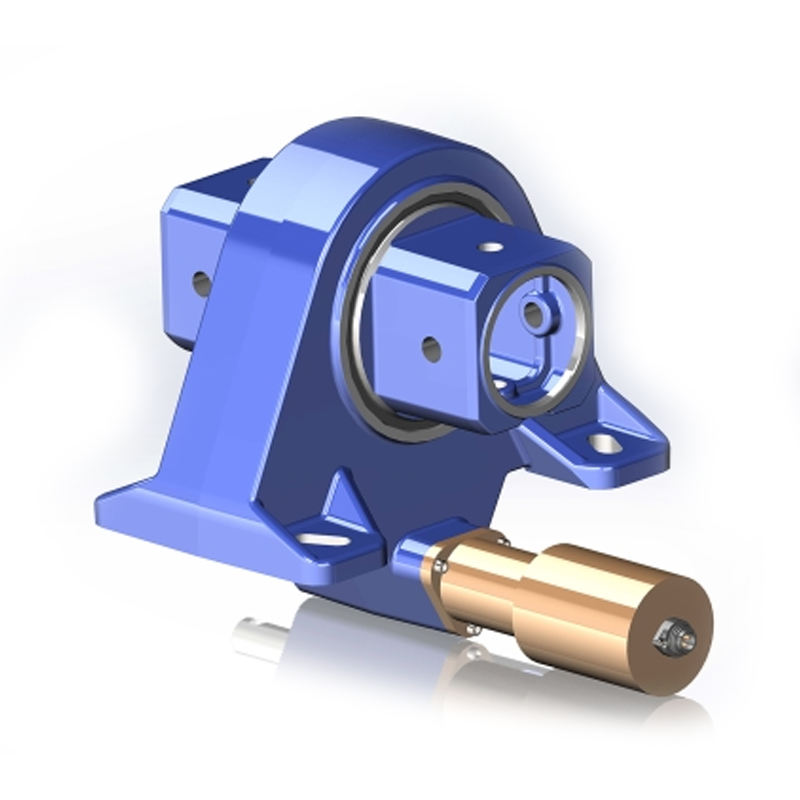

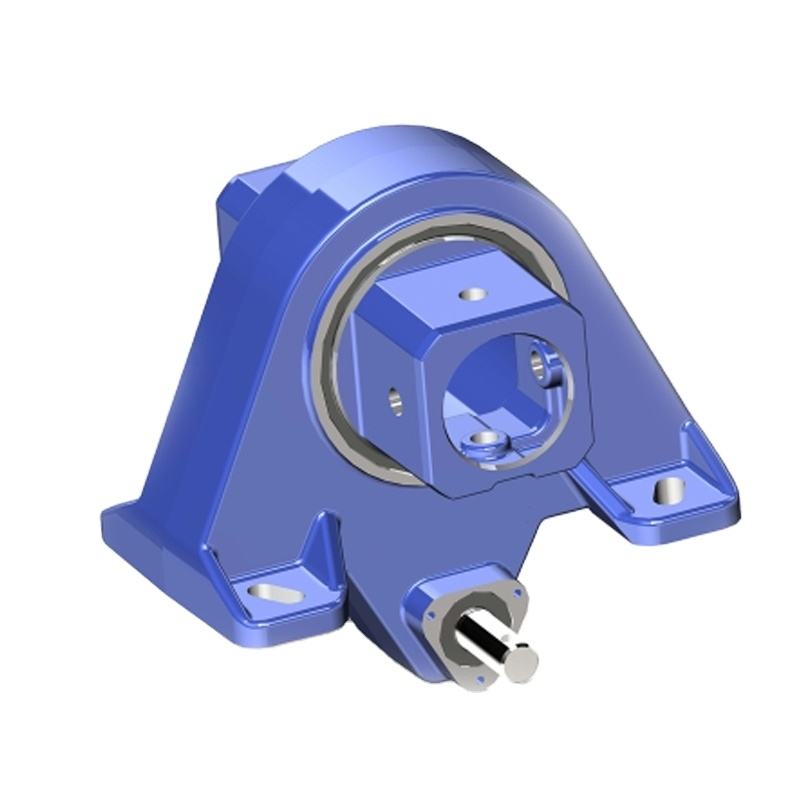

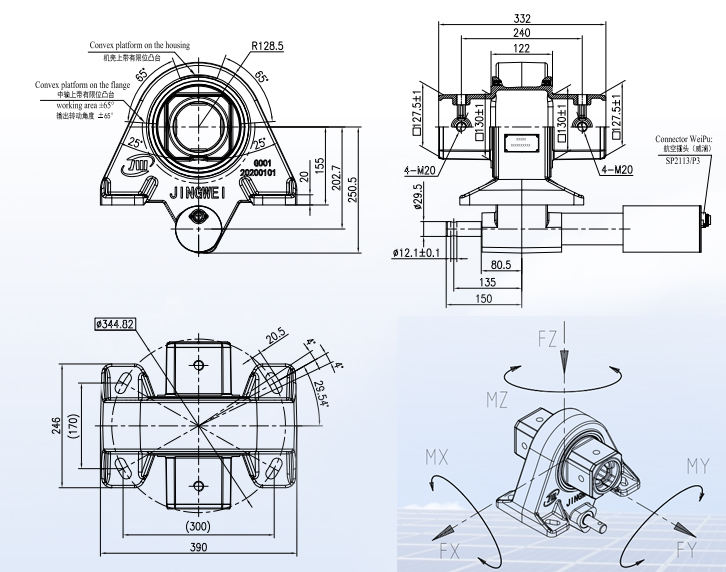

JL7 Slewing Drive

Product features:
1. The product adopts a blind hole design and a skeleton oil seal structure with reliable sealing performance. The sealing area can avoid direct sunlight, effectively prevent dust and water and the protection level can reach IP65. It is suitable for outdoor use and can output with single or double flanges.
2. Using specialized machine tools and equipment to produce torus worm gears with multiple teeth in contact, transmitting greater torque and able to withstand greater axial, radial and overturning forces.
3. The product design adopts universal dimensions both domestically and internationally making it convenient for later
replacement.
Application scope:
--Mainly used for the rotation of the pitch direction in solar tracking systems, it can also be applied to the rotation of certain special engineering machinery and industrial equipment.
--The rotation of the pitch position of solar power generation systems such as flat single axis, inclined single axis, slot type
power generation and concentrated solar power generation.
--Industrial equipment such as automatic feeding machines.

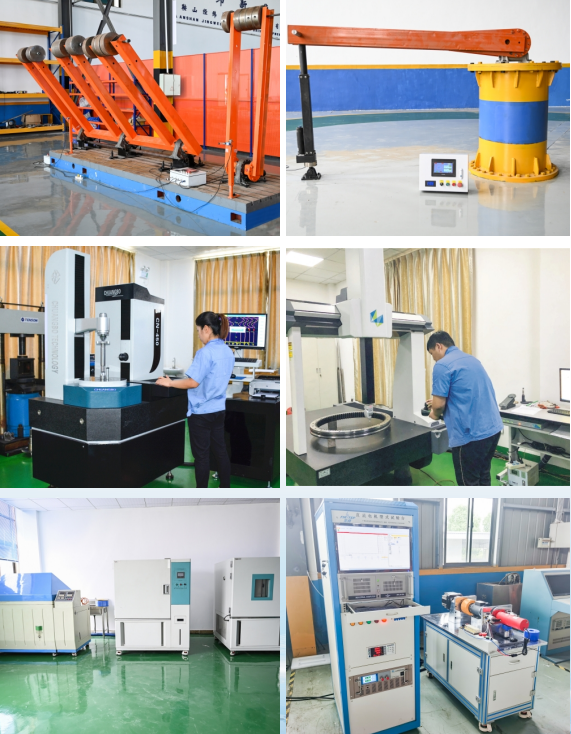

--First class german team --Customizing and individual --Top manufacture machine and test equipments --All products and parts are traceable andcomplete testing reports can be provided by JW --JL7 Series Products have been using in manyprojects for years ,great response received

For more details, please click here to contact us！

Basic Parameters

Slewing Drive Caplility
Ratio of worm gear	537.3:1
Tracking precision	≤0.25°
IP class	IP65
Temperature	-40-+80℃
Holding torque MY	34000N.m
Axial Static Load FY	Coa 48KN
Axial Dynamic Load FY	Ca 26KN
Radial Static Load FX FZ	Cor 87KN
Radial Dynamic Load FX FZ	Cr 45.8KN
Tilting Moment Torque MX MZ	Com 20KN.m
Planetary Reducer Motor Performance Date
Rated Voltage	24VDC
Rated Current	≤7.2A
Gear Ratio	125.3:1
IP Class	IP65
Temperature	-30-+80℃

Slewing Drive Performance Data
Nominal Output Speed	0.013rpm
Nominal Output Torque	13KN.m
Output torque	Output speed	efficiency	Motor Current
Nominal torque:13KKN.m Continuous operation Most operating conditions	0.013rpm	about 25%	about 7A
Large torque:20KN.m Continuous operation for 10 minute It should not exceed 5% of the total	0.0115rpm	about 26%	about 9A
Limited Torque: 26KN.m Continuous operation for 2 minute Should be rare	0.01rpm	about 26%	about 11.3A
Warning: instantaneous torque is no safety recommended
