Product Description

RD Series Double Enveloping Worm Gear Box Speed Reducer Gearbox for Steel Continuous Casting Machine

Product Description

RD Series Double Enveloping Worm Gear box Speed Reducer Gearbox for Steel Continuous Casting Machine

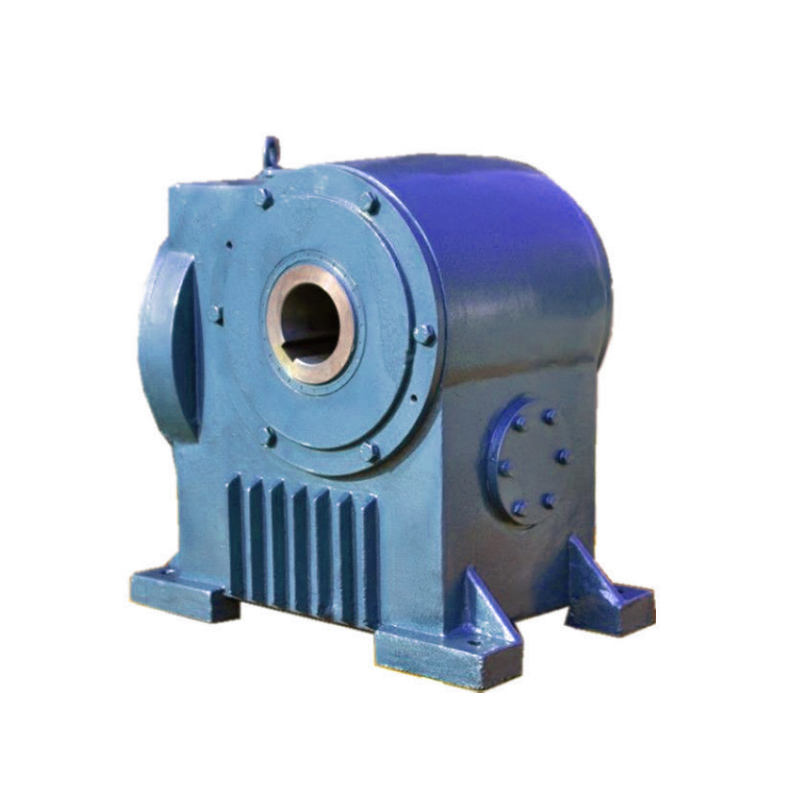

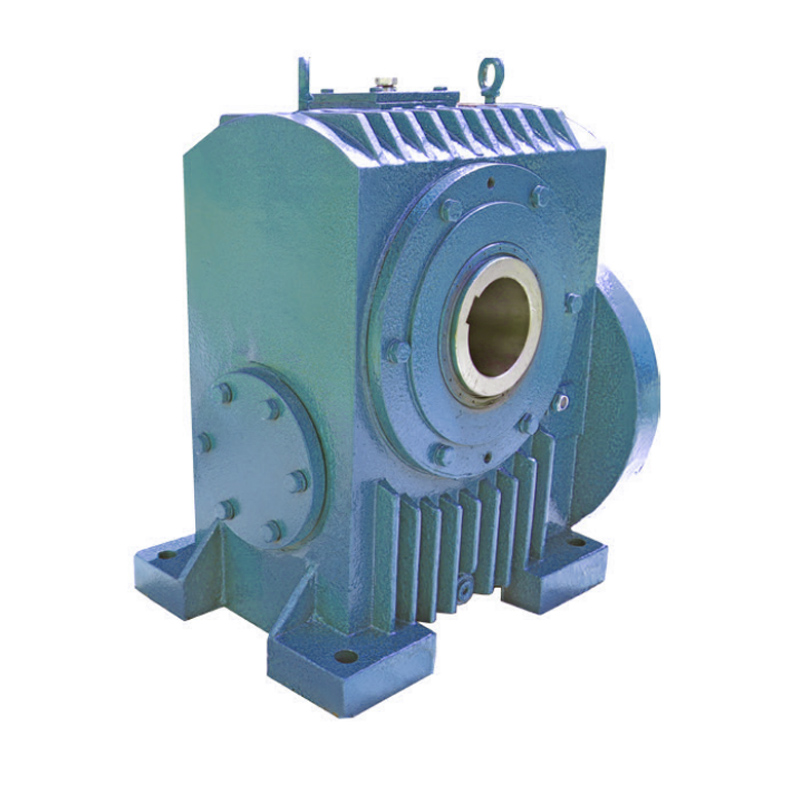

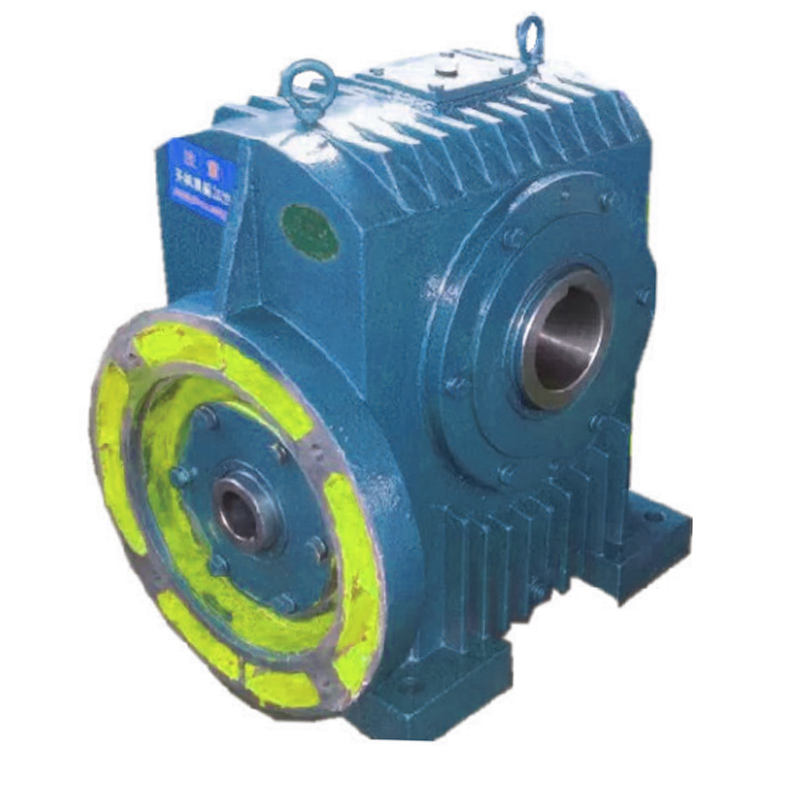

The RD series reducer is a two-stage reducer composed of gear transmission and worm gear transmission. The worm gear pair is produced using professional secondary enveloping worm gear transmission technology. It has a large load-bearing capacity, compact structure, reasonable size, and is widely used in metallurgical steel rolling mills for straightening machines, ingot rod storage devices, and vibration devices. Adopting a shaft mounted structure, it is easy to connect with working machinery. The box body is made of resin sand casting, which is compact in structure, beautiful in appearance, and the transmission ratio varies according to user requirements.

Model	Center Distance mm	Transmission rate	Input power KW	Input revolving speed rpm	Transmission efficiency %	Oil temperature of permissible work ℃	Purpose
RD-11-4.5-III	125	4.5	11	1500	90	10-100	1*
RD-11-4.5-IIIA	125	4.5	11	1500	90	10-100	1
RD-11-7.5	125	7.5	11	1750	90	10-100	1*
RD-11-10.5	125	10.5	11	1750	90	10-100	1
RD-11-12.5	125	12.5	11	1750	89	10-100	1
RD-4-240	180	240	4	1500	63	10-100	2*
RD-5.5-200	200	200	5.5	1500	66	10-100	3*
RD-5.5-280	200	280	5.5	1500	60	10-100	3*

*1:Vibration device

2.Storage device of dummy bar

3.Tension leveler
