TPS/PWS Series Planar Double Enveloping Worm Gear box Speed Reducer Gearbox

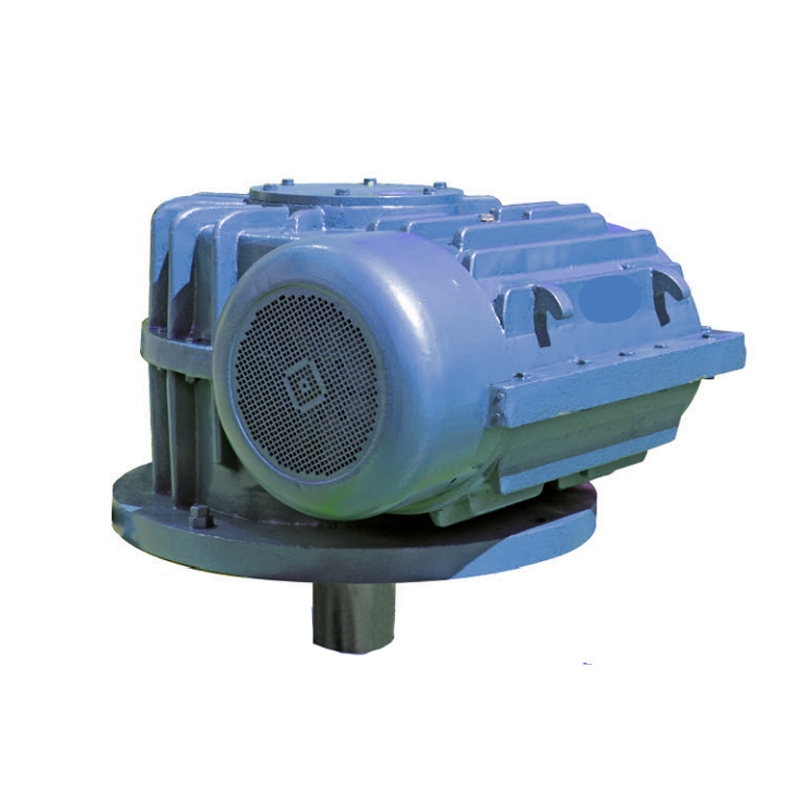

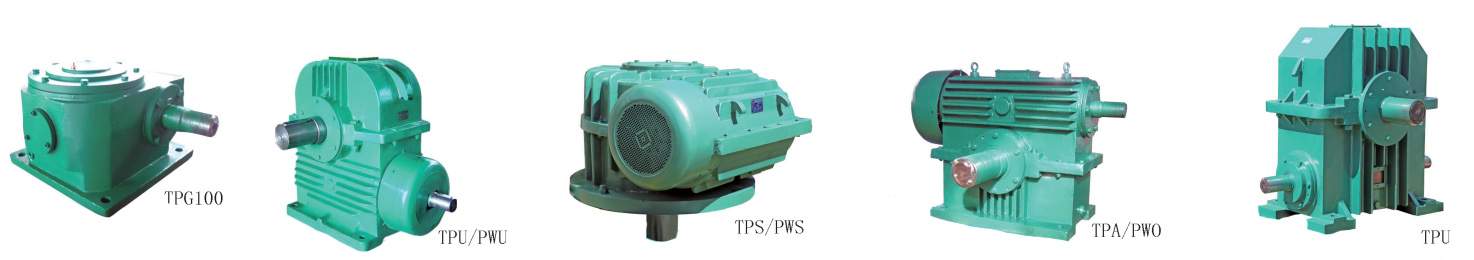

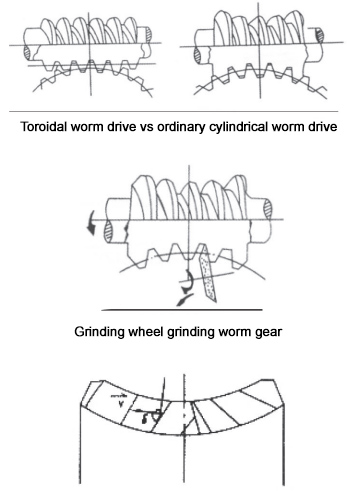

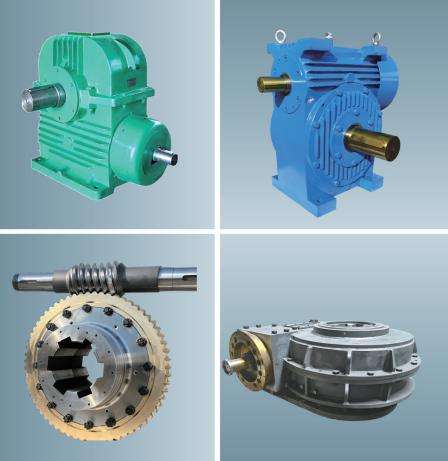

The planar secondary enveloping toroidal worm drive is a new type of worm drive device that has won the National Second Prize Invention Award. The planar secondary enveloping worm gear pair is formed by enveloping the tooth surface of the toroidal worm gear through relative circular motion with a plane as the mother surface, and then enveloping the tooth surface of the worm gear through relative motion with the tooth surface of the worm gear as the mother surface

Features

Saving energy and reducing consumption

Long service life

Carrying capacity strong

More contact teeth

Mesh smooth and low noise

High quality meterial and heat treatment method

1. The worm gear is made of alloy steel 40Cr, 42CrMo, 38CrMoAI quenching and ion nitriding treatment. After hardening treatment, the tooth surface is precisely ground, with high hardness (HRC>58), low roughness (Ra>0.8), high tooth profile accuracy, and smooth surface

2. The meshing between the worm gear and the worm wheel is a multi tooth contact, with a large tooth contact area
and instantaneous double line contact. The total length of the contact line is long, and the tooth contact area can reach more than 70% 3. Due to the fact that the worm gear is a toroidal worm gear, it has a large number of teeth that mesh with the worm gear at the same time

4. The machining process is highly consistent with the forming principle, and the transmission accuracy is high.

5. The comprehensive curvature radius of the meshing surface is large.

6. The angle between the contact wire and the relative velocity direction is large, which makes it easy to form a dynamic pressure oil film and has good retention, reducing tooth wear

7. The worm gear is made of tin bronze ZCuSn10Pb1 centrifugal casting, which is wear-resistant. In summary, compared
with ordinary worm gear pairs, planar secondary enveloping toroidal worm gear pairs have higher load-bearing capacity, higher transmission efficiency, and longer service life.
