Planetary Gearboxes for Wheel Drive

Planetary Gearboxes for Wheel Drive

Planetary Gearboxes for Wheel DriveProduct DescriptionPlanetary GearBoxes For Excavators Slew Drive And Track DriveThe 600 series planetary wheel drives by Ever-Power Group Co.,Ltd. enjoy following features:Output torque Range: 1750 … 60000 N.mGear Ratios: i=5.8 … 160Support: rotating housing flange......

Planetary Gearboxes for Wheel Drive

Product Description
Planetary Gearboxes for Wheel Drive

Planetary GearBoxes For Excavators Slew Drive And Track Drive


Planetary Gearboxes for Wheel Drive

The 600 series planetary wheel drives by Ever-Power Group Co.,Ltd. enjoy following features:

  1. Output torque Range: 1750 … 60000 N.m
  2. Gear Ratios: i=5.8 … 160
  3. Support: rotating housing flange to fit wheels and drums
  4. Applicable motors: axial piston hydraulic motors, Hydraulic orbit motors
  5. Hydraulic motor options: Pressure relief valve, Overcenter valve on request
  6. Brake: hydraulic released parking brake on request
Track drives
Max. torque
Range of ratios
Max. Input speed
Braking torque
Design
Type
N.m
( i )
(rpm)
(N.m)
EP601 L1A
1750
5.77
1000
450-600
A
EP603 L2A
4000
19-23-32-40
3000
210
A
EP603 L2B
4000
19-23-32-40
3000
210
B
EP602 L2
5000
12.4-25.8
3000
—–
B
EP605 L2
7000
22-27-30-42-53
3000
220-310
B
EP606 L2, L3
12000
30-35-43-68-79
3000
300-800
B
EP607 L2, L3
17000
33-75-108
3000
300-600
B
EP609 L2, L3
23000
33-142
3000
300-600
B
EP610 L2, L3
30000
20-111
3000
300-800
B
EP611 L2, L3
36000
41-47
3000
300-800
B
EP613 L3
45000
108
3000
300-800
B
EP615 L3
60000
108
3000
300-1000
B
Planetary Gearboxes for Wheel Drive

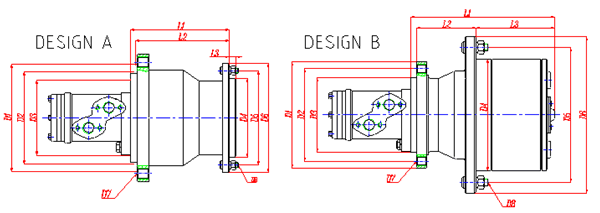

Wheel drivesDimensions
D1D2D3D4D5D6D7D8L1L2L3Design
EP601 L1A260230200152.4203.223015n=8M14 *1.5 n=824519510A
EP603 L2A270230190160205280M6   *2 n=8M18*1.5 n=623017525A
EP603 L2B270230190200245280M6   *2 n=8M18*1.5 n=623072128B
EP602 L2190.5165.1133.35200241.3279.45/8”-11 UNC n=81/2”-13 UNC n=9261105.9145B
EP605 L2270230190220275310M16*2 n=8M20*1.5 n=626072176B
EP606 L2, L3330300270280335370M16*2 n=18M22*1.5n=10330115190B
EP607 L2, L3380285240320380410M20*2.5 n=20M18*1.5 n=2040882298B
EP609 L2, L3380285240350400435M20*2.5 n=20M20*1.5 n=1641391303B
EP610 L2, L3375340300350400435M20*2.5 n=16M22*1.5 n=1642591303B
EP611 L2, L3425325290410455490M20*2.5 n=24M20*1.5n=24498110365B
EP613 L3425325280410455490M20*2.5 n=24M20*1.5n=24510110380B
EP615 L3500460420460510550M20*2.5 n=24M20*1.5n=24565130415B

If you want any more details, please do not hesitate to ask!

Ever-Power Group Co., Ltd. founded in 1998, is a professional manufacturer and supplier of all kinds of planetary gear box.
At present, the specifications of our EP3 Series planetary gear box, EP4 series track drives, EP7 Series selw drives, EP6 Series wheel drives, is up to over 10,000 iterms. The reduction ratio range is from 3.3 ~ 9000, the output torque range is from 500 ~ 450000N.m. More than 90% of our products exported to the United States, Europe, Australia, South America, the Middle East and Southeast Asia. The installation and dimensions of our planetary gear box are exactly the same as the ones made by well-known European and American planetary gear box manufacturer. They are interchangeable.

The company has many Taiwan-made high quality machines, such as fully automatic integrated machining center, CNC grinding machine, CNC gear machines and CNC machine tools etc. to ensure high accuracy for the parts. All of Our employees have undergone a rigorous professional training, have good skills and excellent quality. The company adopt modern computer management systems and has successfully passed ISO9001: 2000 quality system certification.

Product Name
Planetary GearBoxes For Excavators Slew Drive And Track Drive
Related Products
Planetary Gearbox Mixer
Planetary Belt Conveyor Drives
Planetary uni-axis twin output shaft speed reducers
Planetary Reduction Gearboxes
Planetary Sprocket Drives
Yaw and Pitch drive
Planetary GearBoxes For Slew Drive
Planetary Creep Drives
Torque limiters
Planetary Gearboxes For Wheel Drive
Precision Planetary Gearbox
Yaw and Pitch drive EP707AL4
Hydraulic Swing Drive Motor
Planetary Slew Drives
enhancement planetary gear boxes
Transit Mixer Gearboxes
Planetary Gear Drives
EP400T1 Track drives
Planetary GearBoxes For Construction Equipment
Planetary Wheel Drive
EP401 Track drives
Planetary GearBoxes For Excavators Slew Drive
Planetary Winch Drive
EP402T2 Track drives
Planetary Gearbox Travel Drives Wheel Drive
Planetary Track Drive
EP403W2 Winch drives
Auger Drives
Planetary Cone-Disk Variator
PLF Planetary Gearbox
EPX Heavy Planetary Gearbox
EP300 series planetary drives
Gearbox For Concrete Truck Mixer E8A
EPW Planetary Gearboxes With Foot Dimensions
Planetary speed reducers
SLP Series Planetary Speed Reducer
EPL Planetary Gearbox
Planetary geared motors
Hollow shaft output
Roller Press Planetary Gearboxes
Planetary sprocket drives
EPL double shaft Planetary gearbox
Yaw And Pitch Drive
Planetary parallel axis twin output shaft speed reducers
EPW planetary gearboxes with foot dimensions
Our Company

Ever-power is specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, pto drive shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vaccum pumps, fluid coupling, gear racks, chains, timing pulleys, udl speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers' drawings.

We provides a reliable gurantee for the product' s quality by advanced inspection and testing equipment. professional technical team, exquisite processing technology and strict control system.

In recent years, the company has been developing rapidly by its rich experience in production, adcanced managemant system , standardized management system, strong technical force. We always adhere the concept of survial by quality, and decelopment by innovation in science and technology.

Ever-power is willing to work with you hand in hand and create brilliance together!

Planetary Gearboxes for Wheel Drive
Planetary Gearboxes for Wheel Drive

Grinding Workshop

Planetary Gearboxes for Wheel Drive

CNC Teeth Machine

Planetary Gearboxes for Wheel Drive

CNC Lathe Workshop

Planetary Gearboxes for Wheel Drive

Figuring Center

Planetary Gearboxes for Wheel Drive

CNC Workshop

Planetary Gearboxes for Wheel Drive

Heat Treatment Machine

Planetary Gearboxes for Wheel Drive

3D Measurement Machinery

Planetary Gearboxes for Wheel Drive

Gear Teeth Profile Test Machines

Planetary Gearboxes for Wheel Drive

Heat Treatment Workshop

Planetary Gearboxes for Wheel Drive

Tooth Profile Workshop

Material available

Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.

Surface treatment

Blacking, galvanization, chroming, electrophoresis, color painting, ...

Heat treatment

High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...

Certifications
Planetary Gearboxes for Wheel Drive
FAQ

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products , the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.

Packing & Delivery
Planetary Gearboxes for Wheel Drive
Services

Also I would like to take this opportunity to give a brief introduction of our Ever-Power company:

Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, Sprockets ,rollar chains, bevel gear, pulleys and racks in china .

We have exported many products to our customers all over the world, we have long-time experience and strong technology support.

Some of our customer :
Italy: COMER,GB GEABOX ,SATI, CHIARAVALLI, AMA , Brevini
Germany: SILOKING ,GKN , KTS
France: Itfran, Sedies
Brazil: AEMCO ,STU
USA: John Deere , BLOUNT, Weasler, Agco, Omni Gear, WOODS
Canada: JAY-LOR , CANIMEX ,RingBall
......


-Ø Our Company with over twelve year's history and 1000 workers and 20 sales.
-Ø With over 100 Million USD sales in 2017
-Ø With advance machinery equipments
-Ø With large work capacity and high quality control, ISO certified.

.... .

you also can check our website to know for more details, if you need our products catalogue, please contact with us.
