Product Description

Sprocket Stainless Pinion Gear Set Roller Custom Metric Wheel Single Duplex Double Drive Conveyor Roller Chain Wheel Sprockets

Product Description

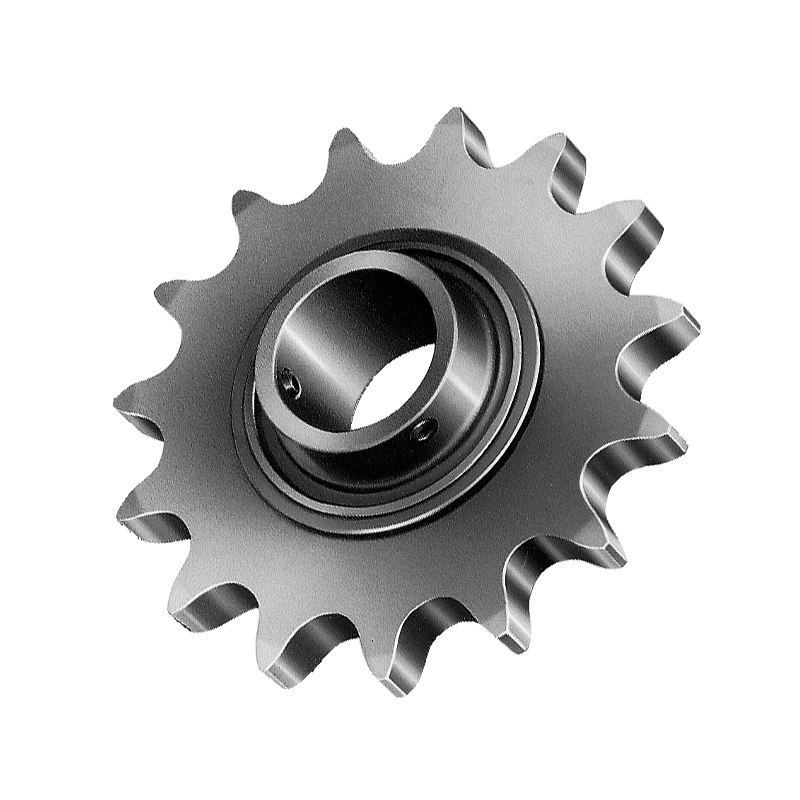

chain tensioning wheels are supplied as a set with integrated ball bearings. The bearings are sealed on both sides and lubricated for life, so they are maintenance-free. The wide inner ring ensures perfect mounting without washers. Ball race and sprocket are press-fitted to guarantee a secure, permanent connection. The sprocket is made from steel with a mechanical strength of 490-600 N/mm2.
These tensioning wheels are suitable for roller chains from size 06 B-1 to 20 B-1. Chain tensioning wheels for duplex roller
chains and roller chains to ANSI standard (DIN 8188) are available on request.

Material
Sprockets	steel St40 / St50
Ball bearing	roller bearing steel with lifetime grease filling, maintenance-free
Mounting screw	zinc plated steel
Nut	zinc plated steel

Material available	Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.
Surface treatment	Blacking, galvanization, chroming, electrophoresis, color painting, ...
Heat treatment	High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...

For more types，please click here to contact us！

Customization process 1.Provide documentation：CAD， DWG， DXF， PDF，3D model ，STEP, IGS, PRT

2.Quote：We will give you the best price within 24 hours

3.Place an order：Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization：Short delivery time

If you need to customize, please click here

Materials we can do
20CrMnTi carburization	40Cr carburization	45# Quenching modulation	Brass
Nylon	Stainless steel	Q235	Aluminum
